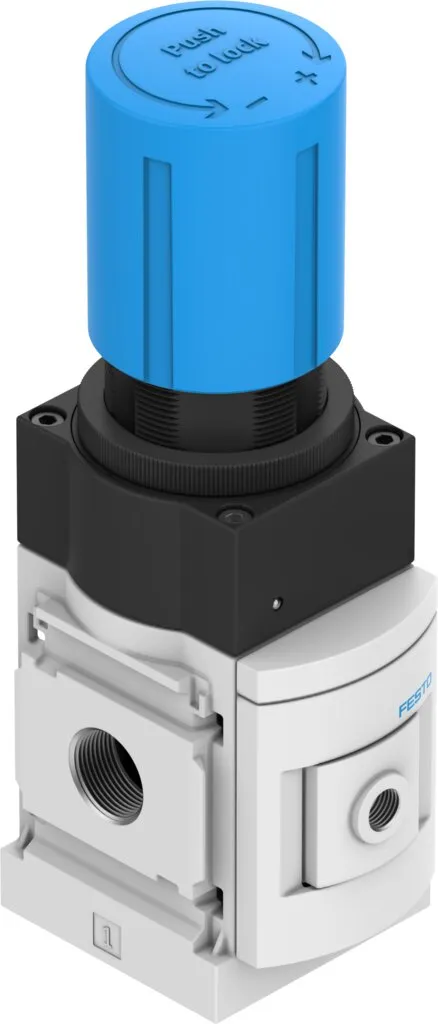

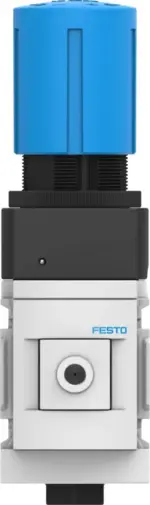

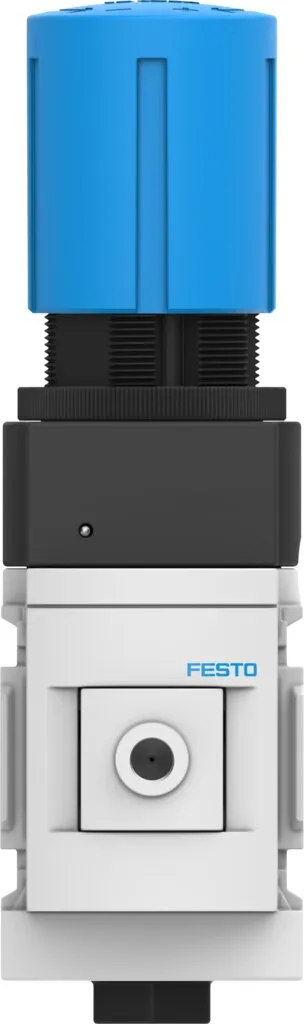

Festo MS6-LRP-1/4-D7-A8
Grid dimension 62 mm , As individual device and for manifold assembly , Manifold assembly with through air supply , Good control characteristics with minimal pressure hysteresis and primary pressure c…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 62 mm , As individual device and for manifold assembly , Manifold assembly with through air supply , Good control characteristics with minimal pressure hysteresis and primary pressure compensation , High secondary exhausting , Lockable rotary knob , Optionally with pressure sensor with display
Specification
| Size | 6 |
|---|---|
| Series | MS |
| Actuator Lock | Rotary knob with detent |
| Mounting Position | optional |
| Design | Piloted precision diaphragm control valve |
| Controller Function | Output pressure constant, With secondary venting |

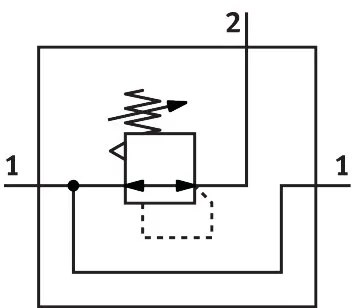

| Symbol | 00991973 |
| Pressure Gauge (Analog) Or Pressure Display (Digital) | Prepared for G1/8 |
| Operating Pressure | 1, 14 bar |
| Pressure Regulation Range | 0.1, 12 bar |
| Max. Pressure Hysteresis | 0.02 bar |
| Flow Rate Of Secondary Exhaust | 900 l/min |
| Standard Nominal Flow Rate (Standardised To Din 1343) | 3000 l/min |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium | Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], Lubricated operation not possible |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Storage Temperature | -10, 60 °C |
| Media Temperature | -10, 60 °C |
| Ambient Temperature | -10, 60 °C |
| Product Weight | 850 g |
| Type Of Mounting | Front panel mounting, In-line installation, With accessories |
| Pneumatic Connection, Port 1 | G1/4 |
| Pneumatic Connection, Port 2 | G1/4 |
| Pneumatic Connection, Port 3 | G1/4 |
| Note On Materials | RoHS-compliant |
| Material Seals | NBR |
| Material Housing | Aluminium |
