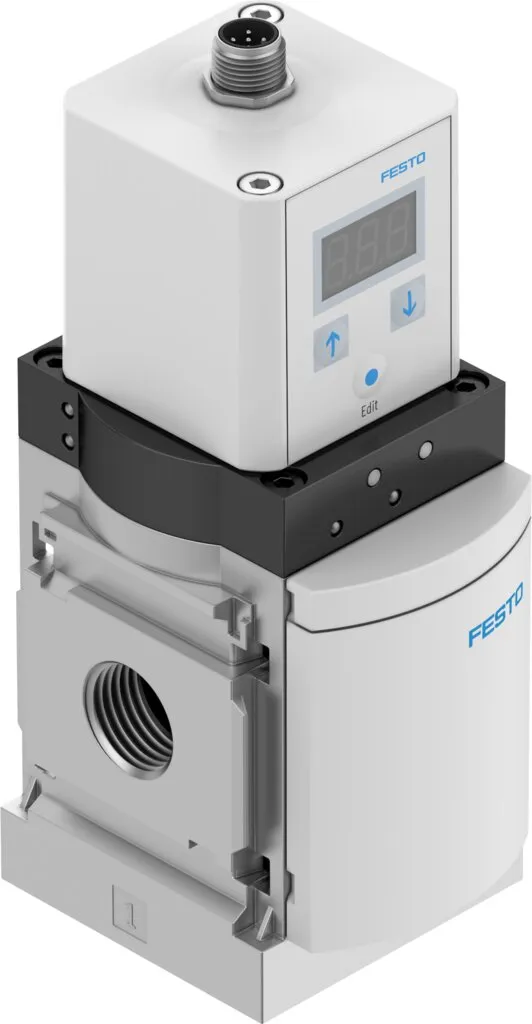

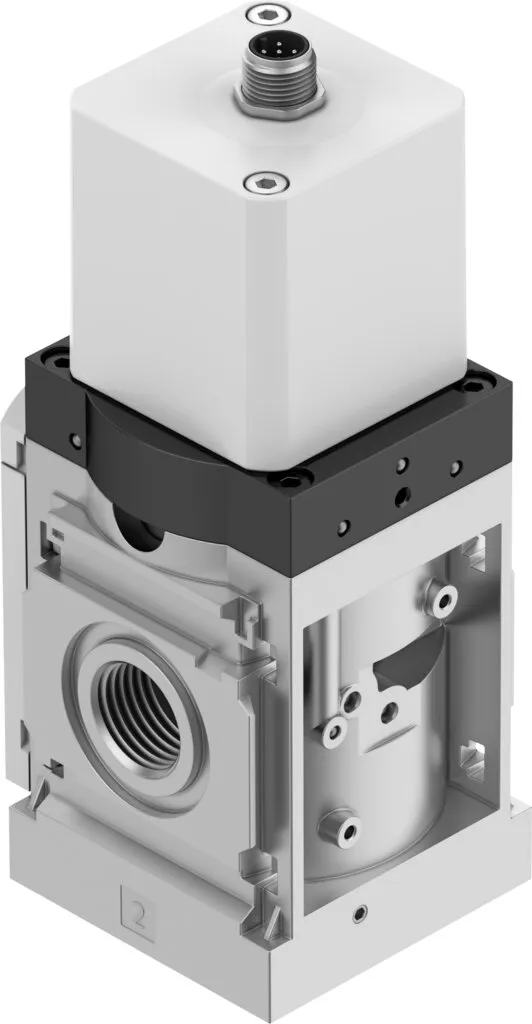

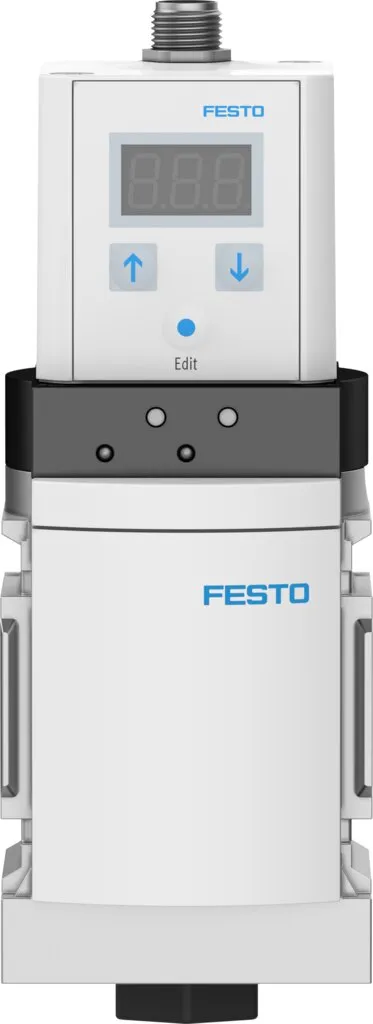

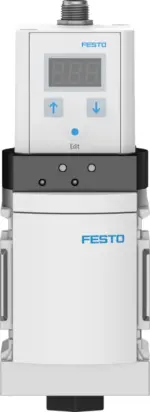

Festo MS6-LRP-1/2-PE10-VS
Grid dimension 62 mm , As individual device and for manifold assembly , Manifold assembly with through air supply , Good control characteristics with minimal pressure hysteresis and primary pressure c…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 62 mm , As individual device and for manifold assembly , Manifold assembly with through air supply , Good control characteristics with minimal pressure hysteresis and primary pressure compensation , High secondary exhausting , Lockable rotary knob , Optionally with pressure sensor with display
Specification
| Size |
6 |
|---|---|
| Series |
MS |
| Mounting Position |
optional |
| Design |
Piloted precision pressure regulator |
| Controller Function |
Output pressure constant, With secondary venting |
| Symbol |
00995303 |
| Operating Pressure |
6, 11 bar |
| Pressure Regulation Range |
0.1, 10 bar |
| Max. Pressure Hysteresis |
0.05 bar |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
9000 l/min |
| Operational Voltage Range Dc |
21.6, 26.4 V |
| Max. Electrical Power Consumption |
4.2 W |
| Max. Current Consumption |
0.16 A |
| Nominal Operating Voltage Dc |
24 V |
| Residual Ripple |
10 % |
| Signal Range Analogue Input |
0 – 10 V |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK RoHS instructions |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium |
Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], Lubricated operation not possible |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
-10, 60 °C |
| Media Temperature |
10, 50 °C |
| Ambient Temperature |
60 °C |
| Product Weight |
800 g |
| Type Of Mounting |
In-line installation, With accessories |
| Pneumatic Connection, Port 1 |
G1/2 |
| Pneumatic Connection, Port 2 |
G1/2 |
| Pneumatic Connection, Port 3 |
G1/4 |
| Note On Materials |
RoHS-compliant |
| Material Seals |
NBR |
| Material Housing |
Aluminium |
