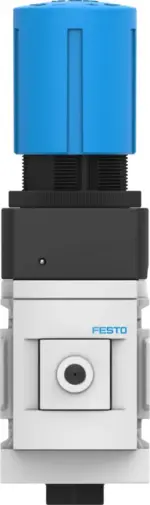

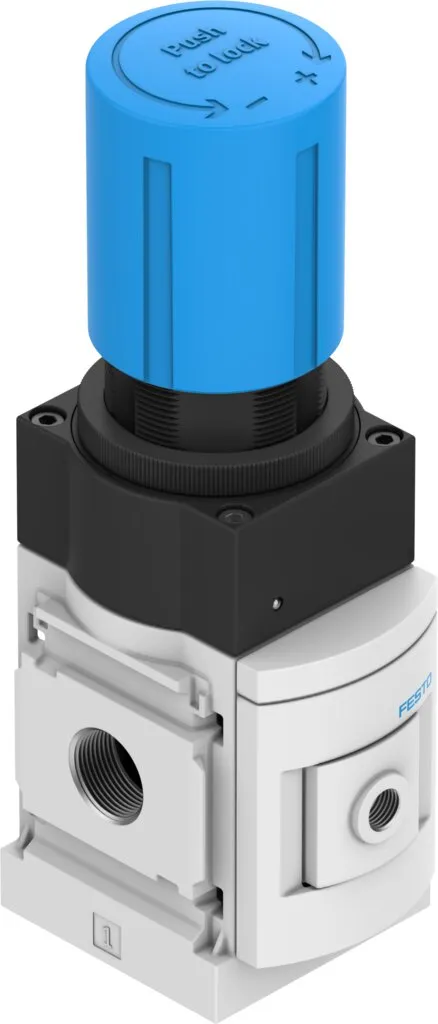

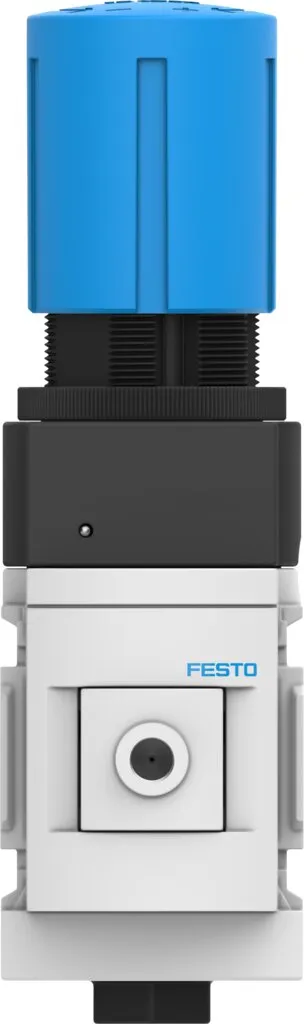

Festo MS6-LRP
Grid dimension 62 mm , As individual device and for manifold assembly , Manifold assembly with through air supply , Good control characteristics with minimal pressure hysteresis and primary pressure c…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 62 mm , As individual device and for manifold assembly , Manifold assembly with through air supply , Good control characteristics with minimal pressure hysteresis and primary pressure compensation , High secondary exhausting , Lockable rotary knob , Optionally with pressure sensor with display
Specification
| Size | 6 |
|---|---|
| Series | MS |
| Actuator Lock | Rotary knob with detent, Rotary knob with integrated lock, can be closed with accessories |
| Mounting Position | optional |
| Design | Piloted precision diaphragm control valve, Piloted precision pressure regulator |
| Controller Function | Output pressure constant, With secondary venting |
| Symbol | 00991973, 00995303, 00995326 |
| Pressure Gauge (Analog) Or Pressure Display (Digital) | Prepared for G1/4, Prepared for G1/8, Via pressure sensor, With pressure gauge, Via operational status indicator |
| Operating Pressure | 1, 14 bar |
| Pressure Regulation Range | 0.05, 12 bar |
| Max. Pressure Hysteresis | 0.02, 0.05 bar |
| Flow Rate Of Secondary Exhaust | 220, 900 l/min |
| Standard Nominal Flow Rate (Standardised To Din 1343) | 800, 9000 l/min |
| Operational Voltage Range Dc | 21.6, 26.4 V |
| Max. Electrical Power Consumption | 4.2 W |
| Max. Current Consumption | 0.16 A |
| Nominal Operating Voltage Dc | 24 V |
| Residual Ripple | 10 % |
| Signal Range Analogue Input | 0 – 10 V, 4 – 20 mA |
| Approval | c UL us – Recognized (OL) |
| Ce Mark (See Declaration Of Conformity) | To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK instructions for EMC, To UK EX instructions, To UK RoHS instructions |
| Explosion Protection Certification Outside The Eu | EPL Db (GB), EPL Gb (GB) |
| Explosion Protection | Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| Atex Category Gas | II 2G |
| Atex Category Dust | II 2D |
| Explosion Ignition Protection Type For Gas | Ex h IIC T6 Gb X |
| Explosion Ignition Protection Type For Dust | Ex h IIIC T60°C Db X |
| Explosion Ambient Temperature | -10 °C <= Ta <= +60 °C |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium | Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2], Lubricated operation not possible |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Storage Temperature | -10, 60 °C |
| Media Temperature | -10, 60 °C |
| Ambient Temperature | -10, 60 °C |
| Product Weight | 800, 1120 g |
| Type Of Mounting | Front panel mounting, In-line installation, With accessories |
| Pilot Air Port 12 | G1/8, 1/8 NPT |
| Pneumatic Connection, Port 1 | G1/4, G3/8, G1/2, G3/4, 1/4 NPT, 3/8 NPT, 1/2 NPT, 3/4 NPT |
| Pneumatic Connection, Port 2 | G1/4, G3/8, G1/2, G3/4, 1/4 NPT, 3/8 NPT, 1/2 NPT, 3/4 NPT |
| Pneumatic Connection, Port 3 | G1/4 |
| Note On Materials | RoHS-compliant |
| Material Seals | NBR |
| Material Housing | Aluminium |
