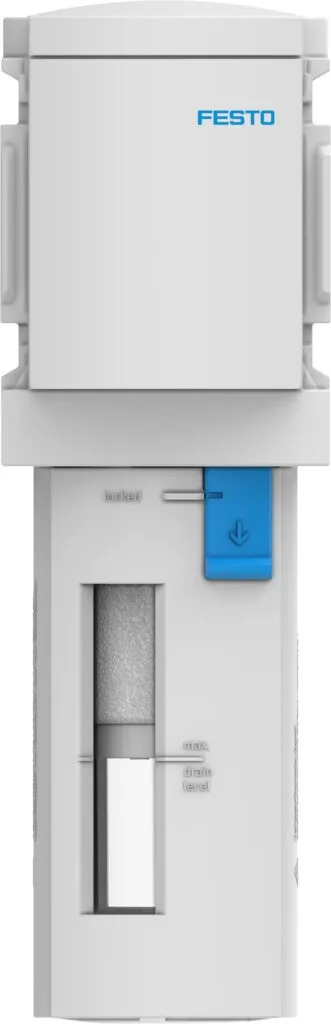

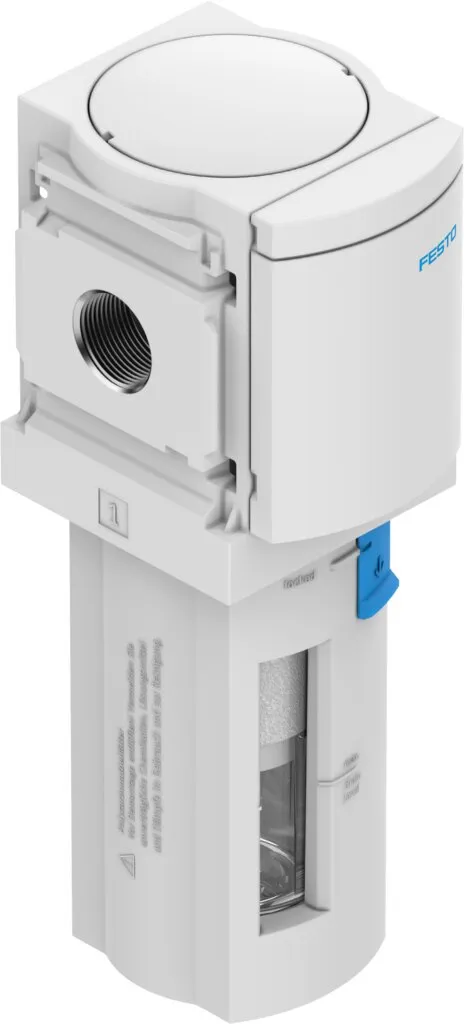

Festo MS6-LFX
Grid dimension 62 mm , Removal of gaseous oil particles from compressed air using activated carbon , Air quality class at the output [1.4.1] to ISO 8573-1 , Eliminates odours and vapours , Residual oi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 62 mm , Removal of gaseous oil particles from compressed air using activated carbon , Air quality class at the output [1.4.1] to ISO 8573-1 , Eliminates odours and vapours , Residual oil content = 0.003 mg/m³
Specification
| Size |
6 |
|---|---|
| Series |
MS |
| Mounting Position |
Vertical +/-5° |
| Grade Of Filtration |
0.01, 1 µm |
| Condensate Drain |
Fully automatic, Manually rotating, Semi-automatic |
| Design |
Activated carbon filter |
| Bowl Guard |
Plastic bowl guard, Integrated as metal bowl |
| Operating Pressure |
20 bar |
| Max. Standard Flow Rate For Clean Air Class |
900 l/min |
| Approval |
c UL us – Recognized (OL) |
| Ce Mark (See Declaration Of Conformity) |
To EU Explosion Protection Directive (ATEX) |
| Ukca Marking (See Declaration Of Conformity) |
To UK EX instructions |
| Explosion Protection Certification Outside The Eu |
EPL Db (GB), EPL Gb (GB) |
| Explosion Protection |
Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| Atex Category Gas |
II 2G |
| Atex Category Dust |
II 2D |
| Explosion Ignition Protection Type For Gas |
Ex h IIC T6 Gb X |
| Explosion Ignition Protection Type For Dust |
Ex h IIIC T60°C Db X |
| Explosion Ambient Temperature |
-10 °C <= Ta <= +60 °C |
| Operating Medium |
Compressed air according to ISO 8573-1:2010 [3:4:2] |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
-10, 60 °C |
| Suitable For Use With Food |
See supplementary material information |
| Air Purity Class At Output |
Compressed air according to ISO 8573-1:2010 [3:4:1] |
| Media Temperature |
5, 30 °C |
| Residual Oil Content |
0.003 mg/m³ |
| Ambient Temperature |
-10, 60 °C |
| Type Of Mounting |
In-line installation, With accessories |
| Note On Materials |
RoHS-compliant |
| Material Filter |
Activated carbon |
| Material Housing |
Die-cast aluminium |
