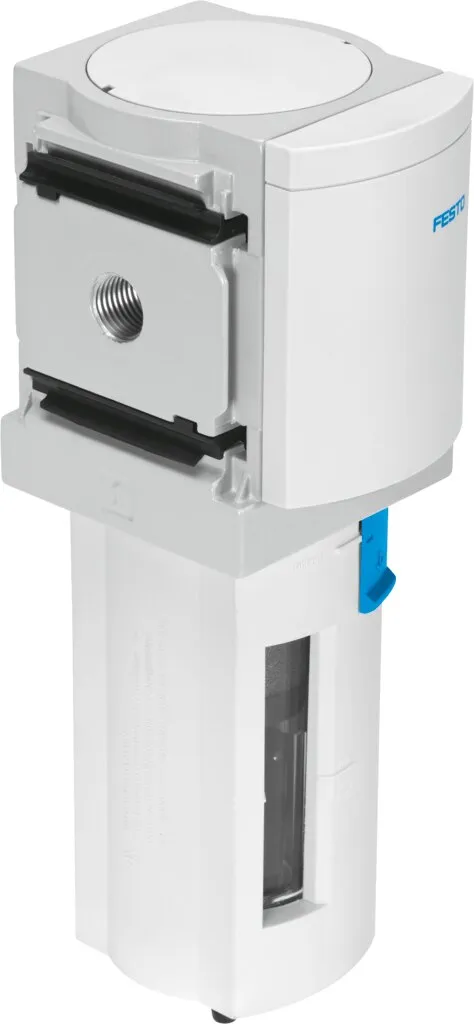

Festo MS6-LFM
Grid dimension 62 mm , High-efficiency filter for exceptionally clean compressed air , Removing oil aerosols from compressed air , Optionally with differential pressure indicator for indication of con…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 62 mm , High-efficiency filter for exceptionally clean compressed air , Removing oil aerosols from compressed air , Optionally with differential pressure indicator for indication of contamination , Available with electronic filter contamination indicator
Specification
| Series |
MS |
|---|---|
| Size |
6 |
| Design |
Fibre filter |
| Grade Of Filtration |
0.01, 1 µm |
| Condensate Drain |
Fully automatic, Fully automatic, electrically actuated, Manual, non-detenting, Manually rotating, Semi-automatic |
| Operating Pressure |
290 psi |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [6:-:4], Inert gases |
| Air Purity Class At Output |
Compressed air to ISO 8573-1:2010 [3:-:2], Compressed air to ISO 8573-1:2010:[5:-:3] |
| Bowl Guard |
Plastic bowl guard, Integrated as metal bowl |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Suitable For Use With Food |
See supplementary material information |
| Media Temperature |
-10, 60 °C |
| Ambient Temperature |
-10, 60 °C |
| Differential Pressure Display |
Visual display, Via pressure sensor |
| Approval |
c UL us – Recognized (OL) |
| Ce Mark (See Declaration Of Conformity) |
To EU Explosion Protection Directive (ATEX) |
| Ukca Marking (See Declaration Of Conformity) |
To UK EX instructions |
| Explosion Protection Certification Outside The Eu |
EPL Db (GB), EPL Gb (GB) |
| Explosion Protection |
Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| Atex Category Gas |
II 2G |
| Atex Category Dust |
II 2D |
| Explosion Ignition Protection Type For Gas |
Ex h IIC T6 Gb X |
| Explosion Ignition Protection Type For Dust |
Ex h IIIC T60°C Db X |
| Explosion Ambient Temperature |
-10 °C <= Ta <= +60 °C |
| Type Of Mounting |
In-line installation, With accessories |
| Mounting Position |
Vertical +/-5° |
| Material Housing |
Die-cast aluminium |
| Material Filter |
Borosilicate fibre |
| Material Seals |
NBR |
| Note On Materials |
RoHS-compliant |
