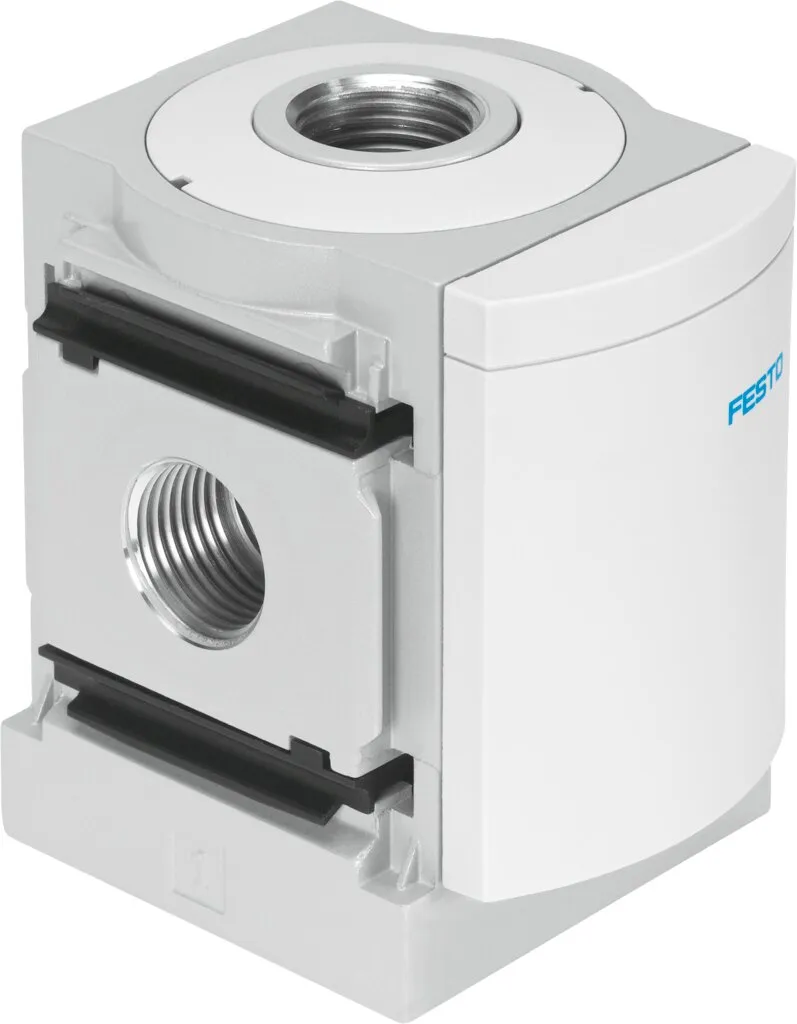

Festo MS6-FRM
Grid dimension 62 mm , Optionally with integrated non-return function and pressure switch , Outlet at top and bottom , Can be used as an intermediate distributor for varying air qualities , Optionally…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 62 mm , Optionally with integrated non-return function and pressure switch , Outlet at top and bottom , Can be used as an intermediate distributor for varying air qualities , Optionally with pressure sensor
Specification
| Mounting Position | optional |
|---|---|
| Design | Branching module |
| Symbol | 00991510 |
| Pressure Gauge (Analog) Or Pressure Display (Digital) | Prepared for G1/4, Prepared for G1/8, Via pressure sensor, With pressure gauge |
| Operating Pressure | 20 bar |
| Standard Nominal Flow Rate In Main Flow Direction 1 >2 | 3200, 14700 l/min |
| Standard Nominal Flow Rate, Outlet Upwards | 2700, 6000 l/min |
| Standard Nominal Flow Rate, Outlet Downwards | 2800, 6400 l/min |
| Operational Voltage Range Ac | 250 V |
| Operational Voltage Range Dc | 125 V |
| Approval | c UL us – Recognized (OL) |
| Ce Mark (See Declaration Of Conformity) | To EU Explosion Protection Directive (ATEX) |
| Ukca Marking (See Declaration Of Conformity) | To UK EX instructions |
| Explosion Protection Certification Outside The Eu | EPL Db (GB), EPL Gb (GB) |
| Explosion Protection | Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| Atex Category Gas | II 2G |
| Atex Category Dust | II 2D |
| Explosion Ignition Protection Type For Gas | Ex h IIC T6 Gb X |
| Explosion Ignition Protection Type For Dust | Ex h IIIC T60°C Db X |
| Explosion Ambient Temperature | -10 °C <= Ta <= +60 °C |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Storage Temperature | -10, 60 °C |
| Suitable For Use With Food | See supplementary material information |
| Media Temperature | -10, 60 °C |
| Ambient Temperature | -10, 60 °C |
| Product Weight | 458 g |
| Note On Materials | RoHS-compliant |
| Material Housing | Die-cast aluminium |
