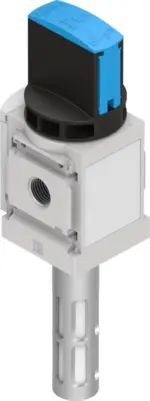

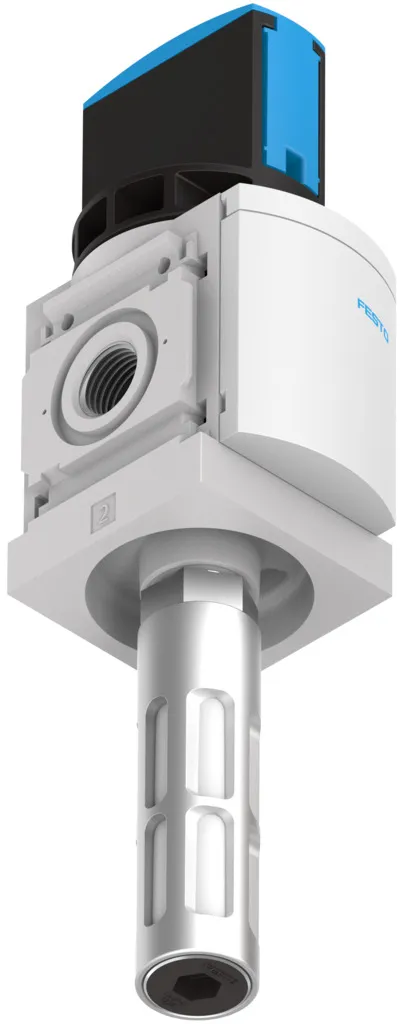

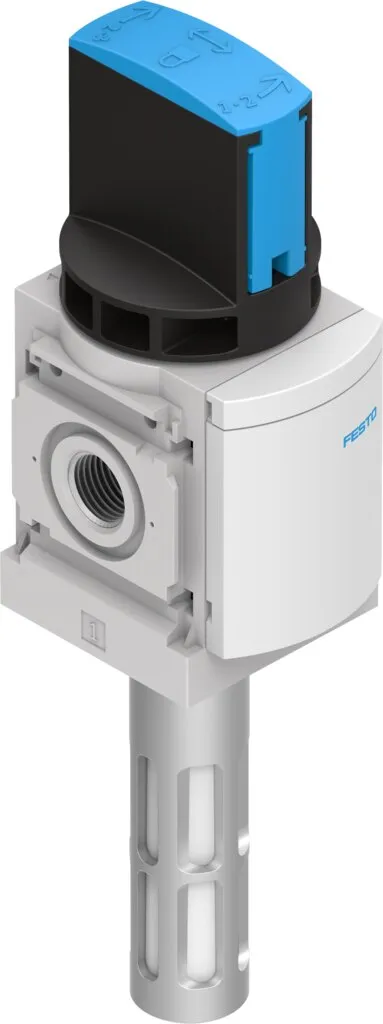

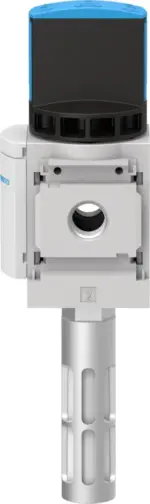

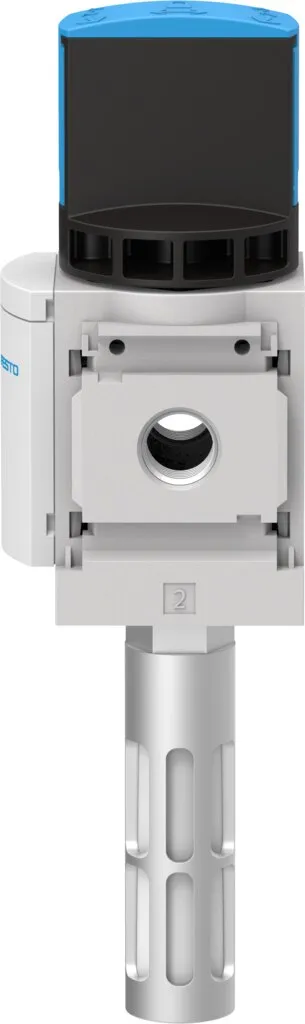

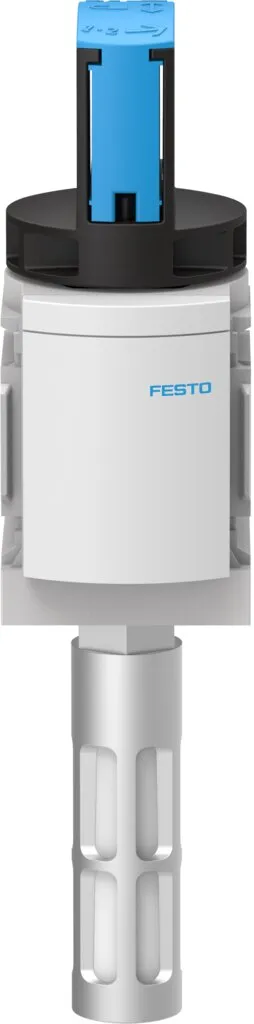

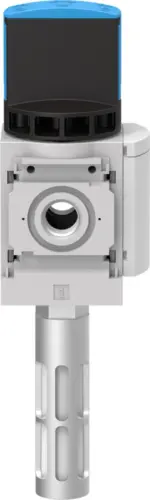

Festo MS6-EM1-3/8-S
Grid dimension 62 mm , Manual 3/2-way valve for pressurising and exhausting pneumatic systems , A silencer can be attached or the exhaust air ducted at port 3 , Switching position is immediately recog…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 62 mm , Manual 3/2-way valve for pressurising and exhausting pneumatic systems , A silencer can be attached or the exhaust air ducted at port 3 , Switching position is immediately recognisable , Optionally with pressure gauge and pressure sensor , Variants recommended for production systems for manufacturing lithium-ion batteries
Specification
| Design |
Rotary gate valve |
|---|---|
| Type Of Actuation |
Manual |
| Exhaust Air Function |
Without flow control option |
| Type Of Piloting |
Direct |
| Symbol |
00991670 |
| Valve Function |
3/2 bistable |
| Operating Pressure |
18 bar |
| C Value |
21.2 l/sbar |
| B Value |
0.49 |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
5500 l/min |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Note On Materials |
RoHS-compliant |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Media Temperature |
-10, 60 °C |
| Ambient Temperature |
-10, 60 °C |
| Suitable For Use With Food |
See supplementary material information |
| Type Of Mounting |
In-line installation, With accessories |
| Mounting Position |
optional |
| Flow Direction |
Non-reversible |
| Product Weight |
655 g |
| Pneumatic Connection, Port 1 |
G3/8 |
| Pneumatic Connection, Port 2 |
G3/8 |
| Pneumatic Connection, Port 3 |
Integrated silencer, Not ducted |
| Material Seals |
TPE-U(PU) |
| Material Housing |
Die-cast aluminium |
