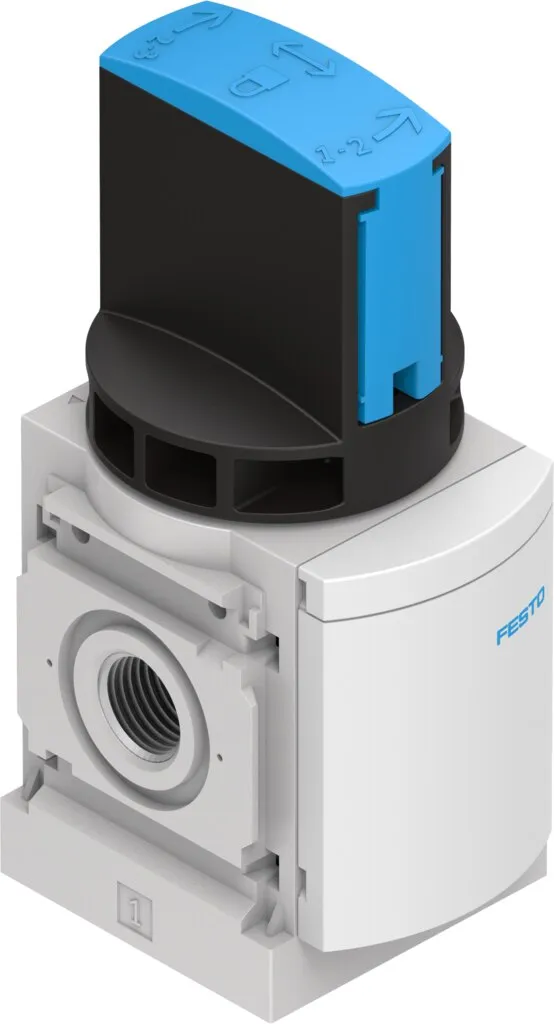

Festo MS6-EM1
Grid dimension 62 mm , Manual 3/2-way valve for pressurising and exhausting pneumatic systems , A silencer can be attached or the exhaust air ducted at port 3 , Switching position is immediately recog…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 62 mm , Manual 3/2-way valve for pressurising and exhausting pneumatic systems , A silencer can be attached or the exhaust air ducted at port 3 , Switching position is immediately recognisable , Optionally with pressure gauge and pressure sensor , Variants recommended for production systems for manufacturing lithium-ion batteries
Specification
| Design |
Rotary gate valve |
|---|---|
| Type Of Actuation |
Manual |
| Exhaust Air Function |
Without flow control option |
| Type Of Piloting |
Direct |
| Valve Function |
3/2 bistable |
| Operating Pressure |
18 bar |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
3000, 8700 l/min |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Note On Materials |
RoHS-compliant |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Media Temperature |
-10, 60 °C |
| Ambient Temperature |
-10, 60 °C |
| Approval |
c UL us – Recognized (OL) |
| Ce Mark (See Declaration Of Conformity) |
To EU Explosion Protection Directive (ATEX) |
| Ukca Marking (See Declaration Of Conformity) |
To UK EX instructions |
| Explosion Protection Certification Outside The Eu |
EPL Db (GB), EPL Gb (GB) |
| Explosion Protection |
Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| Atex Category Gas |
II 2G |
| Atex Category Dust |
II 2D |
| Explosion Ignition Protection Type For Gas |
Ex h IIC T6 Gb X |
| Explosion Ignition Protection Type For Dust |
Ex h IIIC T60°C Db X |
| Explosion Ambient Temperature |
-10 °C <= Ta <= +60 °C |
| Suitable For Use With Food |
See supplementary material information |
| Type Of Mounting |
In-line installation, With accessories |
| Mounting Position |
optional |
| Flow Direction |
Non-reversible |
| Pneumatic Connection, Port 3 |
G1/2 |
| Material Seals |
TPE-U(PU) |
| Material Housing |
Die-cast aluminium |
