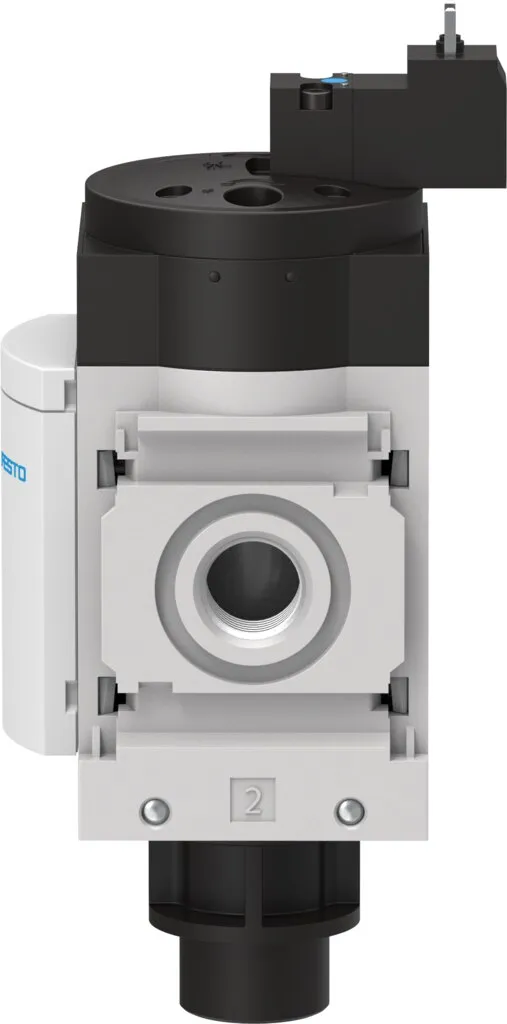

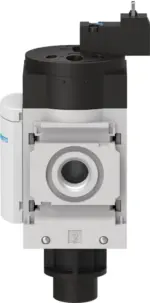

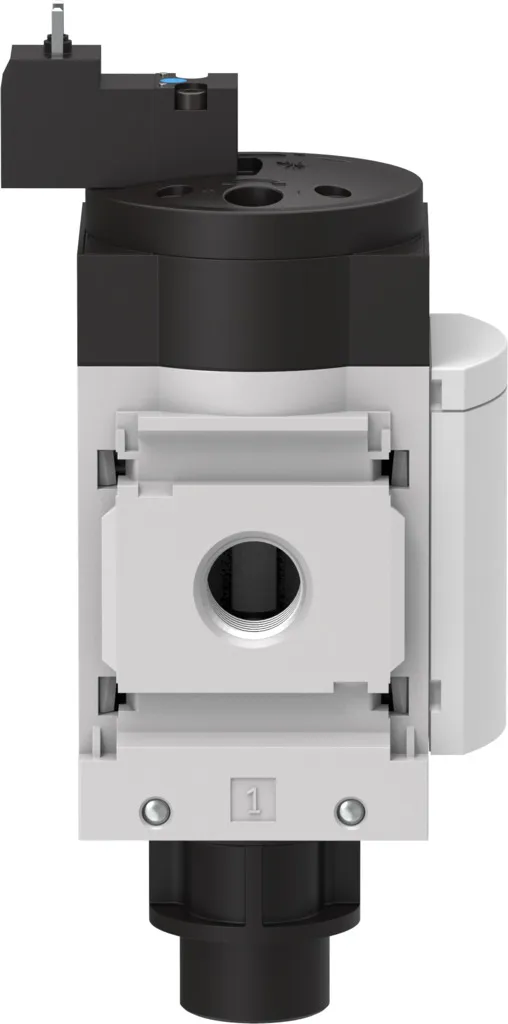

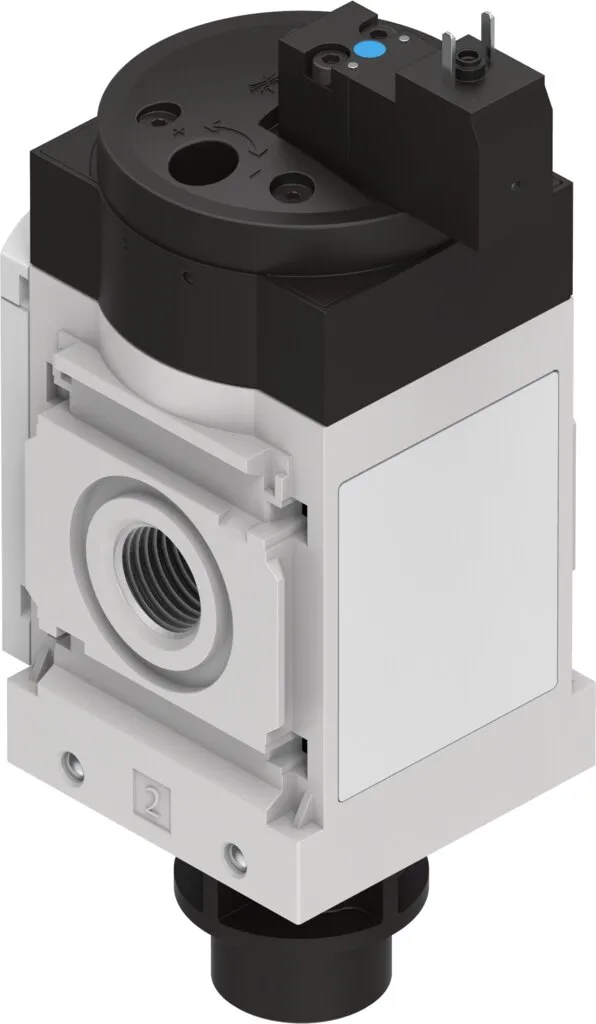

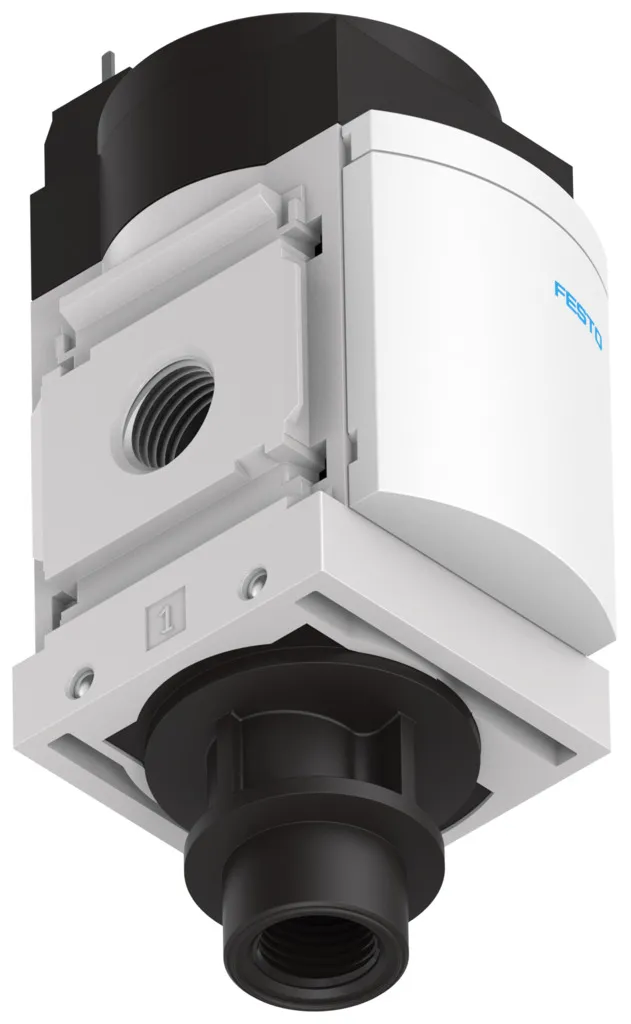

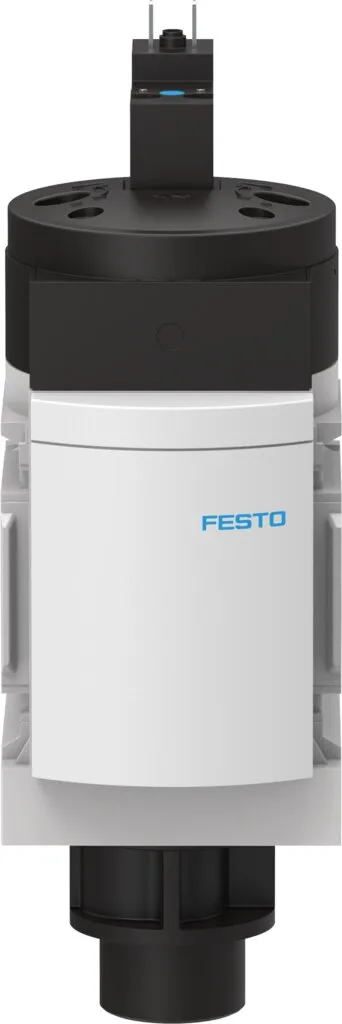

Festo MS6-EE-1/2-V230
Grid dimension 62 mm , Electric 3/2-way valve for pressurising and exhausting pneumatic installations , A silencer can be attached or the exhaust air ducted at port 3 , Supply voltage 24 V DC, 110, 23…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 62 mm , Electric 3/2-way valve for pressurising and exhausting pneumatic installations , A silencer can be attached or the exhaust air ducted at port 3 , Supply voltage 24 V DC, 110, 230 V AC , Optionally with pressure gauge and pressure sensor , With solenoid coil, without plug socket
Specification
| Design |
Piston gate valve |
|---|---|
| Type Of Actuation |
Electric |
| Exhaust Air Function |
Without flow control option |
| Manual Override |
Detenting, Non-detenting |
| Type Of Reset |
Mechanical spring |
| Type Of Piloting |
Pilot actuated |
| Symbol |
00991008 |
| Valve Function |
3/2-way, closed, monostable |
| Operating Pressure |
4, 18 bar |
| C Value |
29 l/sbar |
| B Value |
0.4 |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
7000 l/min |
| Duty Cycle |
100% |
| Characteristic Coil Data |
230 V AC: 50/60 Hz, pick-up power 3.0 VA, holding power 2.4 VA |
| Permissible Voltage Fluctuations |
-14 % / +10 % |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Note On Materials |
RoHS-compliant |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Media Temperature |
-10, 60 °C |
| Degree Of Protection |
IP65 |
| Ambient Temperature |
-10, 60 °C |
| Suitable For Use With Food |
See supplementary material information |
| Type Of Mounting |
In-line installation, With accessories |
| Mounting Position |
optional |
| Flow Direction |
Non-reversible |
| Product Weight |
740 g |
| Pneumatic Connection, Port 1 |
G1/2 |
| Pneumatic Connection, Port 2 |
G1/2 |
| Pneumatic Connection, Port 3 |
G1/2 |
| Pilot Air Supply |
Internal |
| Electrical Connection |
Type C, Plugs, To DIN EN 175301-803, Square design |
| Material Seals |
NBR |
| Material Housing |
Die-cast aluminium |
