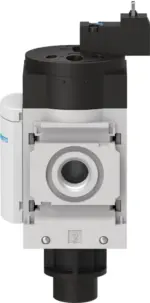

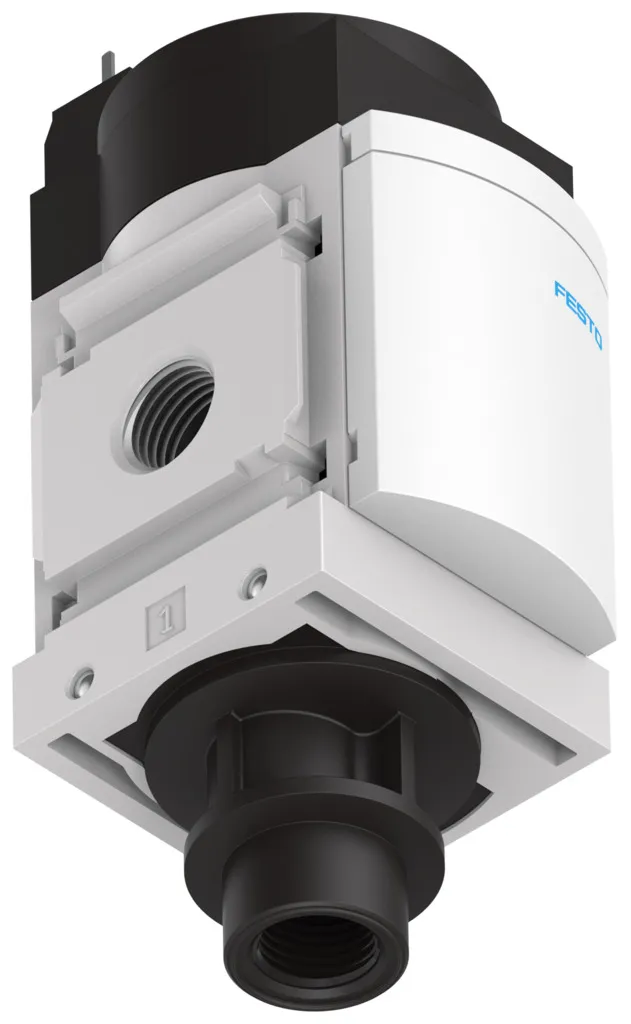

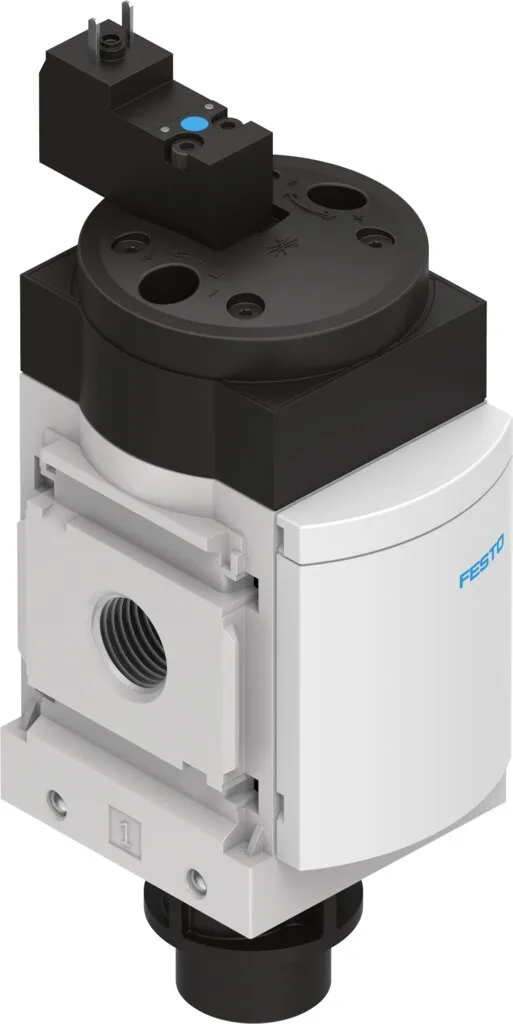

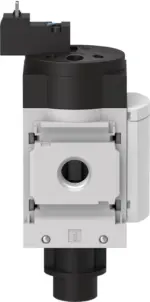

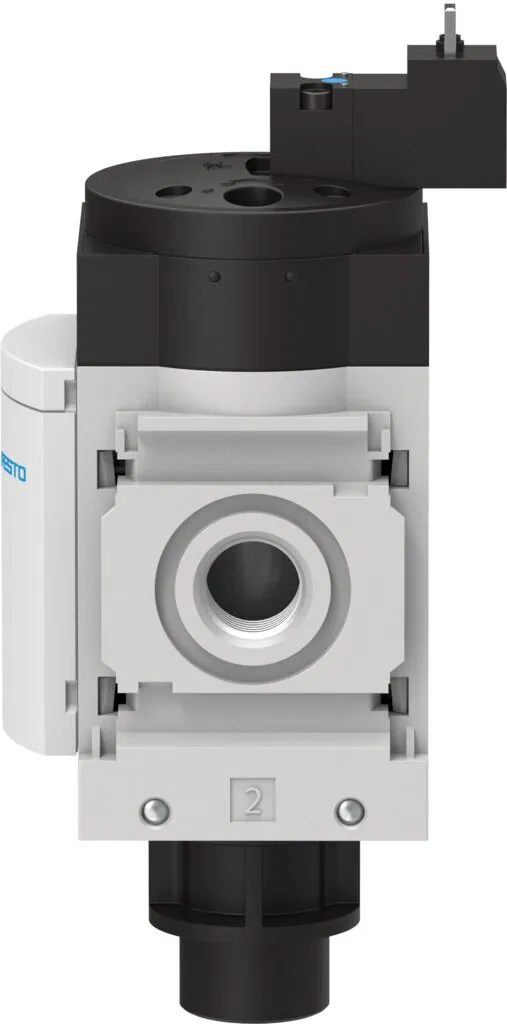

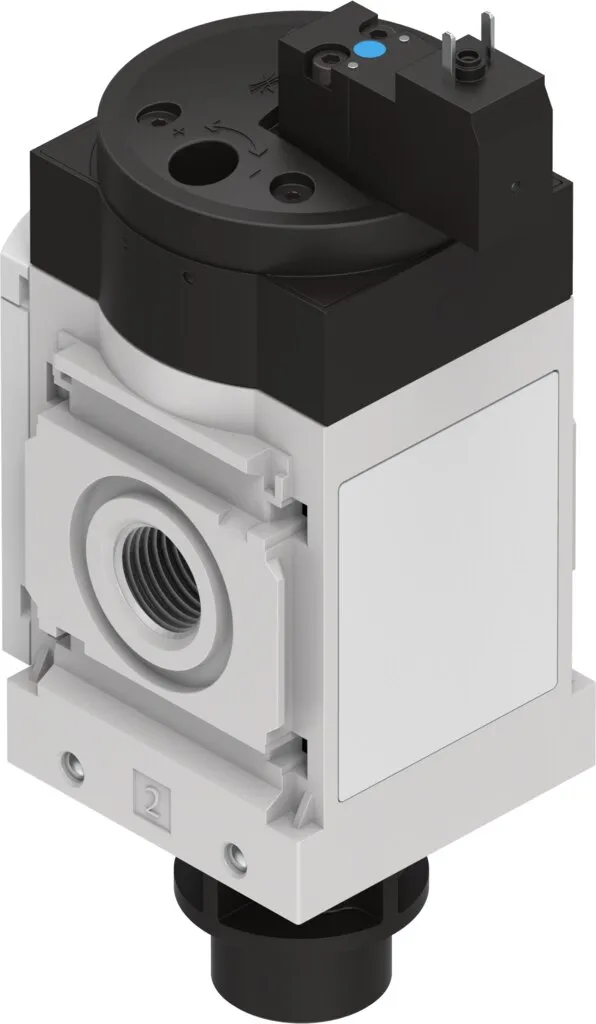

Festo MS6-EE
Grid dimension 62 mm , Electric 3/2-way valve for pressurising and exhausting pneumatic installations , A silencer can be attached or the exhaust air ducted at port 3 , Supply voltage 24 V DC, 110, 23…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 62 mm , Electric 3/2-way valve for pressurising and exhausting pneumatic installations , A silencer can be attached or the exhaust air ducted at port 3 , Supply voltage 24 V DC, 110, 230 V AC , Optionally with pressure gauge and pressure sensor , With solenoid coil, without plug socket
Specification
| Design |
Piston gate valve |
|---|---|
| Type Of Actuation |
Electric |
| Exhaust Air Function |
Without flow control option |
| Manual Override |
Detenting, None, Non-detenting |
| Type Of Reset |
Mechanical spring |
| Type Of Piloting |
Pilot actuated |
| Valve Function |
3/2-way, closed, monostable |
| Pressure Gauge (Analog) Or Pressure Display (Digital) |
Prepared for G1/4, Via pressure sensor, With pressure gauge |
| Operating Pressure |
4, 18 bar |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
2600, 7000 l/min |
| Duty Cycle |
100% |
| Characteristic Coil Data |
230 V AC: 50/60 Hz, pick-up power 3.0 VA, holding power 2.4 VA, 24 V DC: 1.5 W, 24 V DC: 2.5 W |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Note On Materials |
RoHS-compliant |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Media Temperature |
-10, 60 °C |
| Degree Of Protection |
IP65 |
| Ambient Temperature |
-10, 60 °C |
| Approval |
c UL us – Recognized (OL) |
| Kc Mark |
KC-EMV |
| Ce Mark (See Declaration Of Conformity) |
To EU EMC Directive, To EU Explosion Protection Directive (ATEX), To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK instructions for EMC, To UK EX instructions, To UK RoHS instructions, To UK regulations for electrical equipment |
| Explosion Protection Certification Outside The Eu |
EPL Dc (GB), EPL Gc (GB) |
| Explosion Protection |
Zone 2 (ATEX), Zone 2 (UKEX), Zone 22 (ATEX), Zone 22 (UKEX) |
| Atex Category Gas |
II 3G |
| Atex Category Dust |
II 3D |
| Explosion Ignition Protection Type For Gas |
Ex nA IIC T4 X Gc |
| Explosion Ignition Protection Type For Dust |
Ex tc IIIC T105°C IP65 Dc X |
| Explosion Ambient Temperature |
-10 °C <= Ta <= +60 °C |
| Suitable For Use With Food |
See supplementary material information |
| Type Of Mounting |
In-line installation, With accessories |
| Mounting Position |
optional |
| Flow Direction |
Non-reversible |
| Product Weight |
740 g |
| Pneumatic Connection, Port 3 |
G1/2 |
| Pilot Air Supply |
Internal |
| Material Seals |
NBR |
| Material Housing |
Die-cast aluminium |
