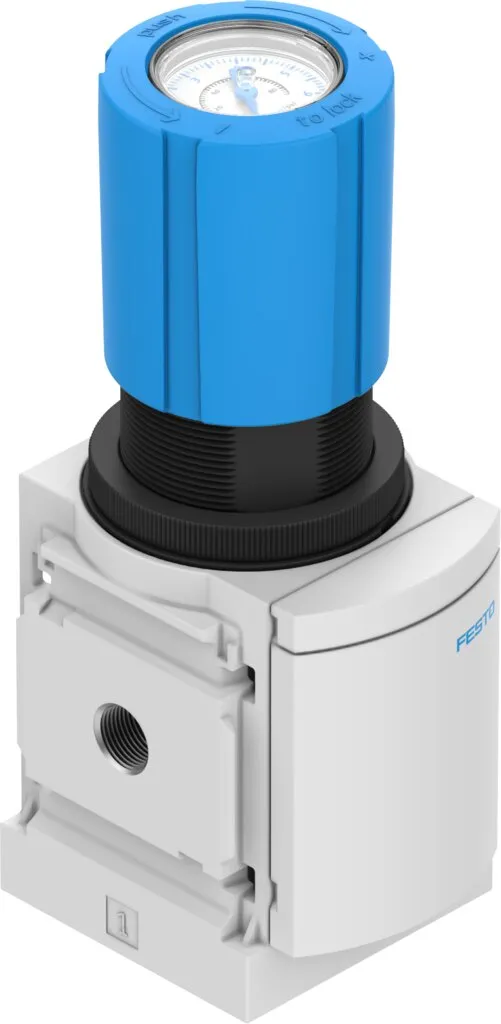

Festo MS4-LR-1/8-D7-VS-DM1
Grid dimension 40mm , High flow rate performance with minimal pressure drop , Good control characteristics with minimal pressure hysteresis and primary pressure compensation , With or without secondar…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 40mm , High flow rate performance with minimal pressure drop , Good control characteristics with minimal pressure hysteresis and primary pressure compensation , With or without secondary exhausting , Lockable rotary knob , Optional pressure sensor and rotary knob pressure gauge , Sustainable operation thanks to reduced pressure level
Specification
| Size |
4 |
|---|---|
| Series |
MS |
| Actuator Lock |
Rotary knob with detent |
| Mounting Position |
optional |
| Design |
Directly actuated diaphragm regulator |
| Controller Function |
Output pressure constant, With secondary venting, With return flow function |
| Symbol |
00991559 |
| Pressure Gauge (Analog) Or Pressure Display (Digital) |
Via pressure gauge in the rotary knob |
| Operating Pressure |
0.8, 14 bar |
| Pressure Regulation Range |
0.5, 12 bar |
| Max. Pressure Hysteresis |
5.8 psi |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
1000 l/min |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
-10, 60 °C |
| Suitable For Use With Food |
See supplementary material information |
| Media Temperature |
-10, 60 °C |
| Ambient Temperature |
-10, 60 °C |
| Product Weight |
225 g |
| Type Of Mounting |
Front panel mounting, In-line installation, With accessories |
| Pneumatic Connection, Port 1 |
G1/8 |
| Pneumatic Connection, Port 2 |
G1/8 |
| Note On Materials |
RoHS-compliant |
| Material Sub Base |
Die-cast aluminium |
| Material Control Panel |
PA, POM |
| Material Seals |
NBR |
| Material Housing |
Die-cast aluminium |
| Material Membrane |
NBR |
