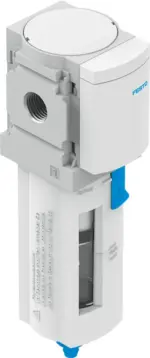

Festo MS4-LFX-1/8-U
Grid dimension 40mm , Removal of gaseous oil particles from compressed air using activated carbon , Air quality class at the output [1.4.1] to ISO 8573-1 , Eliminates odours and vapours , Residual oil…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 40mm , Removal of gaseous oil particles from compressed air using activated carbon , Air quality class at the output [1.4.1] to ISO 8573-1 , Eliminates odours and vapours , Residual oil content = 0.003 mg/m³
Specification
| Size |
4 |
|---|---|
| Series |
MS |
| Mounting Position |
Vertical +/-5° |
| Design |
Activated carbon filter |
| Bowl Guard |
Integrated as metal bowl |
| Symbol |
00991519 |
| Operating Pressure |
14 bar |
| Max. Standard Flow Rate For Clean Air Class |
360 l/min |
| Operating Medium |
Compressed air according to ISO 8573-1:2010 [3:4:2] |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
-10, 60 °C |
| Air Purity Class At Output |
Compressed air according to ISO 8573-1:2010 [3:4:1] |
| Media Temperature |
5, 30 °C |
| Residual Oil Content |
0.003 mg/m³ |
| Ambient Temperature |
-10, 60 °C |
| Product Weight |
350 g |
| Type Of Mounting |
In-line installation, With accessories |
| Pneumatic Connection, Port 1 |
G1/8 |
| Pneumatic Connection, Port 2 |
G1/8 |
| Note On Materials |
RoHS-compliant |
| Material Filter |
Activated carbon |
| Material Housing |
Die-cast aluminium |
| Material Bowl |
Die-cast aluminium, Wrought aluminium alloy |
| Material Screen |
PA |
