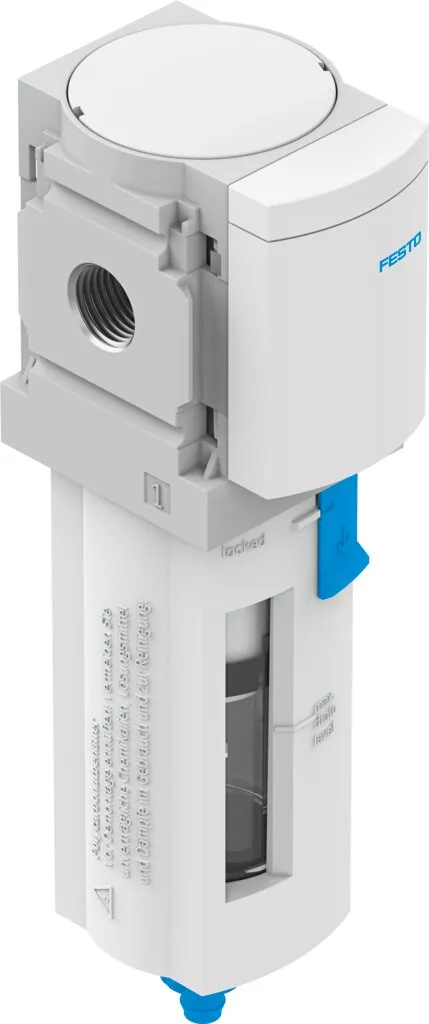

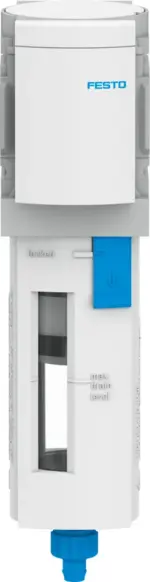

Festo MS4-LFM-1/8-ARM
Grid dimension 40mm , High-efficiency filter for exceptionally clean compressed air , Removing oil aerosols from compressed air , Optionally with differential pressure indicator for indication of cont…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 40mm , High-efficiency filter for exceptionally clean compressed air , Removing oil aerosols from compressed air , Optionally with differential pressure indicator for indication of contamination , Available with electronic filter contamination indicator
Specification
| Series |
MS |
|---|---|
| Size |
4 |
| Design |
Fibre filter |
| Grade Of Filtration |
0.01 µm |
| Condensate Drain |
Manually rotating |
| Symbol |
00991519 |
| Operating Pressure |
14 bar |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [6:-:4], Inert gases |
| Air Purity Class At Output |
Compressed air to ISO 8573-1:2010 [3:-:2] |
| Max. Standard Flow Rate For Clean Air Class |
360 l/min |
| Min. Standard Flow Rate For Clean Air Class |
54 l/min |
| Filter Efficiency |
99.9999 % |
| Max. Condensate Volume |
19 ml |
| Bowl Guard |
Plastic bowl guard |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Suitable For Use With Food |
See supplementary material information |
| Media Temperature |
-10, 60 °C |
| Ambient Temperature |
-10, 60 °C |
| Storage Temperature |
-10, 60 °C |
| Filter Efficiency, Fine Particles |
99.995 % |
| M P P S |
0.05 µm |
| Filter Efficiency Mpps |
99.95 % |
| Residual Oil Content |
0.01 mg/m³ |
| Filter Efficiency, Oil Aerosol |
99 % |
| Type Of Mounting |
In-line installation, With accessories |
| Mounting Position |
Vertical +/-5° |
| Pneumatic Connection, Port 1 |
G1/8 |
| Pneumatic Connection, Port 2 |
G1/8 |
| Material Housing |
Die-cast aluminium |
| Material Filter |
Borosilicate fibre |
| Material Bowl |
PC |
| Material Seals |
NBR |
| Note On Materials |
RoHS-compliant |
| Product Weight |
190 g |
