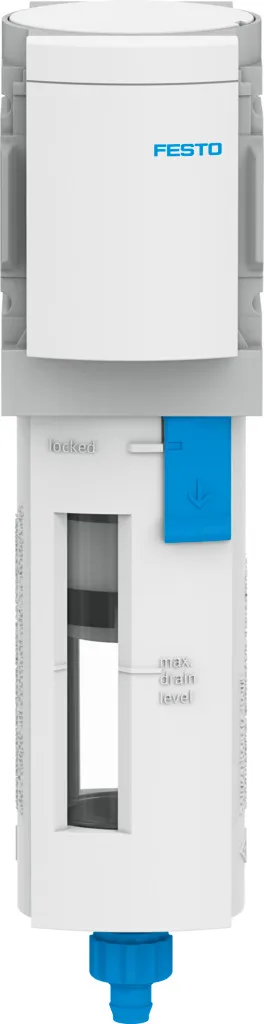

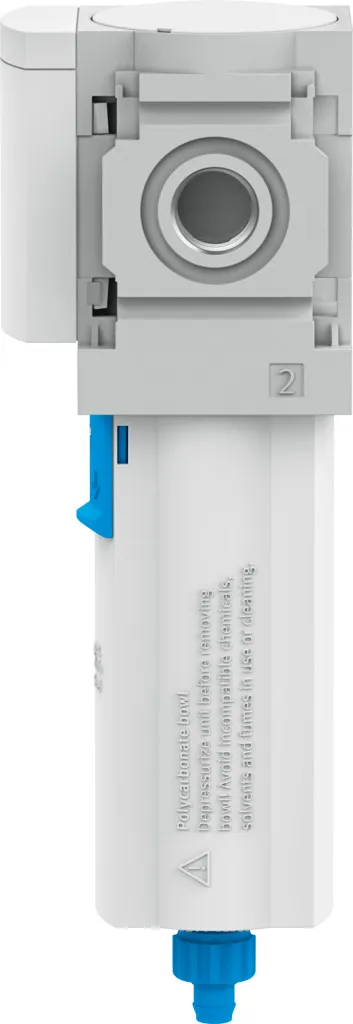

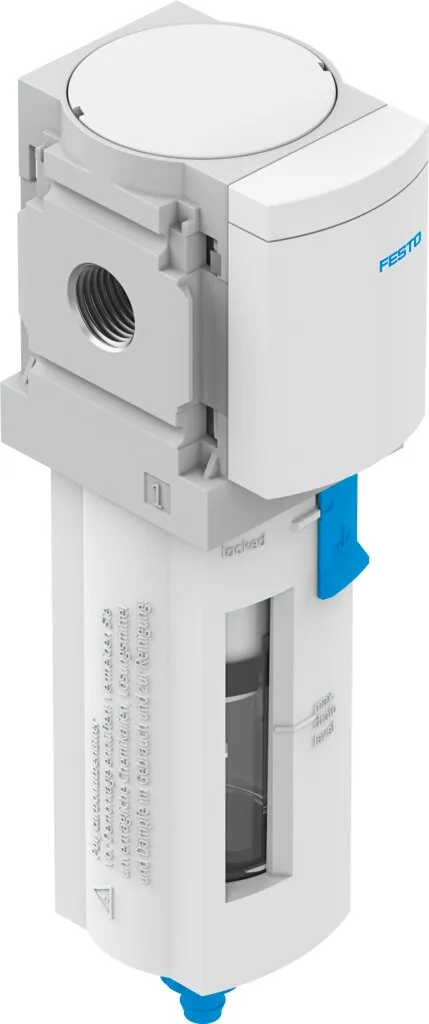

Festo MS4-LFM
Grid dimension 40mm , High-efficiency filter for exceptionally clean compressed air , Removing oil aerosols from compressed air , Optionally with differential pressure indicator for indication of cont…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 40mm , High-efficiency filter for exceptionally clean compressed air , Removing oil aerosols from compressed air , Optionally with differential pressure indicator for indication of contamination , Available with electronic filter contamination indicator
Specification
| Series | MS |
|---|---|
| Size | 4 |
| Design | Fibre filter |
| Grade Of Filtration | 0.01, 1 µm |
| Condensate Drain | Fully automatic, Manual, non-detenting, Manually rotating, Semi-automatic |
| Operating Pressure | 203 psi |
| Operating Medium | Compressed air to ISO 8573-1:2010 [6:-:4], Inert gases |
| Max. Standard Flow Rate For Clean Air Class | 360 l/min |
| Min. Standard Flow Rate For Clean Air Class | 54 l/min |
| Bowl Guard | Plastic bowl guard, Integrated as metal bowl |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Suitable For Use With Food | See supplementary material information |
| Media Temperature | -10, 60 °C |
| Ambient Temperature | -10, 60 °C |
| Differential Pressure Display | Visual display, Via pressure sensor |
| Approval | c UL us – Recognized (OL) |
| Ce Mark (See Declaration Of Conformity) | To EU Explosion Protection Directive (ATEX) |
| Ukca Marking (See Declaration Of Conformity) | To UK EX instructions |
| Explosion Protection Certification Outside The Eu | EPL Db (GB), EPL Gb (GB) |
| Explosion Protection | Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| Atex Category Gas | II 2G |
| Atex Category Dust | II 2D |
| Explosion Ignition Protection Type For Gas | Ex h IIC T6 Gb X |
| Explosion Ignition Protection Type For Dust | Ex h IIIC T60°C Db X |
| Explosion Ambient Temperature | -10 °C <= Ta <= +60 °C |
| Type Of Mounting | In-line installation, With accessories |
| Mounting Position | Vertical +/-5° |
| Material Housing | Die-cast aluminium |
| Material Filter | Borosilicate fibre |
| Material Seals | NBR |
| Note On Materials | RoHS-compliant |
