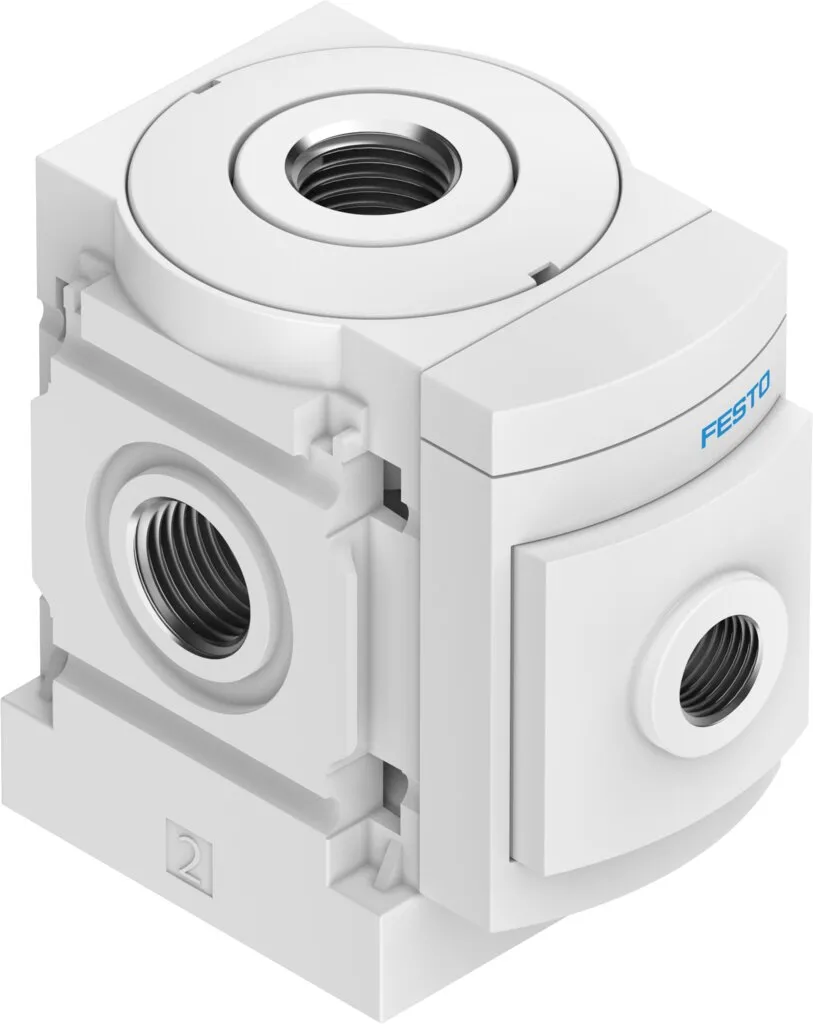

Festo MS4-FRM-1/4-A8-F1A
Grid dimension 40mm , Optionally with integrated non-return function and pressure switch , Outlet at top and bottom , Can be used as an intermediate distributor for varying air qualities , Optionally…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 40mm , Optionally with integrated non-return function and pressure switch , Outlet at top and bottom , Can be used as an intermediate distributor for varying air qualities , Optionally with pressure sensor
Specification
| Instructions On Use |
Foreign particles can adhere to the product or form during installation. Depending on the application, it may be necessary to purge the product with clean compressed air, to clean it after installation and operate it with ducted exhaust air. |
|---|---|
| Mounting Position |
optional |
| Design |
Branching module |
| Symbol |
00991510 |
| Operating Pressure |
14 bar |
| Standard Nominal Flow Rate In Main Flow Direction 1 >2 |
4600 l/min |
| Standard Nominal Flow Rate, Outlet Upwards |
1500 l/min |
| Standard Nominal Flow Rate, Outlet Downwards |
1500 l/min |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Suitability For The Production Of Li Ion Batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Storage Temperature |
-10, 60 °C |
| Suitable For Use With Food |
See supplementary material information |
| Media Temperature |
-10, 60 °C |
| Ambient Temperature |
-10, 60 °C |
| Product Weight |
165 g |
| Pneumatic Connection, Port 1 |
G1/4 |
| Pneumatic Connection, Port 2 |
G1/4 |
| Pneumatic Connection, Port 3 |
G1/4 |
| Pneumatic Connection, Port 4 |
G1/4 |
| Note On Materials |
RoHS-compliant |
| Material Housing |
Die-cast aluminium |
