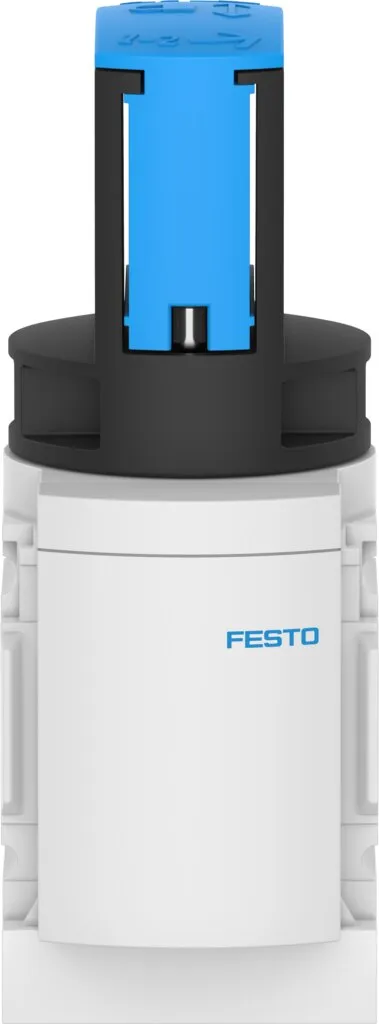

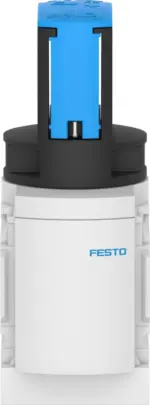

Festo MS4-EM1-1/4-F1A
Grid dimension 40mm , Manual 3/2-way valve for pressurising and exhausting pneumatic systems , A silencer can be attached or the exhaust air ducted at port 3 , Switching position is immediately recogn…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 40mm , Manual 3/2-way valve for pressurising and exhausting pneumatic systems , A silencer can be attached or the exhaust air ducted at port 3 , Switching position is immediately recognisable , Optionally with pressure gauge and pressure sensor , Variants recommended for production systems for manufacturing lithium-ion batteries
Specification
| Design |
Rotary gate valve |
|---|---|
| Type Of Actuation |
Manual |
| Exhaust Air Function |
Without flow control option |
| Type Of Piloting |
Direct |
| Instructions On Use |
Foreign particles can adhere to the product or form during installation. Depending on the application, it may be necessary to purge the product with clean compressed air, to clean it after installation and operate it with ducted exhaust air. |
| Symbol |
00991670 |
| Valve Function |
3/2 bistable |
| Operating Pressure |
14 bar |
| C Value |
9 l/sbar |
| B Value |
0.39 |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
2200 l/min |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Note On Materials |
RoHS-compliant |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Suitability For The Production Of Li Ion Batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Media Temperature |
-10, 60 °C |
| Ambient Temperature |
-10, 60 °C |
| Suitable For Use With Food |
See supplementary material information |
| Type Of Mounting |
In-line installation, With accessories |
| Mounting Position |
optional |
| Flow Direction |
Non-reversible |
| Product Weight |
190 g |
| Pneumatic Connection, Port 1 |
G1/4 |
| Pneumatic Connection, Port 2 |
G1/4 |
| Pneumatic Connection, Port 3 |
G1/4 |
| Material Seals |
TPE-U(PU) |
| Material Housing |
Die-cast aluminium |
