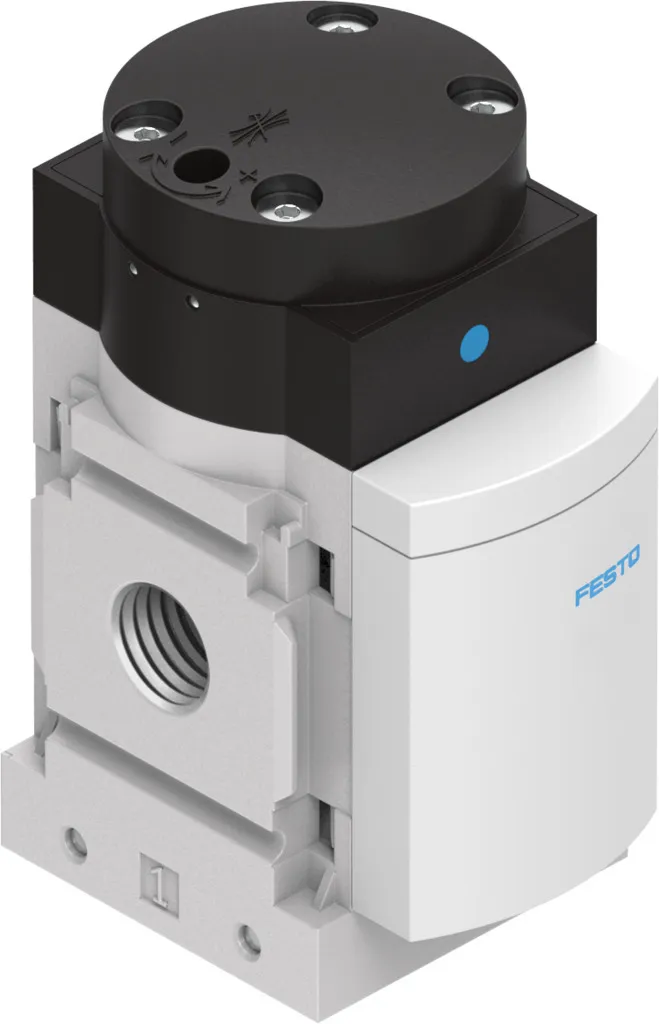

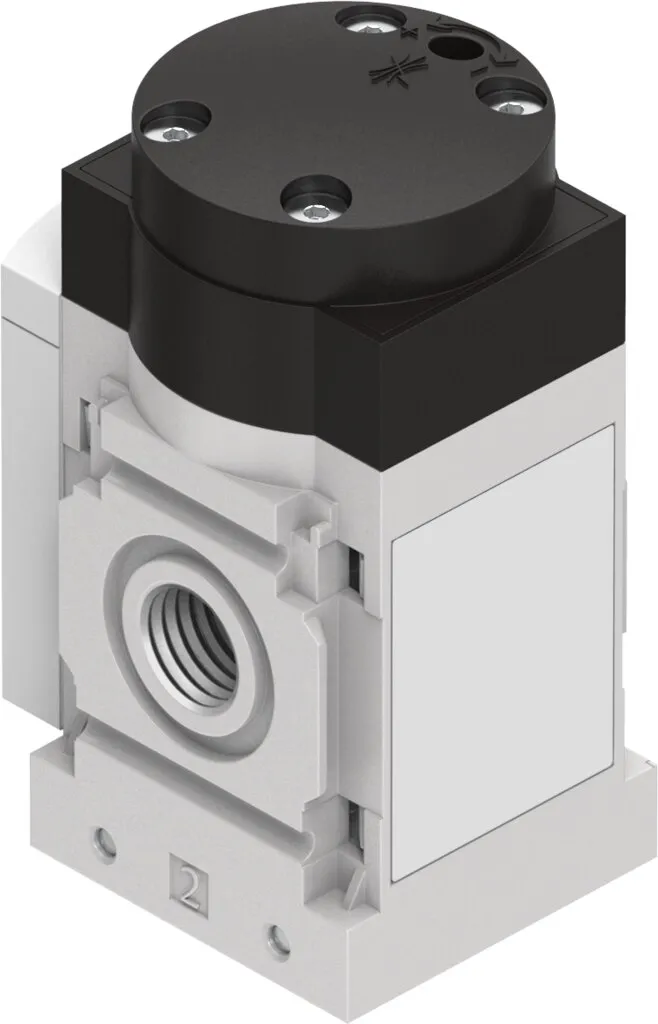

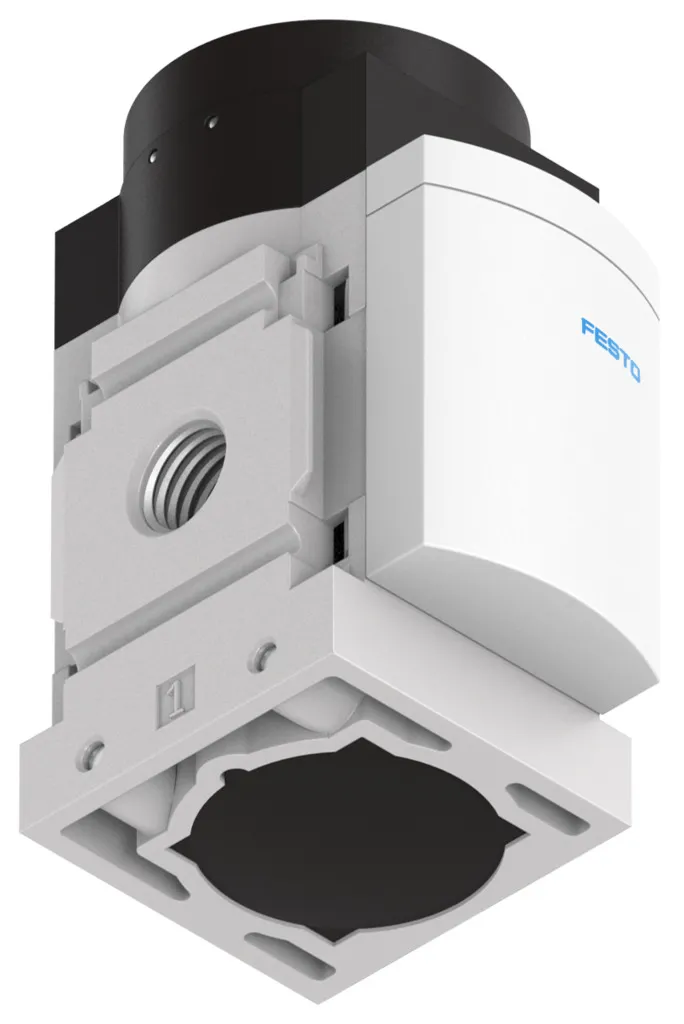

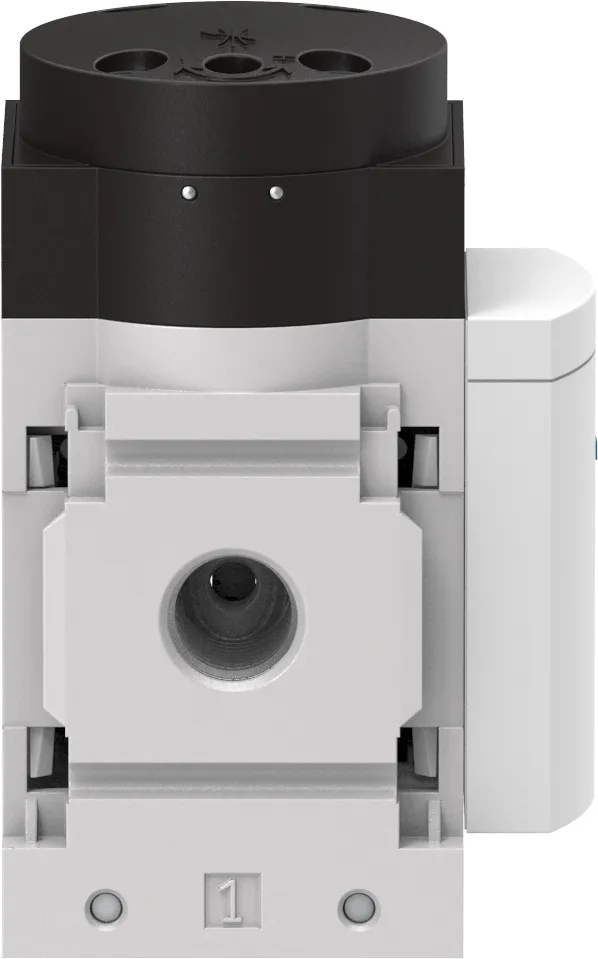

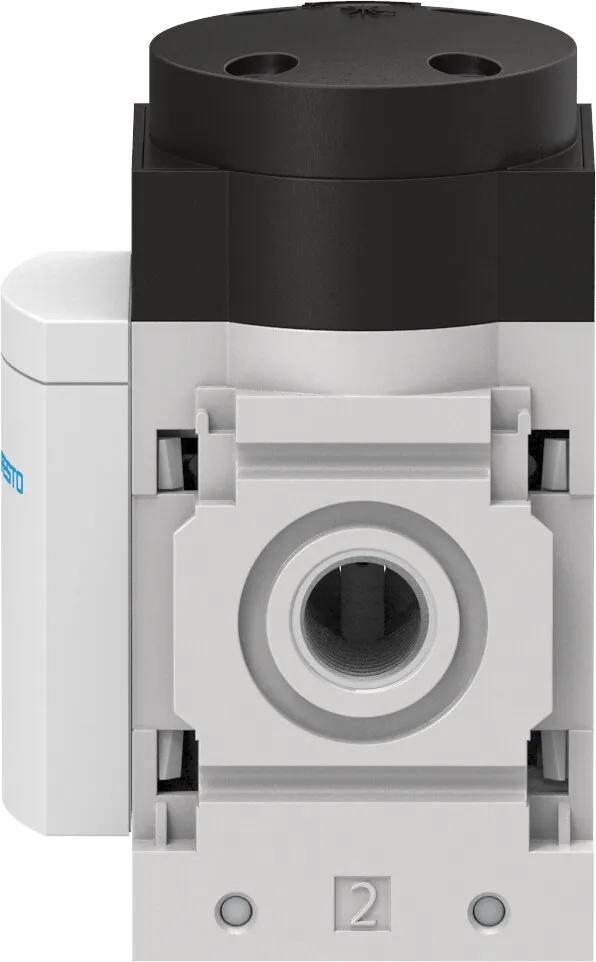

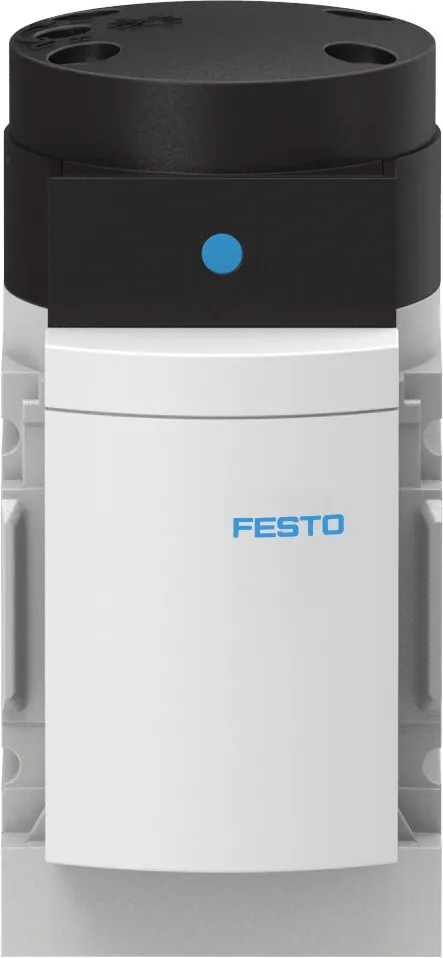

Festo MS4-DL-1/4
Grid dimension 40mm , 2/2-way valve for slowly pressurising pneumatic systems (for use with on/off valves EM(1) and EE) , For building up pressure gradually , Adjustable pressure build-up time
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 40mm , 2/2-way valve for slowly pressurising pneumatic systems (for use with on/off valves EM(1) and EE) , For building up pressure gradually , Adjustable pressure build-up time
Specification
| Exhaust Air Function | With flow control option |
|---|---|
| Type Of Actuation | Pneumatic |
| Mounting Position | optional |
| Manual Override | None |
| Design | Piston seat |
| Type Of Reset | Mechanical spring |
| Type Of Piloting | Direct |
| Pilot Air Supply | External |
| Flow Direction | Non-reversible |

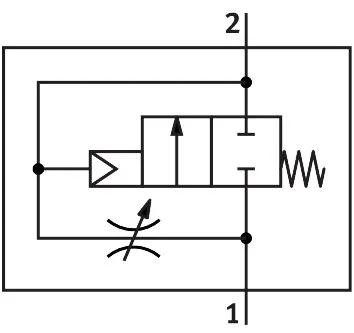

| Symbol | 00991513 |
| Valve Function | 2/2 |
| Operating Pressure | 4, 14 bar |
| B Value | 0.45 |
| C Value | 9.6 l/sbar |
| Standard Nominal Flow Rate (Standardised To Din 1343) | 2000 l/min |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Suitable For Use With Food | See supplementary material information |
| Media Temperature | -10, 60 °C |
| Ambient Temperature | -10, 60 °C |
| Product Weight | 213 g |
| Type Of Mounting | In-line installation, With accessories |
| Pneumatic Connection, Port 1 | G1/4 |
| Pneumatic Connection, Port 2 | G1/4 |
| Note On Materials | RoHS-compliant |
| Material Seals | NBR |
| Material Housing | Die-cast aluminium |
