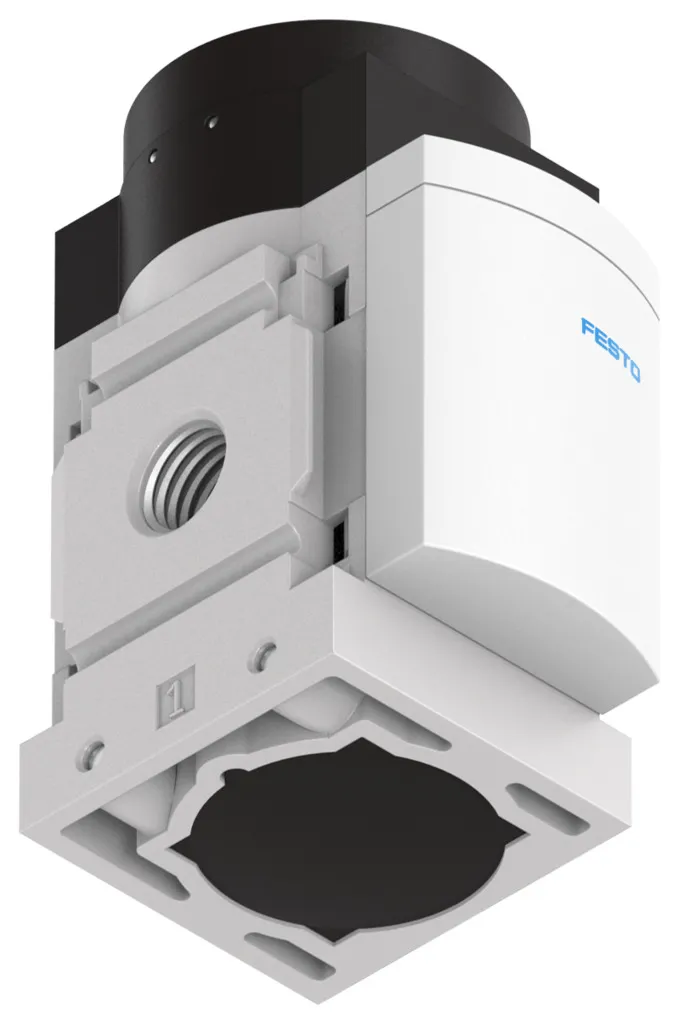

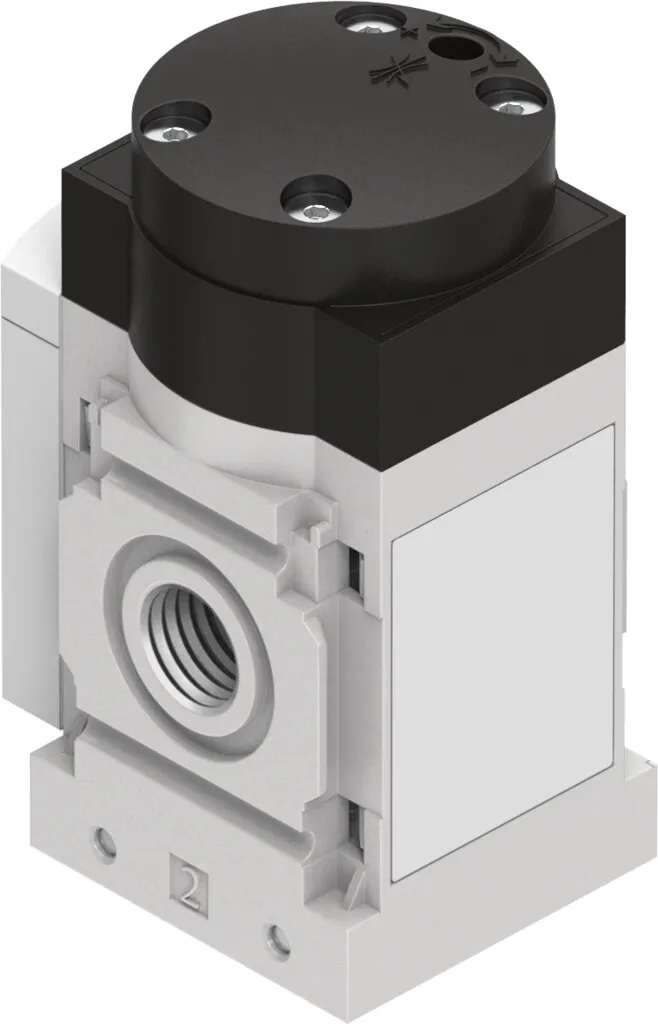

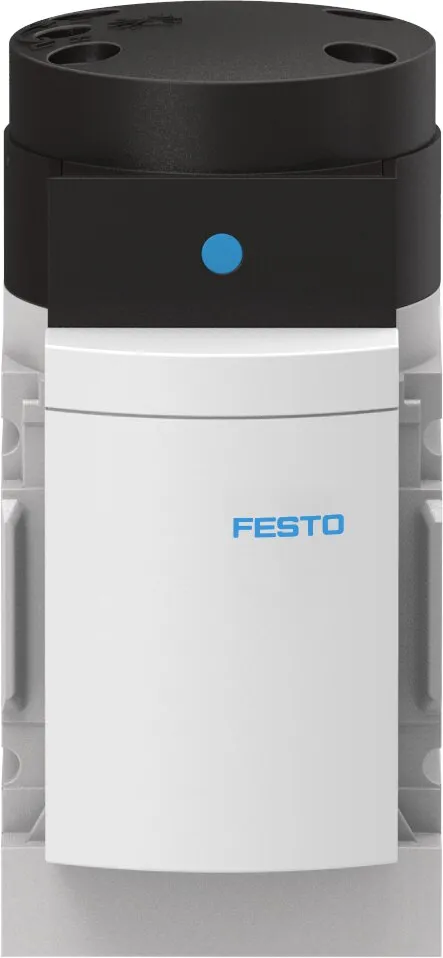

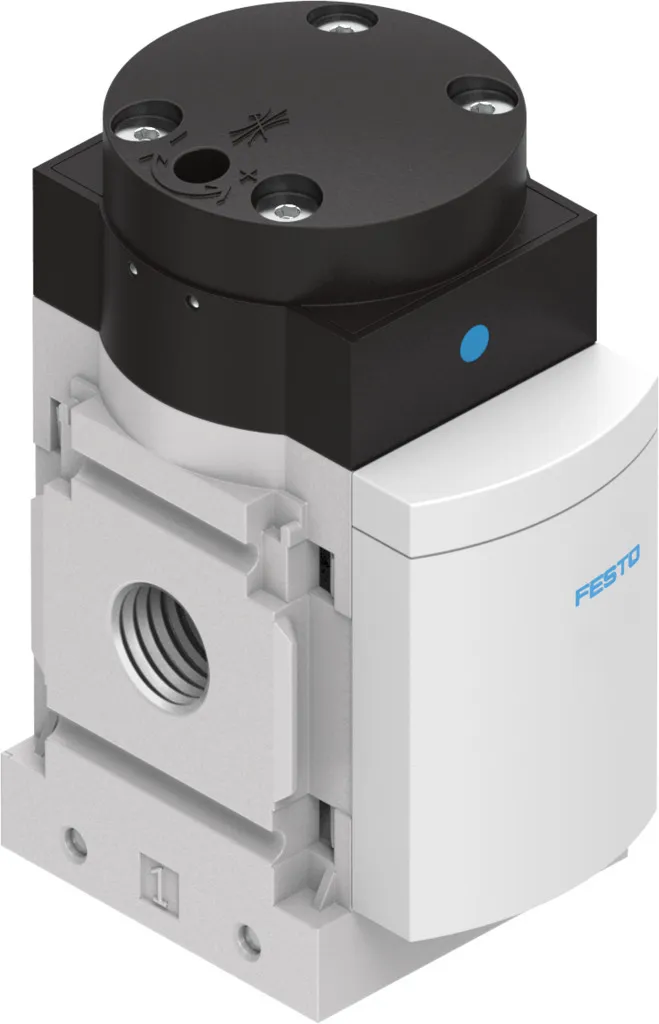

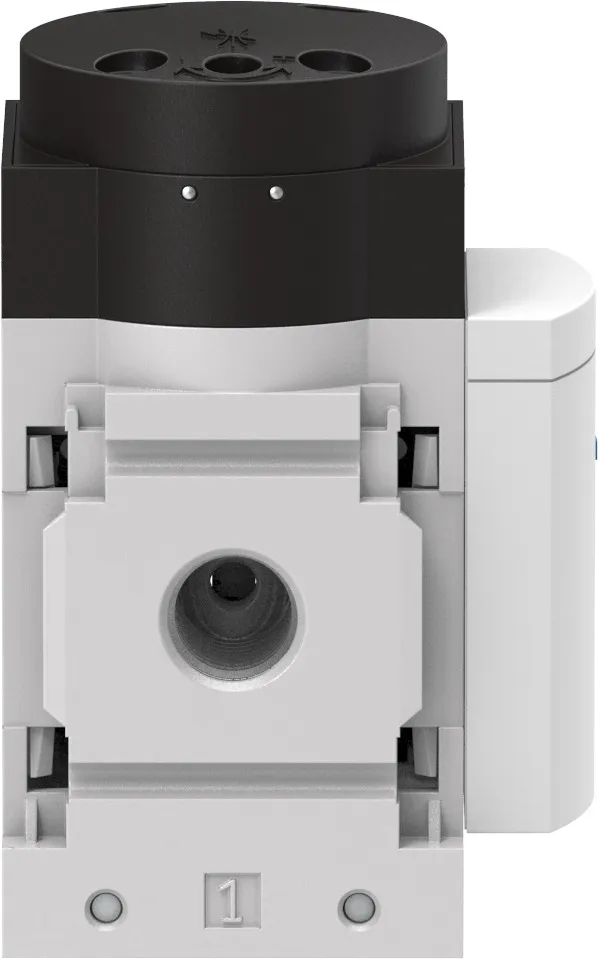

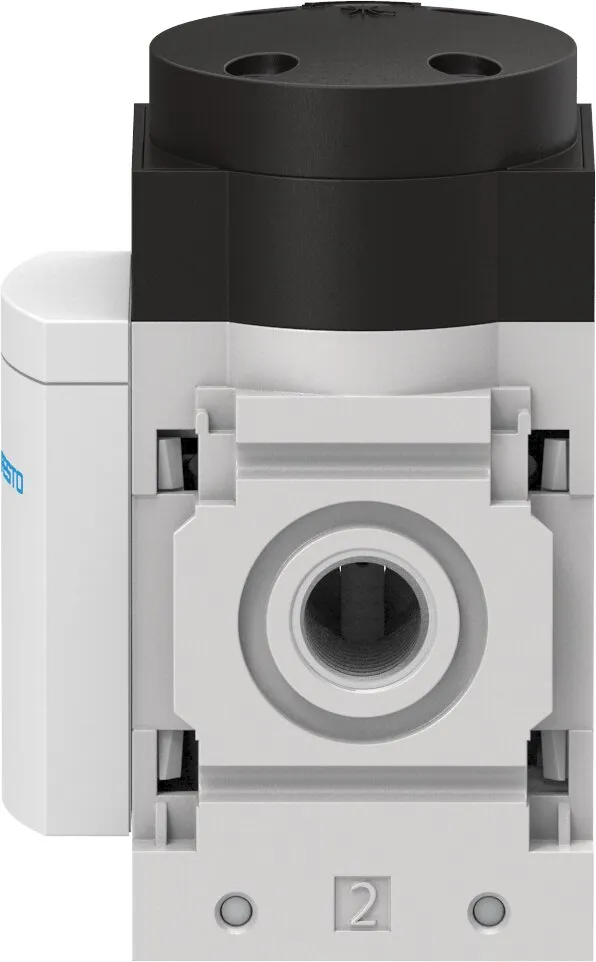

Festo MS4-DL
Grid dimension 40mm , 2/2-way valve for slowly pressurising pneumatic systems (for use with on/off valves EM(1) and EE) , For building up pressure gradually , Adjustable pressure build-up time
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 40mm , 2/2-way valve for slowly pressurising pneumatic systems (for use with on/off valves EM(1) and EE) , For building up pressure gradually , Adjustable pressure build-up time
Specification
| Exhaust Air Function |
With flow control option |
|---|---|
| Type Of Actuation |
Pneumatic |
| Mounting Position |
optional |
| Manual Override |
None |
| Design |
Piston seat |
| Type Of Reset |
Mechanical spring |
| Type Of Piloting |
Direct |
| Pilot Air Supply |
External |
| Flow Direction |
Non-reversible |
| Valve Function |
2/2 |
| Pressure Gauge (Analog) Or Pressure Display (Digital) |
Prepared for G1/4, Prepared for G1/8, Via pressure sensor, With pressure gauge |
| Operating Pressure |
4, 14 bar |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
1000, 2000 l/min |
| Approval |
c UL us – Recognized (OL) |
| Ce Mark (See Declaration Of Conformity) |
To EU Explosion Protection Directive (ATEX) |
| Ukca Marking (See Declaration Of Conformity) |
To UK EX instructions |
| Explosion Protection Certification Outside The Eu |
EPL Db (GB), EPL Gb (GB) |
| Explosion Protection |
Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX) |
| Atex Category Gas |
II 2G |
| Atex Category Dust |
II 2D |
| Explosion Ignition Protection Type For Gas |
Ex h IIC T6 Gb X |
| Explosion Ignition Protection Type For Dust |
Ex h IIIC T60°C Db X |
| Explosion Ambient Temperature |
-10 °C <= Ta <= +60 °C |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Suitable For Use With Food |
See supplementary material information |
| Media Temperature |
-10, 60 °C |
| Ambient Temperature |
-10, 60 °C |
| Product Weight |
213 g |
| Type Of Mounting |
In-line installation, With accessories |
| Note On Materials |
RoHS-compliant |
| Material Seals |
NBR |
| Material Housing |
Die-cast aluminium |
