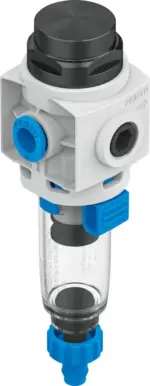

Festo MS2-LF-QS6-C-P-M-F1A-B
Very compact and extremely lightweight series for use close to the process directly in the machine , Lightweight and sturdy thanks to modern polymer materials , Compatible with the MS series for the i…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very compact and extremely lightweight series for use close to the process directly in the machine , Lightweight and sturdy thanks to modern polymer materials , Compatible with the MS series for the ideal combination of low-cost basic functionality and high-end functional requirements , With manual condensate drain, rotating , Grid dimension 25 mm , Variants recommended for production systems for manufacturing lithium-ion batteries
Specification
| Size |
2 |
|---|---|
| Series |
MS |
| Mounting Position |
Vertical +/-5° |
| Grade Of Filtration |
5 µm |
| Condensate Drain |
Manually rotating |
| Design |
Sintered filter with centrifugal separator |
| Symbol |
00991519 |
| Operating Pressure |
14.5, 145 psi |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
250 l/min |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Suitability For The Production Of Li Ion Batteries |
Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom Class |
Class 7 according to ISO 14644-1 |
| Storage Temperature |
-5, 50 °C |
| Air Purity Class At Output |
Compressed air to ISO 8573-1:2010 [6:4:4] |
| Media Temperature |
-5, 50 °C |
| Ambient Temperature |
-5, 50 °C |
| Product Weight |
42.1 g |
| Type Of Mounting |
Front panel mounting, In-line installation, With accessories |
| Pneumatic Connection, Port 1 |
QS-6 |
| Pneumatic Connection, Port 2 |
QS-6 |
| Note On Materials |
RoHS-compliant |
| Material Seals |
NBR |
| Material Spring |
High-alloy steel |
| Material Filter |
PE |
| Material Housing |
PA-reinforced |
| Material Membrane |
NBR |
| Material Bowl |
PC |
