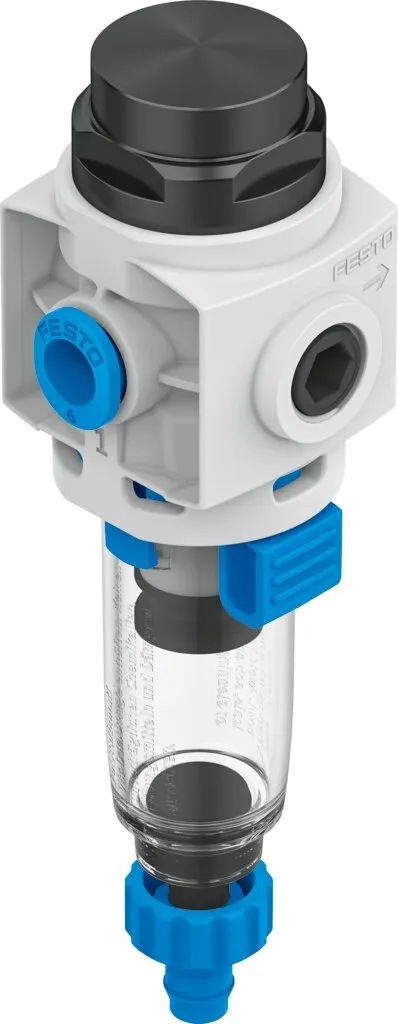

Festo MS2-LF-QS6-C-P-M-B
Very compact and extremely lightweight series for use close to the process directly in the machine , Lightweight and sturdy thanks to modern polymer materials , Compatible with the MS series for the i…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very compact and extremely lightweight series for use close to the process directly in the machine , Lightweight and sturdy thanks to modern polymer materials , Compatible with the MS series for the ideal combination of low-cost basic functionality and high-end functional requirements , With manual condensate drain, rotating , Grid dimension 25 mm , Variants recommended for production systems for manufacturing lithium-ion batteries
Specification
| Size | 2 |
|---|---|
| Series | MS |
| Mounting Position | Vertical +/-5° |
| Grade Of Filtration | 5 µm |
| Condensate Drain | Manually rotating |
| Design | Sintered filter with centrifugal separator |
| Symbol | 00991519 |
| Operating Pressure | 14.5, 145 psi |
| Standard Nominal Flow Rate (Standardised To Din 1343) | 250 l/min |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Cleanroom Class | Class 7 according to ISO 14644-1 |
| Storage Temperature | -5, 50 °C |
| Air Purity Class At Output | Compressed air to ISO 8573-1:2010 [6:4:4] |
| Media Temperature | -5, 50 °C |
| Ambient Temperature | -5, 50 °C |
| Product Weight | 42.1 g |
| Type Of Mounting | Front panel mounting, In-line installation, With accessories |
| Pneumatic Connection, Port 1 | QS-6 |
| Pneumatic Connection, Port 2 | QS-6 |
| Note On Materials | RoHS-compliant |
| Material Seals | NBR |
| Material Spring | High-alloy steel |
| Material Filter | PE |
| Material Housing | PA-reinforced |
| Material Membrane | NBR |
| Material Bowl | PC |
