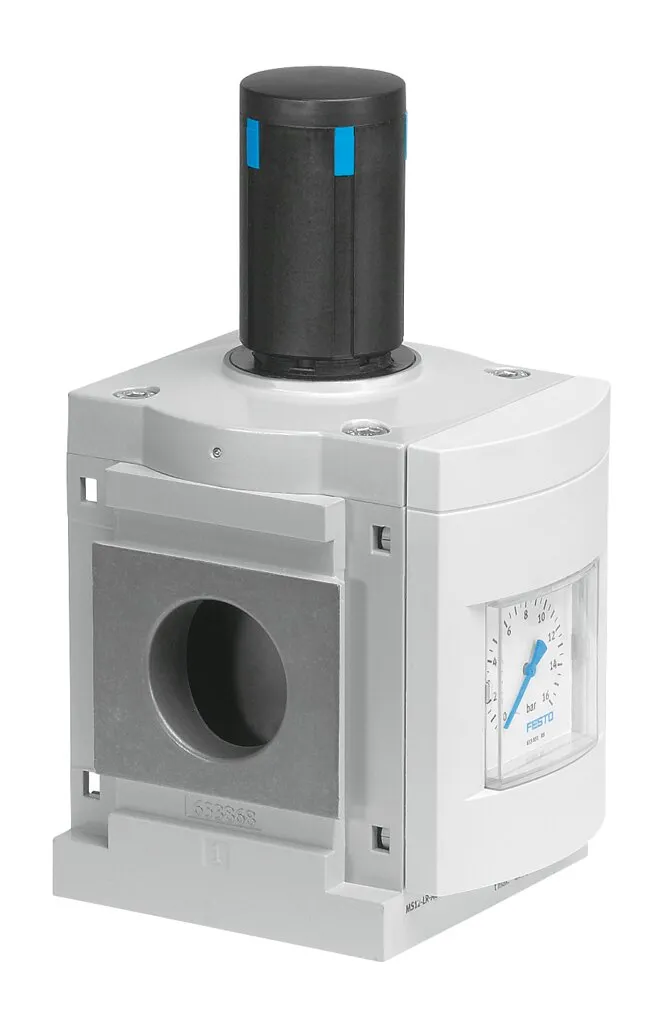

Festo MS12-LR-G-D7-LD-AS
Grid dimension 124 mm , High flow rate performance with minimal pressure drop , Good control characteristics with minimal pressure hysteresis and primary pressure compensation , With secondary exhaust…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 124 mm , High flow rate performance with minimal pressure drop , Good control characteristics with minimal pressure hysteresis and primary pressure compensation , With secondary exhausting , Lockable rotary knob , With or without pressure gauge , MS12-LR-…-PO: pneumatically actuated (pressure range determined by pilot regulator) , MS12-LR-…-PE6: electrically actuated (pilot control by proportional pressure regulator) , Sustainable operation thanks to reduced pressure level
Specification
| Size |
12 |
|---|---|
| Series |
MS |
| Actuator Lock |
Rotary knob with detent, can be closed with accessories |
| Mounting Position |
optional |
| Design |
Piloted diaphragm regulator |
| Controller Function |
Output pressure constant, Via primary pressure compensation, With secondary venting, With return flow function |
| Symbol |
00991558 |
| Pressure Gauge (Analog) Or Pressure Display (Digital) |
With pressure gauge |
| Operating Pressure |
0.8, 21 bar |
| Pressure Regulation Range |
0.5, 12 bar |
| Max. Pressure Hysteresis |
5.8 psi |
| Flow Rate Of Secondary Exhaust |
600 l/min |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
13000, 22000 l/min |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
-10, 60 °C |
| Media Temperature |
-10, 60 °C |
| Ambient Temperature |
-10, 60 °C |
| Product Weight |
4000 g |
| Type Of Mounting |
In-line installation, Via mounting bracket |
| Pneumatic Connection, Port 1 |
Sub-base |
| Pneumatic Connection, Port 2 |
Sub-base |
| Material Covering |
PA |
| Note On Materials |
RoHS-compliant |
| Material Control Panel |
PA-reinforced, POM |
| Material Underneath Cover |
Wrought aluminium alloy |
| Material Seals |
NBR |
| Material Spring |
Spring steel |
| Material Housing |
Die-cast aluminium |
| Material Membrane |
NBR |
| Material Valve Stem |
Wrought aluminium alloy, NBR, High-alloy stainless steel |
