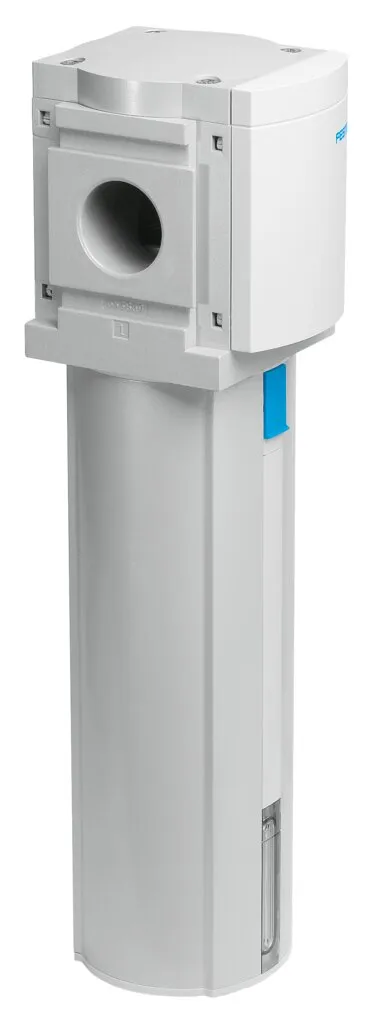

Festo MS12-LFX
Grid dimension 124 mm , Removal of gaseous oil particles from compressed air using activated carbon , Air quality class at the output [1.4.1] to ISO 8573-1 , Eliminates odours and vapours , Residual o…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 124 mm , Removal of gaseous oil particles from compressed air using activated carbon , Air quality class at the output [1.4.1] to ISO 8573-1 , Eliminates odours and vapours , Residual oil content = 0.003 mg/m³
Specification
| Size |
12 |
|---|---|
| Series |
MS |
| Mounting Position |
Vertical +/-5° |
| Design |
Activated carbon filter |
| Operating Pressure |
20 bar |
| Max. Standard Flow Rate For Clean Air Class |
5056, 15190 l/min |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
4800, 6000 l/min |
| Operating Medium |
Inert gases |
| Vibration Resistance |
Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
-10, 60 °C |
| Air Purity Class At Output |
Compressed air according to ISO 8573-1:2010 [3:4:1] |
| Media Temperature |
5, 30 °C |
| Residual Oil Content |
0.003 mg/m³ |
| Ambient Temperature |
-10, 60 °C |
| Type Of Mounting |
In-line installation, With accessories |
| Material Covering |
PA |
| Note On Materials |
RoHS-compliant |
| Material Sub Base |
Wrought aluminium alloy |
| Material Mounting Bracket |
Wrought aluminium alloy |
| Material Sight Glass Metal Bowl |
PC |
| Material Seals |
NBR |
| Material Filter |
Activated carbon |
| Material Housing |
Die-cast aluminium |
| Material Module Connector |
Wrought aluminium alloy |
| Material Bowl |
Wrought aluminium alloy |
