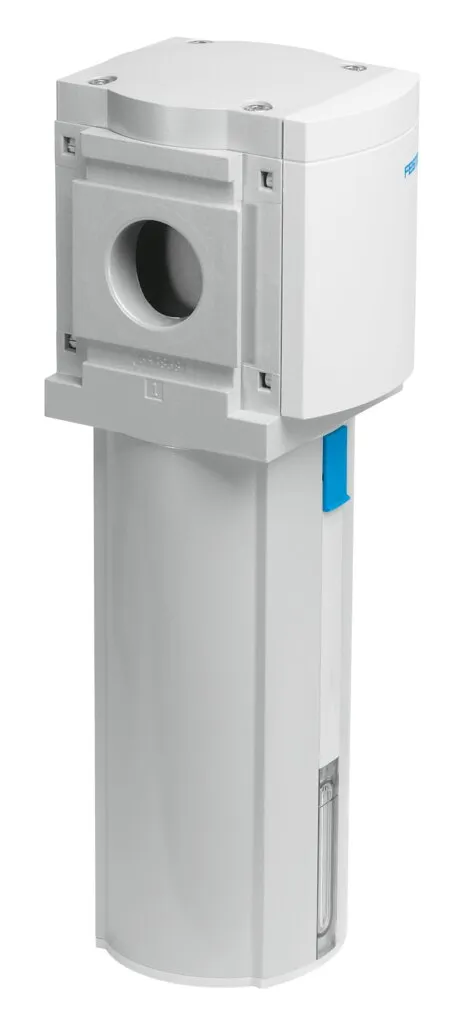

Festo MS12-LF-G-EUV
Grid dimension 124 mm , Good particle and condensate separation , High flow rate performance with minimal pressure drop , Available with manual, semi-automatic, fully automatic or fully automatic, ele…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 124 mm , Good particle and condensate separation , High flow rate performance with minimal pressure drop , Available with manual, semi-automatic, fully automatic or fully automatic, electrically actuated condensate drain
Specification
| Size | 12 |
|---|---|
| Series | MS |
| Mounting Position | Vertical +/-5° |
| Grade Of Filtration | 40 µm |
| Condensate Drain | Fully automatic, Manual, non-detenting |
| Design | Sintered filter with centrifugal separator |
| Bowl Guard | Integrated as metal bowl |
| Degree Of Condensate Separation | 75 % |
| Symbol | 00991519 |
| Operating Pressure | 2, 12 bar |
| Standard Nominal Flow Rate (Standardised To Din 1343) | 12500, 16000 l/min |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:9:-], Inert gases |
| Note On Operating And Pilot Medium | Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2] |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Storage Temperature | 5, 60 °C |
| Air Purity Class At Output | Compressed air to ISO 8573-1:2010 [7:8:4] |
| Media Temperature | 5, 60 °C |
| Ambient Temperature | 5, 60 °C |
| Pore Size | 40 µm |
| Service Life Value | 1000 std |
| Product Weight | 7000 g |
| Type Of Mounting | In-line installation, Via mounting bracket |
| Pneumatic Connection, Port 1 | Internal |
| Pneumatic Connection, Port 2 | Internal |
| Material Covering | PA |
| Material Seals | NBR |
| Material Filter | Sintered bronze |
| Material Housing | Die-cast aluminium |
| Material Bowl | Wrought aluminium alloy |
| Material Screen | PC |
