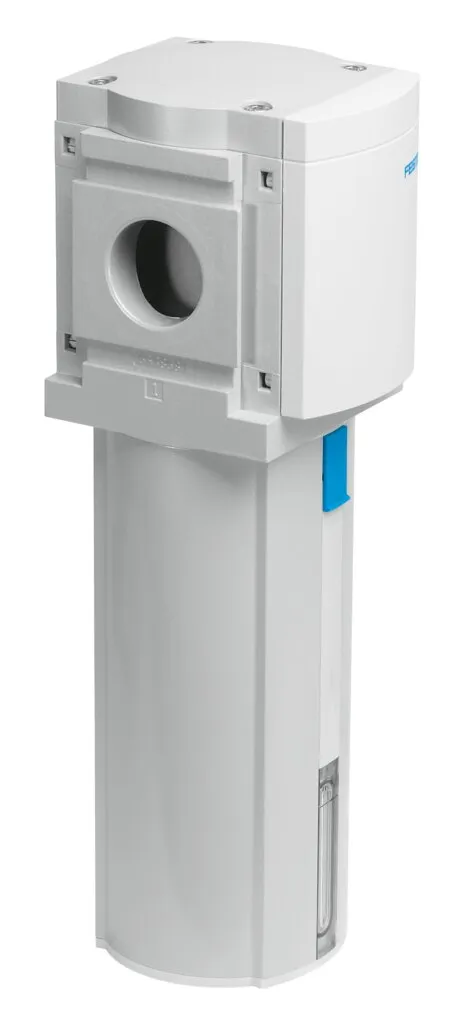

Festo MS12-LF-G-CUV
Grid dimension 124 mm , Good particle and condensate separation , High flow rate performance with minimal pressure drop , Available with manual, semi-automatic, fully automatic or fully automatic, ele…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 124 mm , Good particle and condensate separation , High flow rate performance with minimal pressure drop , Available with manual, semi-automatic, fully automatic or fully automatic, electrically actuated condensate drain
Specification
| Size |
12 |
|---|---|
| Series |
MS |
| Mounting Position |
Vertical +/-5° |
| Grade Of Filtration |
5 µm |
| Condensate Drain |
Fully automatic, Manual, non-detenting |
| Design |
Sintered filter with centrifugal separator |
| Bowl Guard |
Integrated as metal bowl |
| Degree Of Condensate Separation |
75 % |
| Symbol |
00991519 |
| Operating Pressure |
2, 12 bar |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
11500, 14000 l/min |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:9:-], Inert gases |
| Note On Operating And Pilot Medium |
Ester oil < 0.1mg/m³, according to ISO 8573-1:2010 [-:-:2] |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
5, 60 °C |
| Air Purity Class At Output |
Compressed air to ISO 8573-1:2010 [6:8:4] |
| Media Temperature |
5, 60 °C |
| Ambient Temperature |
5, 60 °C |
| Pore Size |
5 µm |
| Service Life Value |
1000 std |
| Product Weight |
7000 g |
| Type Of Mounting |
In-line installation, Via mounting bracket |
| Pneumatic Connection, Port 1 |
Internal |
| Pneumatic Connection, Port 2 |
Internal |
| Material Covering |
PA |
| Material Seals |
NBR |
| Material Filter |
Sintered bronze |
| Material Housing |
Die-cast aluminium |
| Material Bowl |
Wrought aluminium alloy |
| Material Screen |
PC |
