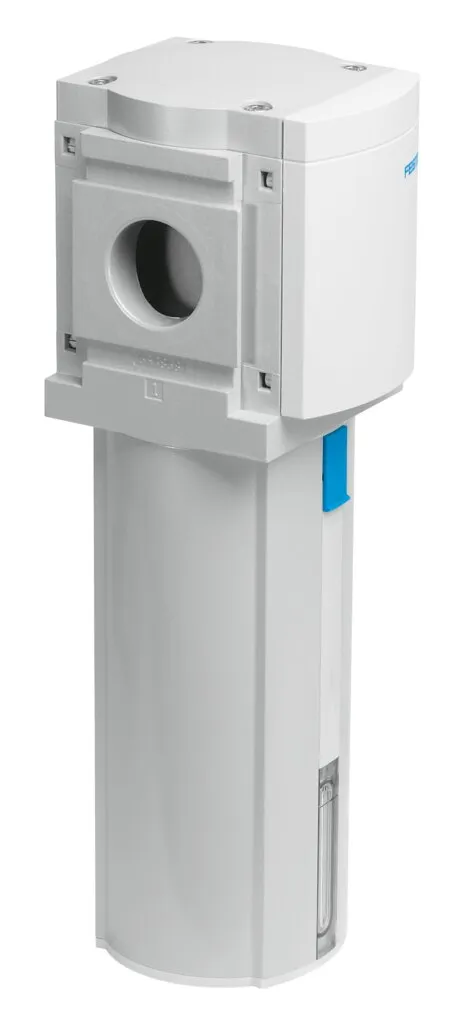

Festo MS12-LF
Grid dimension 124 mm , Good particle and condensate separation , High flow rate performance with minimal pressure drop , Available with manual, semi-automatic, fully automatic or fully automatic, ele…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 124 mm , Good particle and condensate separation , High flow rate performance with minimal pressure drop , Available with manual, semi-automatic, fully automatic or fully automatic, electrically actuated condensate drain
Specification
| Size |
12 |
|---|---|
| Series |
MS |
| Mounting Position |
Vertical +/-5° |
| Condensate Drain |
Fully automatic, Fully automatic, electrically actuated, Manual, non-detenting, Manually rotating |
| Design |
Sintered filter with centrifugal separator |
| Degree Of Condensate Separation |
75 % |
| Operating Pressure |
0.8, 20 bar |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:9:-], Inert gases |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Storage Temperature |
-10, 60 °C |
| Media Temperature |
-10, 60 °C |
| Ambient Temperature |
-10, 60 °C |
| Type Of Mounting |
In-line installation, With accessories |
| Pneumatic Connection, Port 1 |
Internal |
| Pneumatic Connection, Port 2 |
Internal |
| Material Housing |
Die-cast aluminium |
| Material Bowl |
Wrought aluminium alloy |
