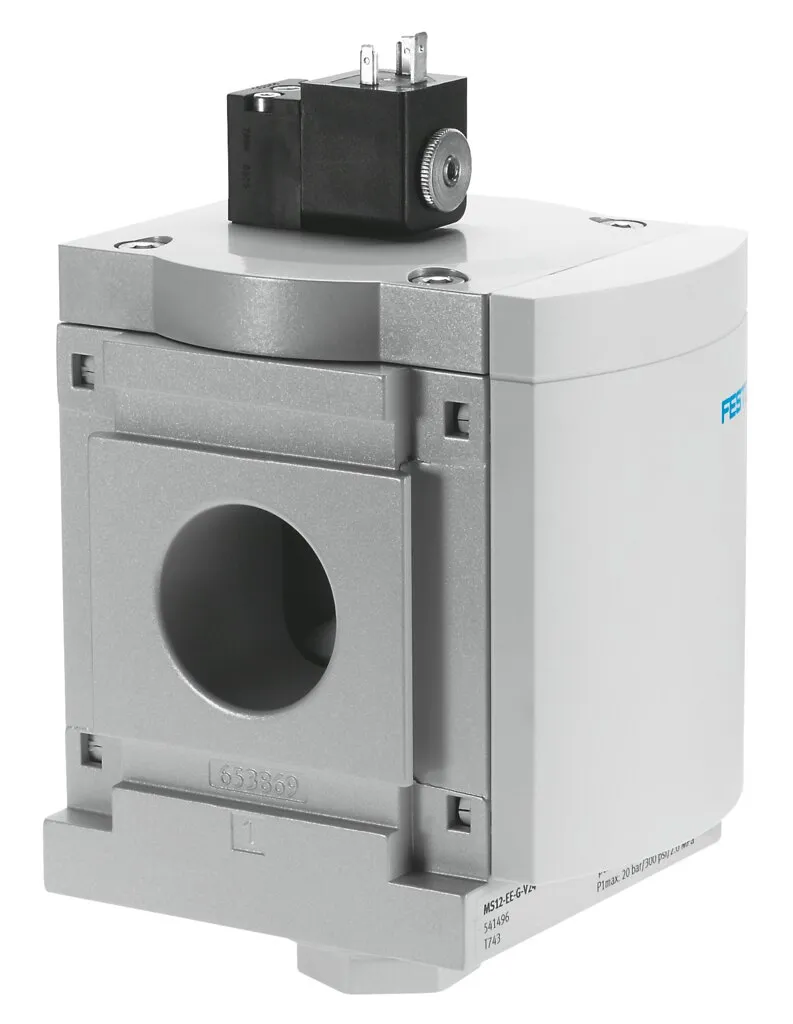

Festo MS12-EE
Grid dimension 124 mm , Electric 3/2-way valve for pressurising and exhausting pneumatic installations , A silencer can be attached or the exhaust air ducted at port 3 , Supply voltage 24 V DC, 110, 2…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 124 mm , Electric 3/2-way valve for pressurising and exhausting pneumatic installations , A silencer can be attached or the exhaust air ducted at port 3 , Supply voltage 24 V DC, 110, 230 V AC , Optionally with pressure gauge and pressure sensor , With solenoid coil, without plug socket
Specification
| Design |
Piston gate valve |
|---|---|
| Type Of Actuation |
Electric |
| Exhaust Air Function |
Without flow control option |
| Manual Override |
Detenting, Non-detenting |
| Type Of Reset |
Mechanical spring |
| Type Of Piloting |
Pilot actuated |
| Valve Function |
3/2-way, closed, monostable |
| Operating Pressure |
3, 16 bar |
| Lap |
Overlap |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
25000, 32000 l/min |
| Duty Cycle |
100% |
| Characteristic Coil Data |
230 V AC: 50 Hz, pick-up power 11.5 VA, holding power 9.1 VA, 230 V AC: 60 Hz, pick-up power 9.5 VA, holding power 6.4 VA, 24 V DC: 4.5 W |
| Permissible Voltage Fluctuations |
+/- 10 % |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Media Temperature |
-10, 50 °C |
| Degree Of Protection |
IP65 |
| Ambient Temperature |
-10, 50 °C |
| Ce Mark (See Declaration Of Conformity) |
To EU Low Voltage Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK regulations for electrical equipment |
| Type Of Mounting |
In-line installation, With accessories |
| Mounting Position |
optional |
| Flow Direction |
Non-reversible |
| Product Weight |
3800 g |
| Pneumatic Connection, Port 3 |
G1 |
| Pilot Air Supply |
Internal |
| Material Seals |
NBR |
| Material Housing |
Die-cast aluminium |
