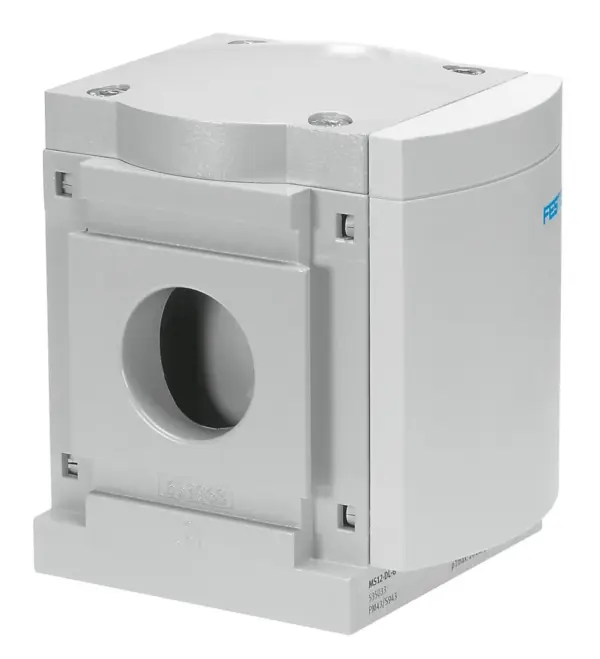

Festo MS12-DL
Grid dimension 124 mm , 2/2-way valve for slowly pressurising pneumatic systems (for use with on/off valves EM(1) and EE) , For building up pressure gradually , Adjustable pressure build-up time
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Grid dimension 124 mm , 2/2-way valve for slowly pressurising pneumatic systems (for use with on/off valves EM(1) and EE) , For building up pressure gradually , Adjustable pressure build-up time
Specification
| Exhaust Air Function |
With flow control option |
|---|---|
| Type Of Actuation |
Pneumatic |
| Mounting Position |
optional |
| Manual Override |
None |
| Design |
Piston seat |
| Type Of Reset |
Mechanical spring |
| Type Of Piloting |
Direct |
| Pilot Air Supply |
Internal |
| Flow Direction |
Non-reversible |
| Valve Function |
2/2 |
| Operating Pressure |
2, 20 bar |
| Standard Nominal Flow Rate (Standardised To Din 1343) |
25000, 42000 l/min |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Media Temperature |
-10, 60 °C |
| Ambient Temperature |
-10, 60 °C |
| Product Weight |
3600 g |
| Type Of Mounting |
In-line installation, With accessories |
| Material Seals |
NBR |
| Material Housing |
Die-cast aluminium |
