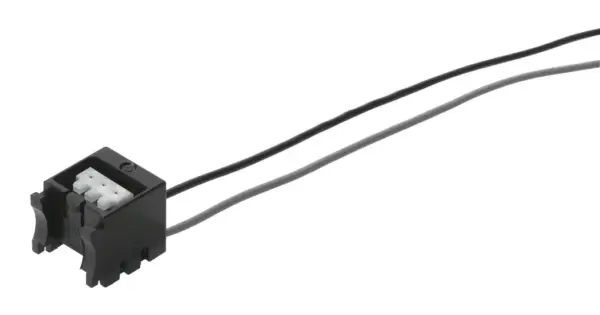

Festo MHAP-PI
Electrical plug-in base with plug pattern H , For sub-base valves and semi in-line valves MHA1-…-PI and MHP1-…-PI , Pre-assembled , Cable length 0.5 … 1 m , Ambient temperature -20 … +80 °C
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Electrical plug-in base with plug pattern H , For sub-base valves and semi in-line valves MHA1-…-PI and MHP1-…-PI , Pre-assembled , Cable length 0.5 … 1 m , Ambient temperature -20 … +80 °C
Specification
| Type Of Mounting |
Clip |
|---|---|
| Mounting Position |
optional |
| Product Weight |
4 g |
| Electrical Connection |
2-pin, Socket |
| Operational Voltage Range Dc |
60 V |
| Permissible Current Load |
3 A |
| Cable Length |
0.5 m |
| Cable Diameter |
1 mm |
| Cable Structure |
2 x 0.14 mm² |
| Degree Of Protection |
IP40 |
| Ambient Temperature |
-20, 80 °C |
| Ambient Temperature With Moving Cable |
-20, 50 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Material Housing |
PA |
| Material Electrical Contact |
Copper alloy, tin-plated |
