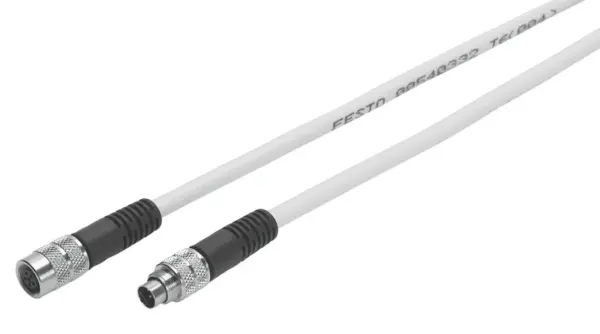

Festo KVI-CP-3-GS-GD-5
For fieldbus connection with thread M9x0.5 , Connecting cable between valve terminal and controller , Connecting cable between valve terminal and input/output modules , Connecting cable between contro…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For fieldbus connection with thread M9x0.5 , Connecting cable between valve terminal and controller , Connecting cable between valve terminal and input/output modules , Connecting cable between controller and input/output modules , Pre-assembled at both ends , Suitable for use with energy chains , Cable length 0.25 … 8 m , With PUR cable , Ambient temperature -20 … +80 °C
Specification
| Additional Functions |
Contact 3 of socket 1 mm leading |
|---|---|
| Cable Designation |
With accessories |
| Frequency Of Connection |
500 |
| Product Weight |
255.4 g |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M9x0.5 |
| Electrical Connection 1, Number Of Connections/Cores |
5 |
| Electrical Connection 1, Used Connections/Cores |
5 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock |
| Electrical Connection 1, Connection Pattern |
00995398 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Round |
| Electrical Connection 2, Connection Type |
Plugs |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
M9x0.5 |
| Electrical Connection 2, Number Of Connections/Cores |
5 |
| Electrical Connection 2, Used Connections/Cores |
5 |
| Electrical Connection 2, Type Of Mounting |
Screw-type lock |
| Electrical Connection 2, Connection Pattern |
00992012 |
| Operational Voltage Range Dc |
30 V |
| Current Rating At 40° C |
1.6 A |
| Note On Permissible Current Load At 40°C |
2.3 A for 0.34 mm², 3.6 A for 0.49 mm² |
| Immunity To Surge |
1.5 kV |
| Shielding |
yes |
| Cable Length |
5 m |
| Cable Characteristic |
Suitable for energy chains |
| Test Conditions Cable |
Test conditions on request |
| Bending Radius, Moving Cable |
75 mm |
| Cable Diameter |
5.5 mm |
| Cable Structure |
2 x 0.25 mm² + 2 x 0.34 mm² + 0.49 mm² |
| Nominal Cross Section Conductor |
0.49 mm² |
| Degree Of Protection |
IP65, IP67 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-20, 80 °C |
| Ambient Temperature With Moving Cable |
-5, 80 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
1 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Light grey |
| Material Housing |
PBT, TPE-U(PUR) |
| Housing Colour |
Black |
| Material Screw Type Lock |
Nickel-plated brass |
| Material Electrical Contact |
Gold-plated bronze, Gold-plated brass |
| Material Insulating Sheath |
TPE-U(PUR) |
