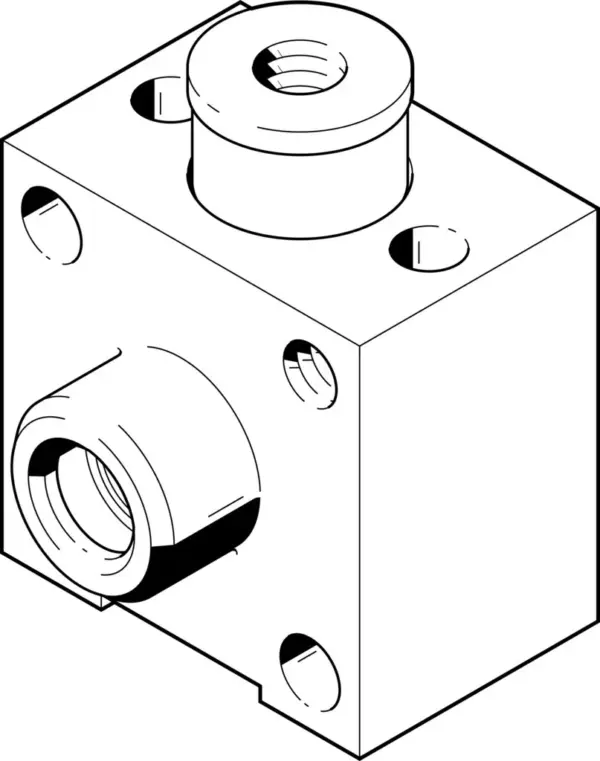

Festo KPE-4
Ready-to-install combination of clamping cartridge KP and housing , Wide range of mounting options
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ready-to-install combination of clamping cartridge KP and housing , Wide range of mounting options
Specification
| Mounting Position | optional |
|---|---|
| Type Of Clamping With Direction Of Action | on both sides, Clamping via spring force, released via compressed air |
| Design | Tilting wedge mechanism |
| Variants | Piston rod at one end |
| Position Detection | Without |
| Safety Function | Holding and stopping a movement |
| Operating Pressure | 43.5, 145 psi |
| Release Pressure | 3 bar |
| Round Material To Be Clamped | 4 mm |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Ambient Temperature | -10, 80 °C |
| Static Holding Force | 80 N |
| Product Weight | 100 g |
| Note On Materials | RoHS-compliant |
| Material Seals | NBR, TPE-U(PU) |
| Material Spring | Spring steel |
| Material Housing | Anodised |
| Material Clamp Jaws | Brass |
| Material Piston | POM |
