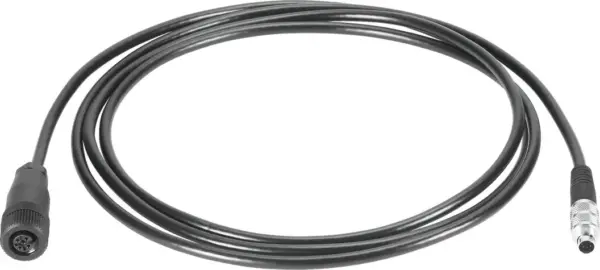

Festo KMPYE-AIF-1-GS-GD-0,3
For solenoid coils with thread M12x1 A-coded according to EN 61076-2-101 , For connecting proportional directional control valves MPYE with end-position controller SPC11 , Cable length 0.3 … 5 m , W…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils with thread M12x1 A-coded according to EN 61076-2-101 , For connecting proportional directional control valves MPYE with end-position controller SPC11 , Cable length 0.3 … 5 m , With PVC or PUR cable , Ambient temperature -25 … +80 °C
Specification
| Conforms To Standard |
EN 61076-2-101 |
|---|---|
| Additional Functions |
Product-specific pin allocation |
| Cable Designation |
With accessories |
| Frequency Of Connection |
500 |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Round |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Straight |
| Electrical Connection 1, Connector System |
M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores |
4 |
| Electrical Connection 1, Used Connections/Cores |
4 |
| Electrical Connection 1, Type Of Mounting |
Screw-type lock with 18 mm A/F and longitudinal knurl |
| Electrical Connection 1, Connection Pattern |
00995385 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Design |
Round |
| Electrical Connection 2, Connection Type |
Plugs |
| Electrical Connection 2, Cable Outlet |
Straight |
| Electrical Connection 2, Connector System |
M9x0.5 |
| Electrical Connection 2, Number Of Connections/Cores |
7 |
| Electrical Connection 2, Used Connections/Cores |
6 |
| Electrical Connection 2, Type Of Mounting |
Screw-type lock |
| Electrical Connection 2, Connection Pattern |
00995748 |
| Operational Voltage Range Dc |
50 V |
| Current Rating At 40° C |
1 A |
| Immunity To Surge |
2 kV |
| Shielding |
yes |
| Cable Length |
0.3 m |
| Cable Characteristic |
Suitable for energy chains |
| Test Conditions Cable |
Test conditions on request |
| Bending Radius, Moving Cable |
75 mm |
| Cable Diameter |
5.6 mm |
| Cable Structure |
8 x 0.24 mm² |
| Nominal Cross Section Conductor |
0.24 mm² |
| Degree Of Protection |
IP65 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-25, 85 °C |
| Ambient Temperature With Moving Cable |
-5, 80 °C |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
1 |
| Material Cable Sheath |
TPE-U(PUR) |
| Cable Sheath Colour |
Black |
