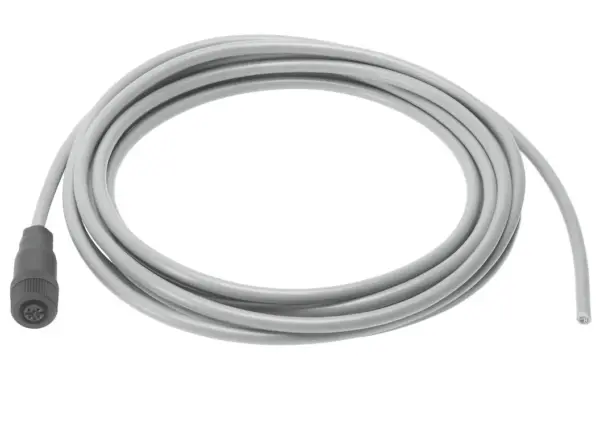

Festo KMPYE-5
For solenoid coils with thread M12x1 A-coded according to EN 61076-2-101 , For connecting proportional directional control valves MPYE with end-position controller SPC11 , Cable length 0.3 … 5 m , W…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils with thread M12x1 A-coded according to EN 61076-2-101 , For connecting proportional directional control valves MPYE with end-position controller SPC11 , Cable length 0.3 … 5 m , With PVC or PUR cable , Ambient temperature -25 … +80 °C
Specification
| Conforms To Standard | EN 61076-2-101 |
|---|---|
| Cable Designation | With accessories |
| Product Weight | 305 g |
| Electrical Connection 1, Function | Field device side |
| Electrical Connection 1, Design | Round |
| Electrical Connection 1, Connection Type | Socket |
| Electrical Connection 1, Cable Outlet | Straight |
| Electrical Connection 1, Connector System | M12x1, A-coded to EN 61076-2-101 |
| Electrical Connection 1, Number Of Connections/Cores | 4 |
| Electrical Connection 1, Used Connections/Cores | 4 |
| Electrical Connection 1, Type Of Mounting | Screw-type lock with 18Â mm hexagon and longitudinal knurl |
| Electrical Connection 1, Connection Pattern | 00995385 |
| Electrical Connection 2, Function | Controller side |
| Electrical Connection 2, Connection Type | Cable |
| Electrical Connection 2, Connector System | Open end |
| Electrical Connection 2, Number Of Connections/Cores | 4 |
| Electrical Connection 2, Used Connections/Cores | 4 |
| Operational Voltage Range Dc | 30 V |
| Nominal Operating Voltage Dc | 24 V |
| Permissible Current Load | 4 A |
| Immunity To Surge | 2.5 kV |
| Shielding | yes |
| Cable Length | 5 m |
| Test Conditions Cable | Test conditions on request |
| Bending Radius, Moving Cable | 90 mm |
| Cable Diameter | 6.2 mm |
| Cable Diameter Tolerance | ± 0.3 mm |
| Cable Structure | 4 x 0.25 mm² |
| Nominal Cross Section Conductor | 0.25 mm² |
| Wire Ends | Cut off bluntly |
| Degree Of Protection | IP65 |
| Note On Degree Of Protection | In assembled state |
| Ambient Temperature | -40, 80 °C |
| Ambient Temperature With Moving Cable | -25, 80 °C |
| Ce Mark (See Declaration Of Conformity) | In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK RoHS instructions |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Note On Materials | RoHS-compliant |
| Pollution Degree | 3 |
| Material Cable Sheath | PVC |
| Cable Sheath Colour | Grey |
| Material Housing | PA |
| Housing Colour | Black |
| Material Screw Type Lock | PA |
| Material Electrical Contact | Brass |
