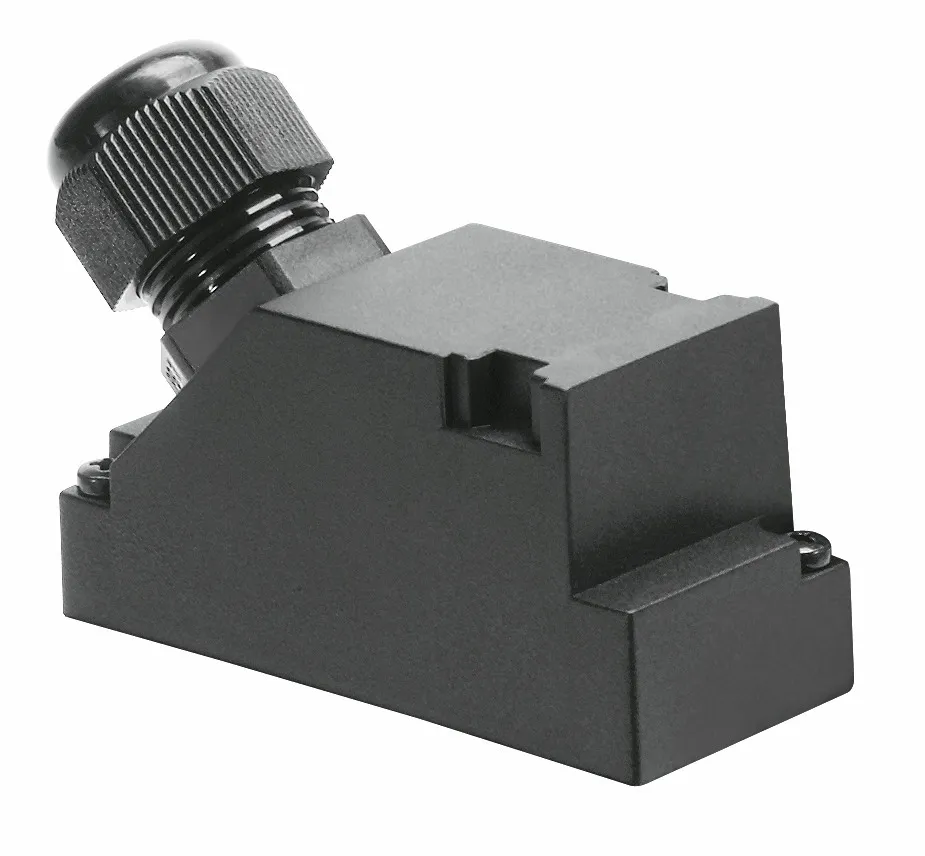

Festo KMP3-25P-16-
Plug socket with cable for multi-pin plug connection , Pre-assembled , Mounting via union nut, with 2 screws
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Plug socket with cable for multi-pin plug connection , Pre-assembled , Mounting via union nut, with 2 screws
Specification
| Based On Standard |
DIN 41652 |
|---|---|
| Cable Designation |
With accessories |
| Frequency Of Connection |
50 |
| Electrical Connection 1, Function |
Field device side |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Angled |
| Electrical Connection 1, Connector System |
Sub-D |
| Electrical Connection 1, Number Of Connections/Cores |
25 |
| Electrical Connection 1, Used Connections/Cores |
18 |
| Electrical Connection 1, Type Of Mounting |
2x screw M3 |
| Electrical Connection 1, Connection Pattern |
00995642 |
| Electrical Connection 2, Function |
Controller side |
| Electrical Connection 2, Connection Type |
Cable |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
18 |
| Electrical Connection 2, Used Connections/Cores |
18 |
| Operational Voltage Range Dc |
30 V |
| Nominal Operating Voltage Dc |
24 V |
| Current Rating At 40° C |
3 A |
| Immunity To Surge |
1 kV |
| Cable Length |
1, 99 m |
| Cable Characteristic |
Standard |
| Test Conditions Cable |
Test conditions on request |
| Bending Radius, Fixed Cable |
45 mm |
| Bending Radius, Moving Cable |
90 mm |
| Cable Diameter |
8.5 mm |
| Cable Diameter Tolerance |
± 0.5 mm |
| Cable Structure |
18 x 0.34 mm² |
| Nominal Cross Section Conductor |
0.34 mm² |
| Wire Ends |
Cut off bluntly |
| Degree Of Protection |
IP65 |
| Note On Degree Of Protection |
In assembled state |
| Ambient Temperature |
-25, 70 °C |
| Ambient Temperature With Moving Cable |
-5, 70 °C |
| Storage Temperature |
-25, 75 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Pollution Degree |
3 |
| Material Cable Sheath |
PVC |
| Cable Sheath Colour |
Grey |
| Material Housing |
PA |
| Material Seals |
NBR |
| Material Electrical Contact |
Gold-plated copper alloy |
