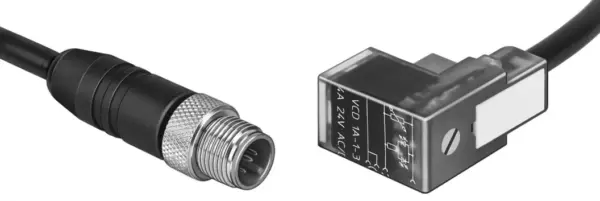

Festo KMEB-2-24-M12-0,5-LED
For solenoid coils with plug pattern type C according to EN 175301-803 , For EB solenoid coils , Cable length 0.5 … 10 m , With PVC or PUR cable , Ambient temperature -20 … +80 °C
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils with plug pattern type C according to EN 175301-803 , For EB solenoid coils , Cable length 0.5 … 10 m , With PVC or PUR cable , Ambient temperature -20 … +80 °C
Specification
| Switching Position Indicator |
LED |
|---|---|
| Type Of Mounting |
On solenoid valve via M2.5 central screw |
| Mounting Position |
optional |
| Electrical Connection |
5-pin, Angled socket, Type C, To DIN EN 175301-803 |
| Nominal Operating Voltage Dc |
24 V |
| Protective Conductor Connection |
Available |
| Cable Length |
0.5 m |
| Cable Diameter |
4.6 mm |
| Cable Structure |
3 x 0.5 mm² |
| Degree Of Protection |
IP65, To IEC 60529 |
| Ambient Temperature |
-5, 50 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Material Cable Sheath |
TPE-U(PU) |
| Cable Sheath Colour |
Black |
| Material Housing |
POM |
| Housing Colour |
Transparent |
| Material Electrical Contact |
Bronze |
