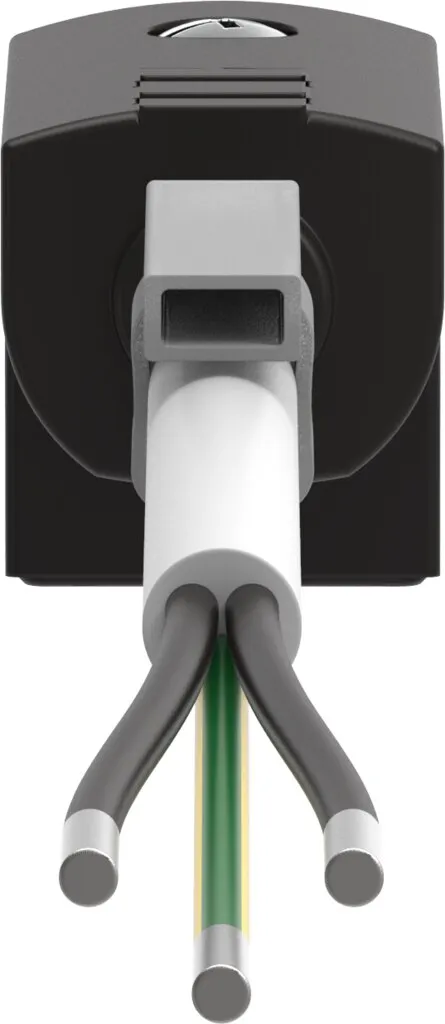

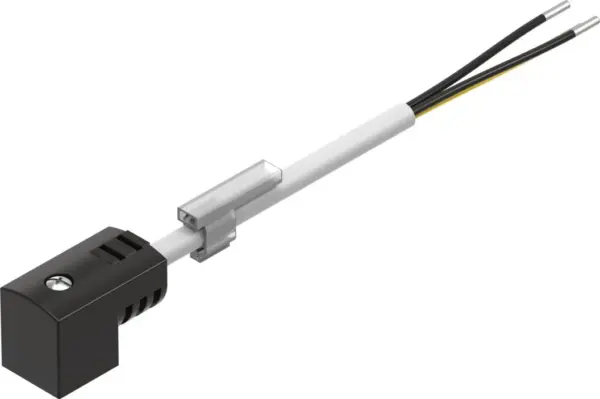

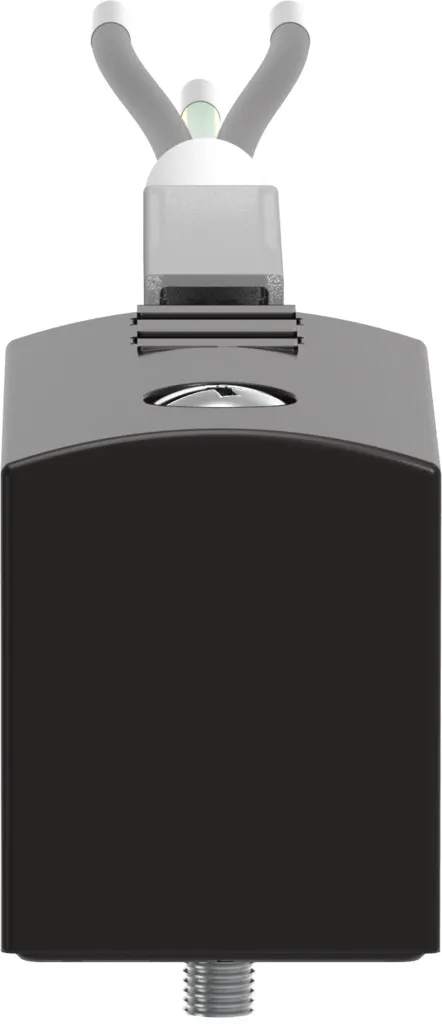

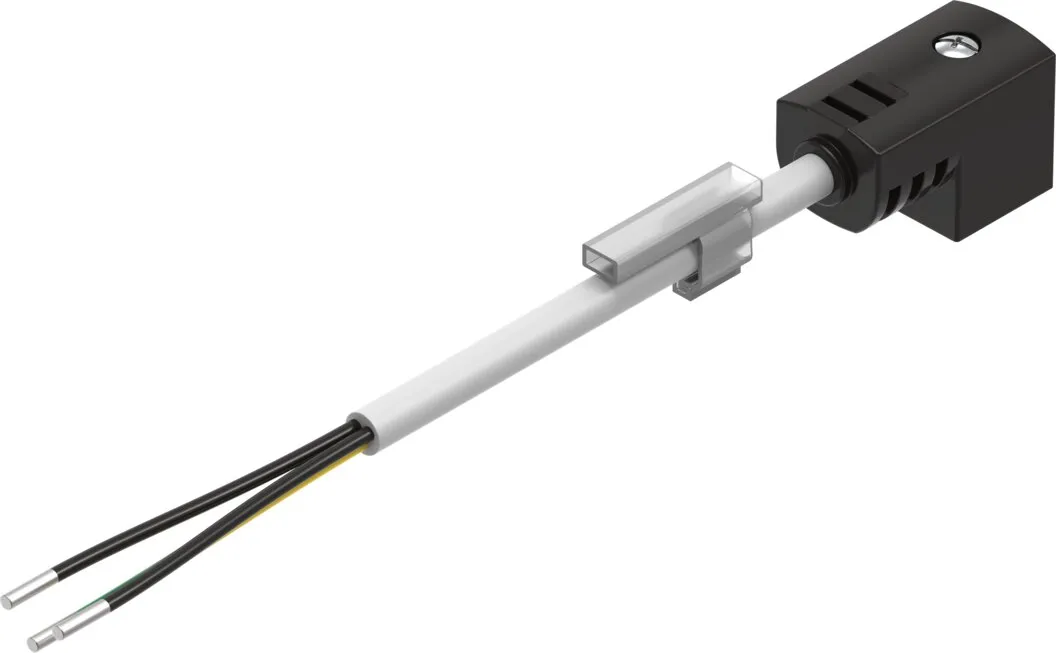

Festo KMEB-1-24-10-LED
For solenoid coils with plug pattern type C according to EN 175301-803 , For EB solenoid coils , Cable length 0.5 … 10 m , With PVC or PUR cable , Ambient temperature -20 … +80 °C
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils with plug pattern type C according to EN 175301-803 , For EB solenoid coils , Cable length 0.5 … 10 m , With PVC or PUR cable , Ambient temperature -20 … +80 °C
Specification
| Signal Status Display |
Yellow LED |
|---|---|
| Mounting Position |
optional |
| Product Weight |
460 g |
| Electrical Connection 1 |
Socket, to EN 175301-803, type C |
| Electrical Connection 1, Design |
Angular |
| Electrical Connection 1, Connection Type |
Socket |
| Electrical Connection 1, Cable Outlet |
Angled |
| Electrical Connection 1, Note On Cable Outlet |
90° |
| Electrical Connection 1, Number Of Connections/Cores |
3 |
| Electrical Connection 1, Type Of Mounting |
On solenoid valve via M2.5 central screw |
| Electrical Connection 2, Connector System |
Open end |
| Electrical Connection 2, Number Of Connections/Cores |
3 |
| Nominal Operating Voltage Dc |
24 V |
| Immunity To Surge |
0.8 kV |
| Protective Conductor Connection |
Available |
| Cable Length |
10 m |
| Cable Characteristic |
Standard |
| Cable Diameter |
5.2 mm |
| Cable Structure |
3 x 0.5 mm² |
| Wire Ends |
Wire ferrule |
| Degree Of Protection |
IP65, To IEC 60529 |
| Ambient Temperature |
-20, 80 °C |
| Ce Mark (See Declaration Of Conformity) |
In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) |
To UK RoHS instructions |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Pollution Degree |
3 |
| Corrosion Resistance Class Crc |
1 – Low corrosion stress |
| Material Cable Sheath |
PVC |
| Material Housing |
PA66-GF30 |
| Material Seals |
NBR |
| Material Electrical Contact |
Silver-plated copper alloy |
