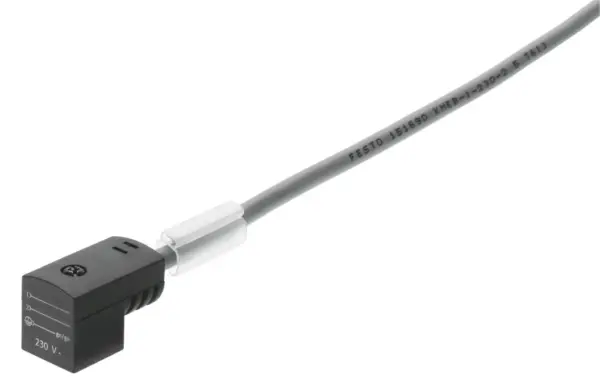

Festo KMEB-1-230AC-2.5
For solenoid coils with plug pattern type C according to EN 175301-803 , For EB solenoid coils , Cable length 0.5 … 10 m , With PVC or PUR cable , Ambient temperature -20 … +80 °C
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils with plug pattern type C according to EN 175301-803 , For EB solenoid coils , Cable length 0.5 … 10 m , With PVC or PUR cable , Ambient temperature -20 … +80 °C
Specification
| Mounting Position | optional |
|---|---|
| Product Weight | 125 g |
| Electrical Connection 1 | Socket, to EN 175301-803, type C |
| Electrical Connection 1, Design | Angular |
| Electrical Connection 1, Connection Type | Socket |
| Electrical Connection 1, Cable Outlet | Angled |
| Electrical Connection 1, Note On Cable Outlet | 90° |
| Electrical Connection 1, Number Of Connections/Cores | 3 |
| Electrical Connection 1, Type Of Mounting | On solenoid valve via M2.5 central screw |
| Electrical Connection 2, Connector System | Open end |
| Electrical Connection 2, Number Of Connections/Cores | 3 |
| Nominal Operating Voltage Ac | 230 V |
| Immunity To Surge | 4 kV |
| Protective Conductor Connection | Available |
| Cable Length | 2.5 m |
| Cable Characteristic | Standard |
| Cable Diameter | 5.2 mm |
| Cable Structure | 3 x 0.5 mm² |
| Wire Ends | Wire ferrule |
| Degree Of Protection | IP65, To IEC 60529 |
| Ambient Temperature | -20, 80 °C |
| Ce Mark (See Declaration Of Conformity) | To EU Low Voltage Directive, In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK RoHS instructions, To UK regulations for electrical equipment |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Pollution Degree | 3 |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress |
| Material Cable Sheath | PVC |
| Material Housing | PA66-GF30 |
| Material Seals | NBR |
| Material Electrical Contact | Silver-plated copper alloy |
