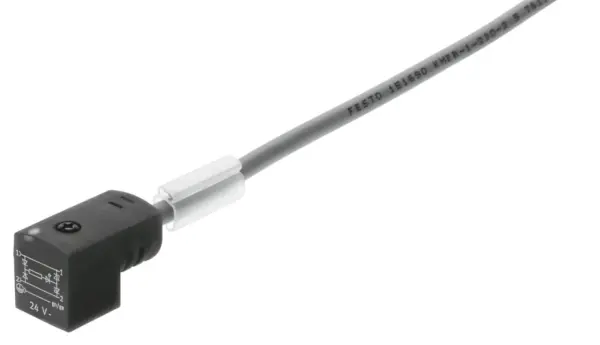

Festo KME-1-24-2.5-LED
For solenoid coils with plug pattern type C as per industrial standard, 9.4 mm , For E solenoid coils , With PVC cable , Cable length 2.5 … 10 m , Ambient temperature -20 … +80 °C
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For solenoid coils with plug pattern type C as per industrial standard, 9.4 mm , For E solenoid coils , With PVC cable , Cable length 2.5 … 10 m , Ambient temperature -20 … +80 °C
Specification
| Signal Status Display | Yellow LED |
|---|---|
| Type Of Mounting | On solenoid valve via M3 central screw |
| Mounting Position | optional |
| Product Weight | 135 g |
| Electrical Connection 1 | Angled socket, square design, 3-pin, type C |
| Electrical Connection 2 | Open end, 2-wire |
| Nominal Operating Voltage Dc | 24 V |
| Current Rating At 40° C | 4 A |
| Protective Conductor Connection | Not available |
| Cable Length | 2.5 m |
| Cable Characteristic | For static applications |
| Min. Cable Bending Radius | 52 mm |
| Cable Diameter | 5.2 mm |
| Cable Diameter Tolerance | ± 0.1 mm |
| Cable Structure | 2 x 0.75 mm² |
| Degree Of Protection | IP67, To IEC 60529 |
| Ambient Temperature | -20, 80 °C |
| Ce Mark (See Declaration Of Conformity) | In accordance with EU RoHS Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK RoHS instructions |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress |
| Material Cable Sheath | PVC |
| Material Housing | TPE-U(PU) |
| Material Seals | NBR |
| Material Electrical Contact | Silver-plated copper alloy |
