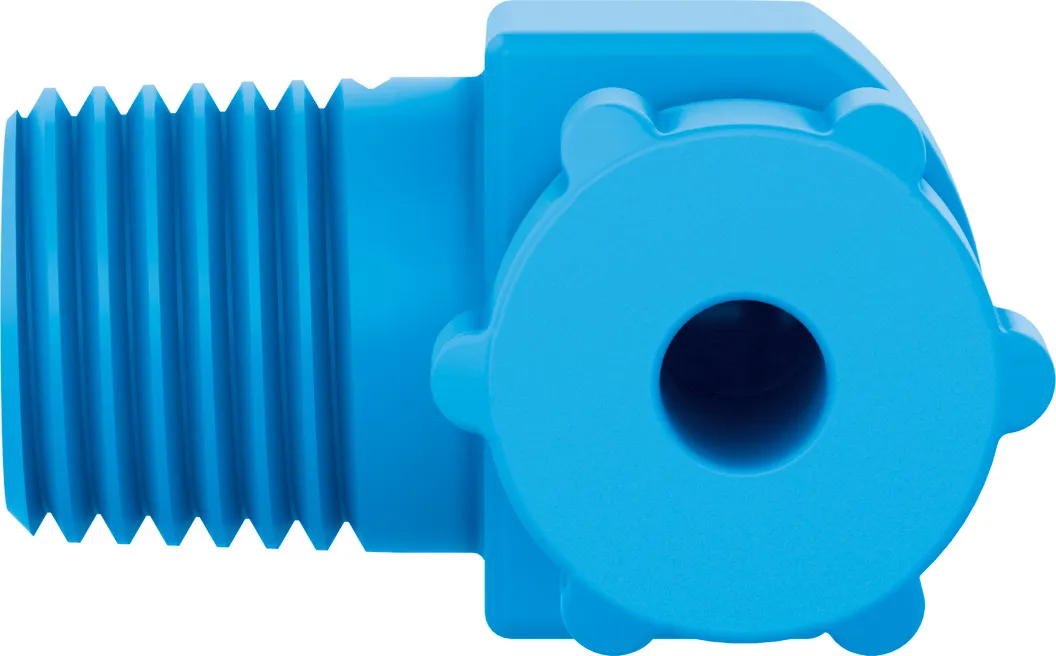

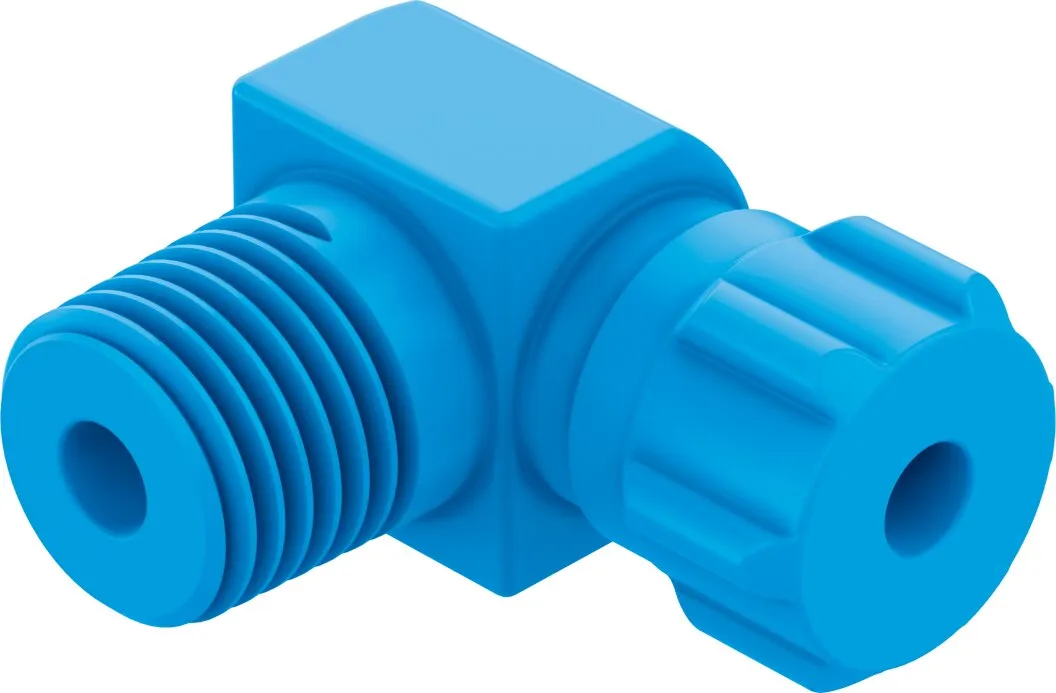

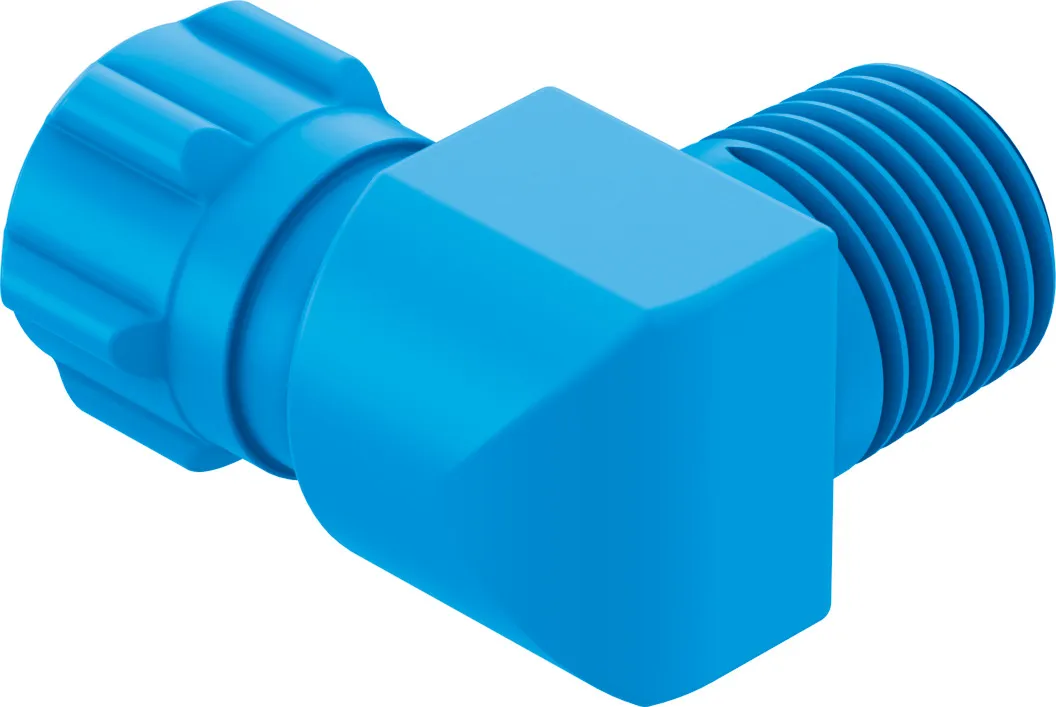

Festo GCK-1/4-PK-4-KU
Bulkhead quick connector , Sealing cap for plastic tube fittings and barbed fittings , Multiple distributor , Union nut for CK tube fitting , Operating media: compressed air, vacuum, (water) , Alumini…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Bulkhead quick connector , Sealing cap for plastic tube fittings and barbed fittings , Multiple distributor , Union nut for CK tube fitting , Operating media: compressed air, vacuum, (water) , Aluminium, steel, POM or zinc , Straight design, L-shaped, T-shaped
Specification
| Nominal Size |
2.9 mm |
|---|---|
| Mounting Position |
optional |
| Design |
L-shape |
| Size Of Pack |
10 |
| Operating Pressure Complete Temperature Range |
-13.775, 145 psi |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note On Operating And Pilot Medium |
Lubricated operation possible |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
-10, 60 °C |
| Pneumatic Connection, Port 1 |
Male thread R1/4 |
| Pneumatic Connection, Port 2 |
For tubing outside diameter of 6 mm, For barbed fitting inside diameter of 4 mm with nut |
| Material Union Nut |
POM |
| Material Screwed Plug |
POM |
| Note On Materials |
RoHS-compliant |
