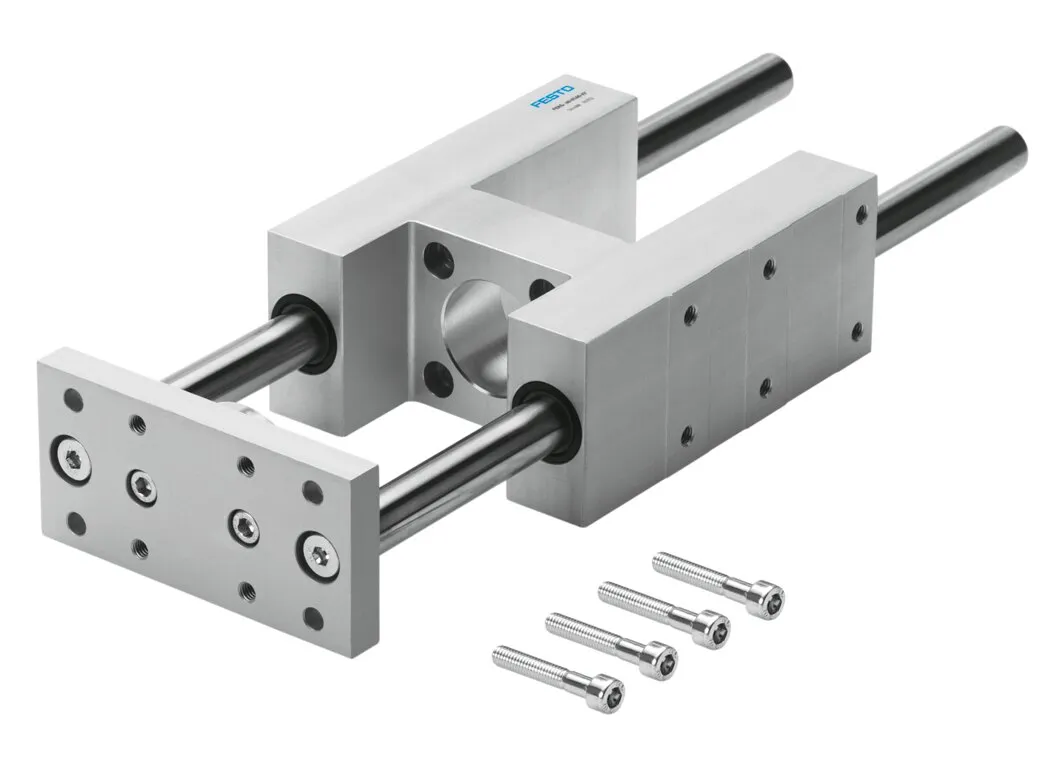

Festo FENG-80- -GF
For protecting standards-based cylinders against rotation at high torque loads , Plain or recirculating ball bearing guide , High guide precision for workpiece handling
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For protecting standards-based cylinders against rotation at high torque loads , Plain or recirculating ball bearing guide , High guide precision for workpiece handling
Specification
| Size |
80 |
|---|---|
| Stroke |
10, 500 mm |
| Mounting Position |
optional |
| Guide |
Plain-bearing guide |
| Design |
Guidance |
| Explosion Protection |
The information in the certificate must be observed! |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Ambient Temperature |
-20, 80 °C |
| Displacement Force |
70 N |
| Moving Mass For Mm Stroke |
4955 g |
| Additional Moving Mass Per 10 Mm Stroke |
76 g |
| Basic Weight For Mm Stroke |
10720 g |
| Additional Weight Per 10 Mm Stroke |
76 g |
| Centre Of Gravity At Mm Stroke |
54 mm |
| Centre Of Gravity Additional Of Moving Mass Per 10 Mm |
3.9 mm |
| Type Of Mounting |
Via female thread |
| Note On Materials |
RoHS-compliant |
| Material Guide Component |
High-alloy steel |
| Material Housing |
Anodised wrought aluminium alloy |
| Material Yoke Plate |
Tempered steel |
