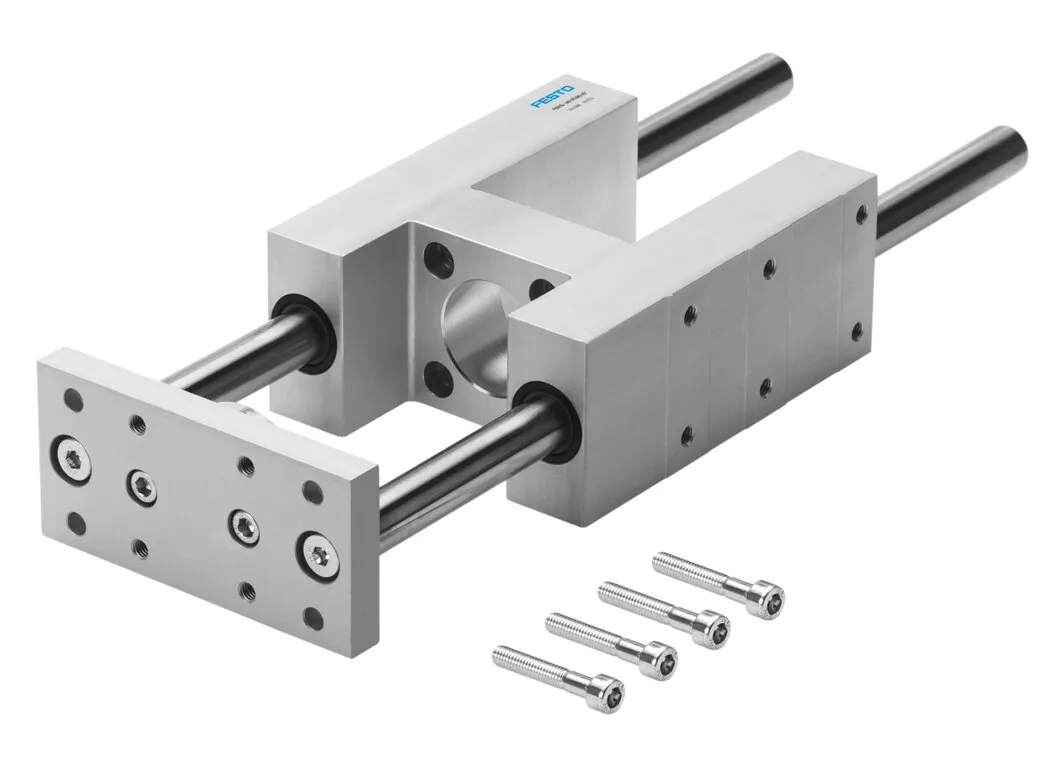

Festo FENG-80-500-KF
For protecting standards-based cylinders against rotation at high torque loads , Plain or recirculating ball bearing guide , High guide precision for workpiece handling
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For protecting standards-based cylinders against rotation at high torque loads , Plain or recirculating ball bearing guide , High guide precision for workpiece handling
Specification
| Size | 80 |
|---|---|
| Stroke | 500 mm |
| Mounting Position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Guidance |
| Explosion Protection | The information in the certificate must be observed! |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Ambient Temperature | -20, 80 °C |
| Max. Force Fy | 2300 N |
| Max. Force Fy Static | 3120 N |
| Max. Force Fz | 2300 N |
| Max. Force Fz Static | 3120 N |
| Max. Moment Mx | 170 Nm |
| Max. Torque Mx Static | 231 Nm |
| Max. Moment My | 191 Nm |
| Max. Torque My Static | 259 Nm |
| Max. Moment Mz | 191 Nm |
| Max. Torque Mz Static | 259 Nm |
| Displacement Force | 40 N |
| Product Weight | 14280 g |
| Type Of Mounting | Via female thread |
| Note On Materials | RoHS-compliant |
| Material Guide Component | Tempered steel |
| Material Housing | Anodised wrought aluminium alloy |
| Material Yoke Plate | Tempered steel |
