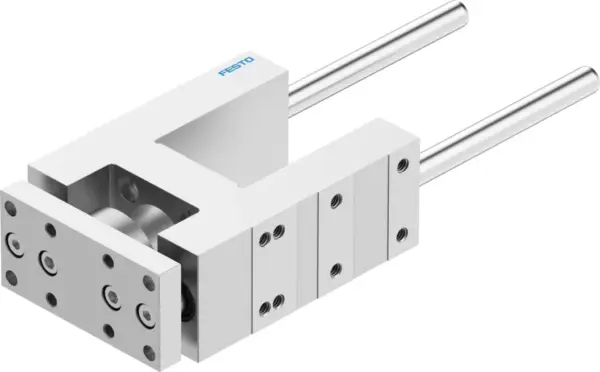

Festo FENG-32- -KF
For protecting standards-based cylinders against rotation at high torque loads , Plain or recirculating ball bearing guide , High guide precision for workpiece handling
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For protecting standards-based cylinders against rotation at high torque loads , Plain or recirculating ball bearing guide , High guide precision for workpiece handling
Specification
| Size | 32 |
|---|---|
| Stroke | 10, 500 mm |
| Mounting Position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Guidance |
| Explosion Protection | The information in the certificate must be observed! |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Ambient Temperature | -20, 80 °C |
| Max. Force Fy | 750 N |
| Max. Force Fy Static | 1020 N |
| Max. Force Fz | 750 N |
| Max. Force Fz Static | 1020 N |
| Max. Moment Mx | 28 Nm |
| Max. Torque Mx Static | 38 Nm |
| Max. Moment My | 34 Nm |
| Max. Torque My Static | 46 Nm |
| Max. Moment Mz | 34 Nm |
| Max. Torque Mz Static | 46 Nm |
| Displacement Force | 15 N |
| Moving Mass For Mm Stroke | 483 g |
| Additional Moving Mass Per 10 Mm Stroke | 18 g |
| Basic Weight For Mm Stroke | 1530 g |
| Additional Weight Per 10 Mm Stroke | 18 g |
| Centre Of Gravity At Mm Stroke | 43 mm |
| Centre Of Gravity Additional Of Moving Mass Per 10 Mm | 4.5 mm |
| Type Of Mounting | Via female thread |
| Note On Materials | RoHS-compliant |
| Material Guide Component | Tempered steel |
| Material Housing | Anodised wrought aluminium alloy |
| Material Yoke Plate | Anodised wrought aluminium alloy |
