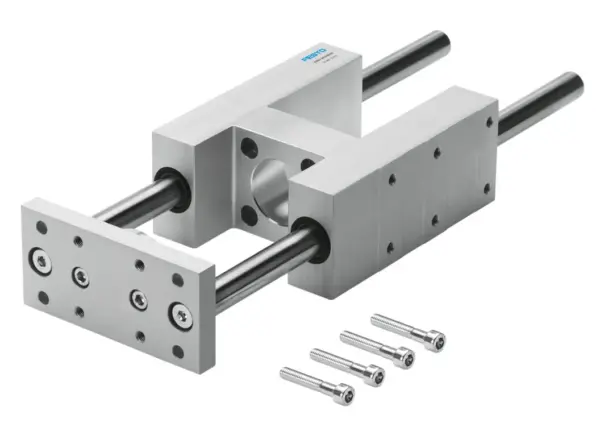

Festo FENG-100-160-KF
For protecting standards-based cylinders against rotation at high torque loads , Plain or recirculating ball bearing guide , High guide precision for workpiece handling
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For protecting standards-based cylinders against rotation at high torque loads , Plain or recirculating ball bearing guide , High guide precision for workpiece handling
Specification
| Size |
100 |
|---|---|
| Stroke |
160 mm |
| Mounting Position |
optional |
| Guide |
Recirculating ball bearing guide |
| Design |
Guidance |
| Explosion Protection |
The information in the certificate must be observed! |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Ambient Temperature |
-20, 80 °C |
| Max. Force Fy |
2300 N |
| Max. Force Fy Static |
3120 N |
| Max. Force Fz |
2300 N |
| Max. Force Fz Static |
3120 N |
| Max. Moment Mx |
198 Nm |
| Max. Torque Mx Static |
268 Nm |
| Max. Moment My |
197 Nm |
| Max. Torque My Static |
267 Nm |
| Max. Moment Mz |
197 Nm |
| Max. Torque Mz Static |
267 Nm |
| Displacement Force |
40 N |
| Product Weight |
14222 g |
| Type Of Mounting |
Via female thread |
| Note On Materials |
RoHS-compliant |
| Material Guide Component |
Tempered steel |
| Material Housing |
Anodised wrought aluminium alloy |
| Material Yoke Plate |
Tempered steel |
