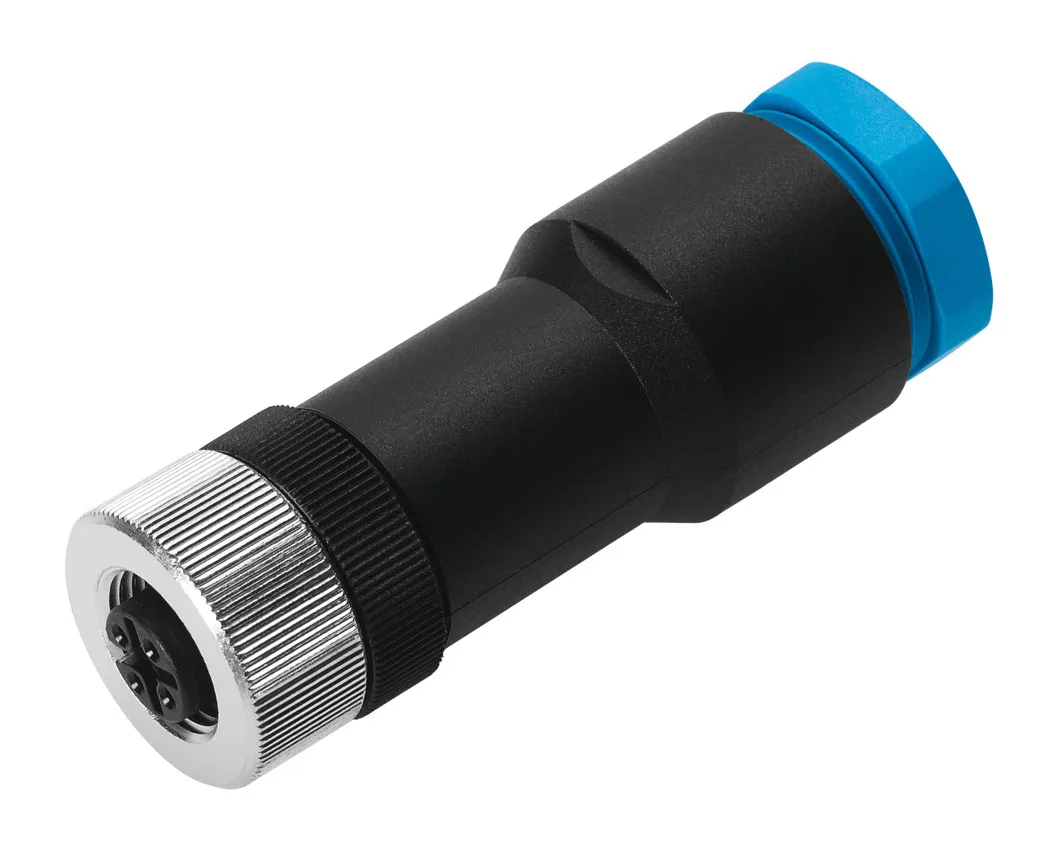

Festo FBSD-GD-13,5
For fieldbus interface , Straight or angled design
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For fieldbus interface , Straight or angled design
Specification
| Based On Standard | EN 61076-2-101, EN 61984 |
|---|---|
| Type Of Mounting | Via union nut |
| Mounting Position | optional |
| Product Weight | 40 g |
| Electrical Connection | 4-pin, Straight socket/screw terminal, Type A, M12x1 |
| Operational Voltage Range Dc | 250 V |
| Operational Voltage Range Ac | 250 V |
| Current Rating At 40° C | 4 A |
| Immunity To Surge | 2.5 kV |
| Cable Fitting | Pg 13.5 |
| Permissible Cable Diameter | 10, 12 mm |
| Connection Cross Section | 0.75 mm² |
| Degree Of Protection | IP67 |
| Ambient Temperature | -40, 85 °C |
| Ce Mark (See Declaration Of Conformity) | To EU Low Voltage Directive |
| Ukca Marking (See Declaration Of Conformity) | To UK regulations for electrical equipment |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Note On Materials | RoHS-compliant |
| Pollution Degree | 3 |
| Corrosion Resistance Class Crc | 1 – Low corrosion stress |
| Material Housing | PA-reinforced |
| Housing Colour | Black |
| Material Union Nut | Die-cast zinc, Nickel-plated |
| Material Electrical Contact | Bronze, White bronze coated |
