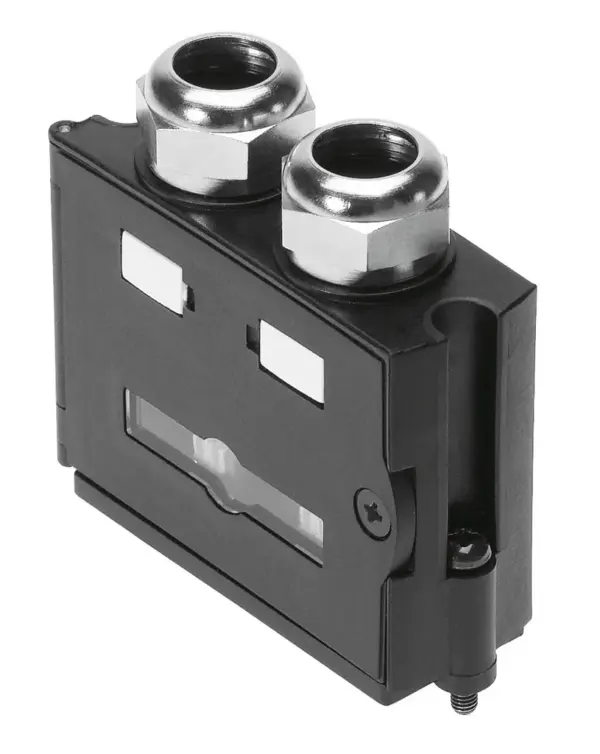

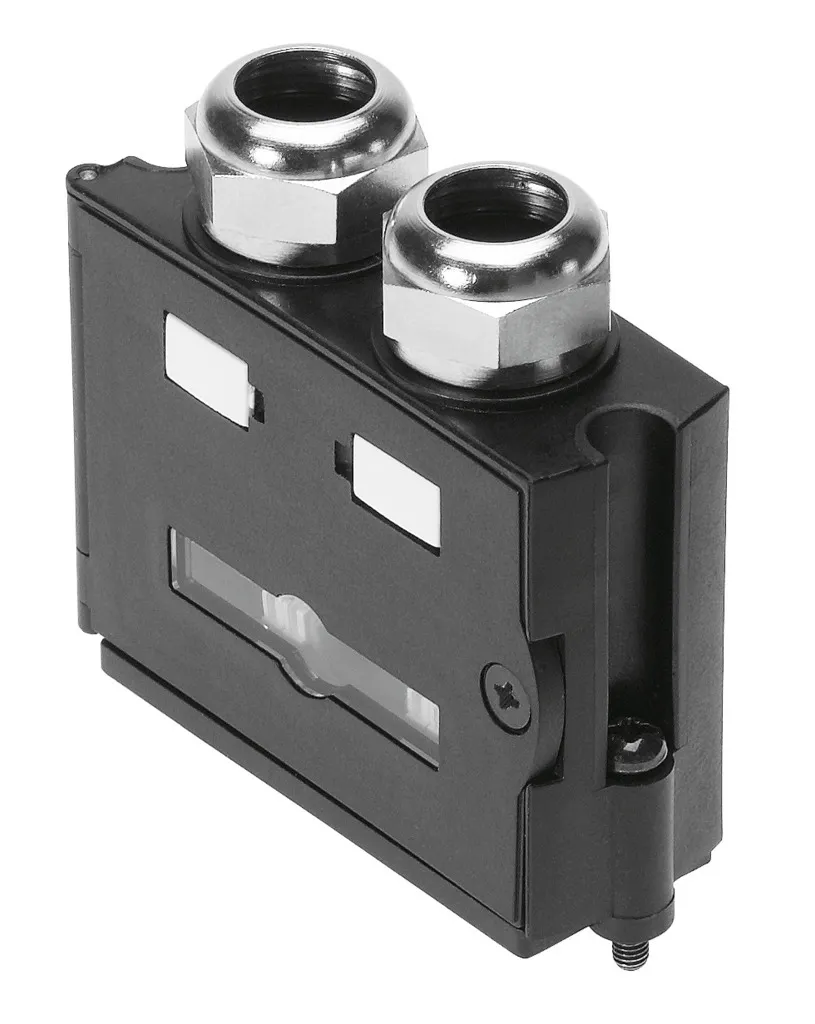

Festo FBS-SUB-9-GS-2X4POL-B
Fieldbus plug with 9-pin Sub-D connection , Variants for different fieldbus systems , Position of DIL switches can be read externally , Easy assembly
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fieldbus plug with 9-pin Sub-D connection , Variants for different fieldbus systems , Position of DIL switches can be read externally , Easy assembly
Specification
| Width |
20 mm |
|---|---|
| Height |
62 mm |
| Length |
61 mm |
| Protocol |
CC-Link |
| Product Weight |
60 g |
| Field Bus Interface |
2x 4 spring-loaded terminals |
| Note On Fieldbus Interface |
BUS In – BUS Out looped through |
| Permissible Cable Diameter |
5, 10 mm |
| Degree Of Protection |
IP65, IP67, In assembled state, To IEC 60529 |
| Ambient Temperature |
50 °C |
| Storage Temperature |
-20, 70 °C |
| Relative Air Humidity |
95 %, Non-condensing |
| Labs (Pwis) Conformity |
VDMA24364-B2-L |
| Note On Materials |
RoHS-compliant |
| Material Housing |
PA-reinforced |
| Material Union Nut |
Brass |
| Material Screws |
Steel |
| Material Seals |
NBR |
