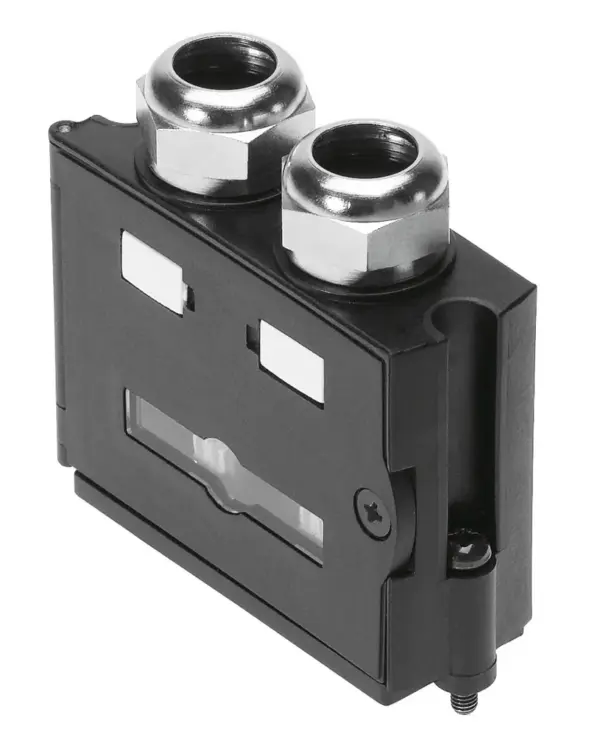

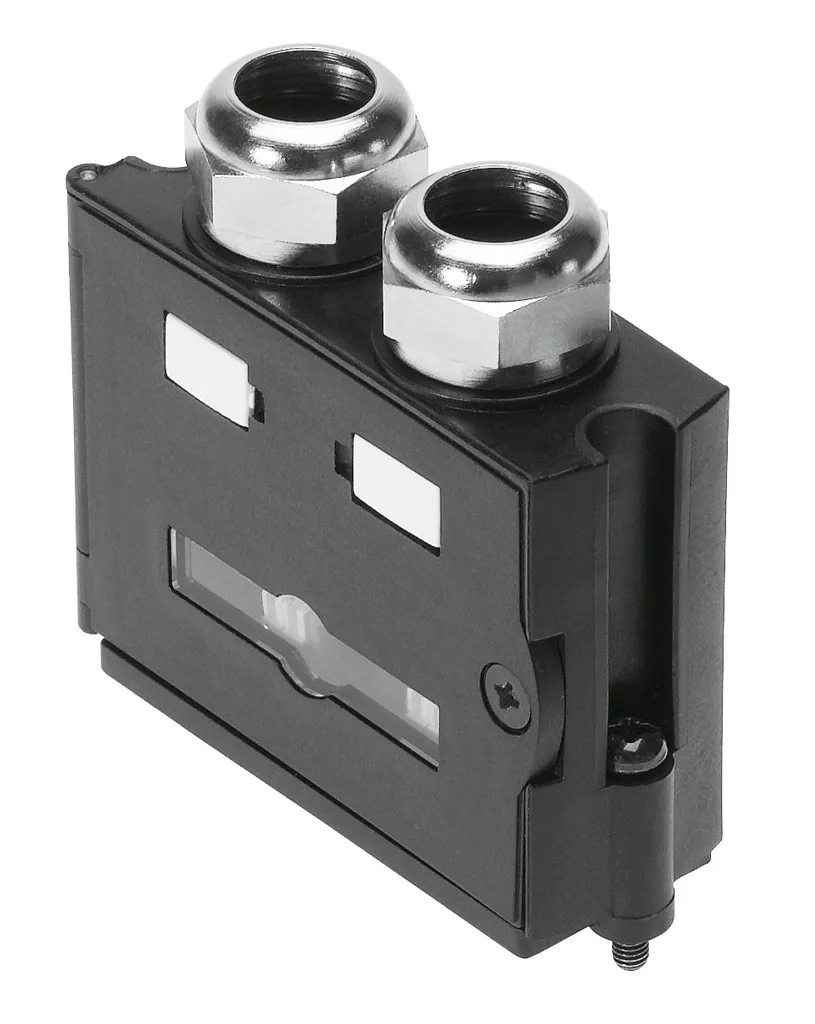

Festo FBS-SUB-9-BU-2X5POL-B
Fieldbus plug with 9-pin Sub-D connection , Variants for different fieldbus systems , Position of DIL switches can be read externally , Easy assembly
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fieldbus plug with 9-pin Sub-D connection , Variants for different fieldbus systems , Position of DIL switches can be read externally , Easy assembly
Specification
| Width | 20 mm |
|---|---|
| Height | 62 mm |
| Length | 61 mm |
| Protocol | CAN |
| Product Weight | 60 g |
| Field Bus Interface | 2x 5 spring-loaded terminals |
| Note On Fieldbus Interface | BUS In – BUS Out looped through |
| Permissible Cable Diameter | 5, 10 mm |
| Degree Of Protection | IP65, IP67, In assembled state, To IEC 60529 |
| Ambient Temperature | 50 °C |
| Storage Temperature | -20, 70 °C |
| Relative Air Humidity | 95 %, Non-condensing |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Note On Materials | RoHS-compliant |
| Material Housing | PA-reinforced |
| Material Union Nut | Brass |
| Material Screws | Steel |
| Material Seals | NBR |
