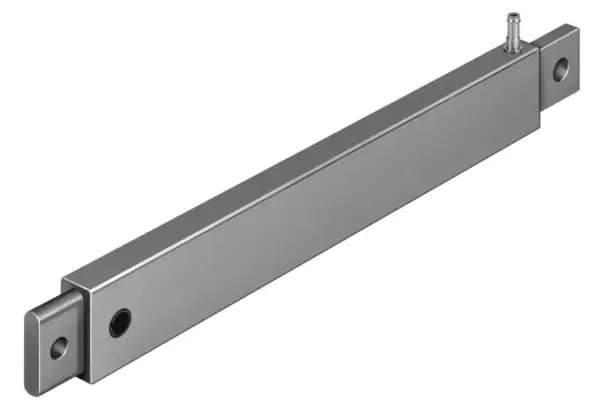

Festo EZH-2,5/9-10-B
Extremely flat design , Protected against rotation thanks to special piston shape , Wide variety of mounting and attachment options , For position sensing
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Extremely flat design , Protected against rotation thanks to special piston shape , Wide variety of mounting and attachment options , For position sensing
Specification
| Stroke | 10 mm |
|---|---|
| Piston Diameter | 6 mm, Equivalent diameter |
| Cushioning | No cushioning |
| Mounting Position | optional |
| Mode Of Operation | Pushing, Single-acting |
| Design | Rectangular piston rod |
| Position Detection | Without |
| Symbol | 00991200 |
| Protection Against Torque/Guide | Rectangular piston rod |
| Operating Pressure | 2.8, 6 bar |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B2-L |
| Ambient Temperature | 60 °C |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Advance Stroke | 10 N |
| Theoretical Min. Spring Return Force | 3 N |
| Theoretical Max. Spring Return Force | 4 N |
| Product Weight | 11 g |
| Type Of Mounting | With transverse bore |
| Pneumatic Connection | Barbed fitting PK-3 |
| Material Cover | Aluminium |
| Material Seals | NBR |
| Material Housing | Aluminium |
| Material Piston Rod | Copper alloy, Nickel-plated |
