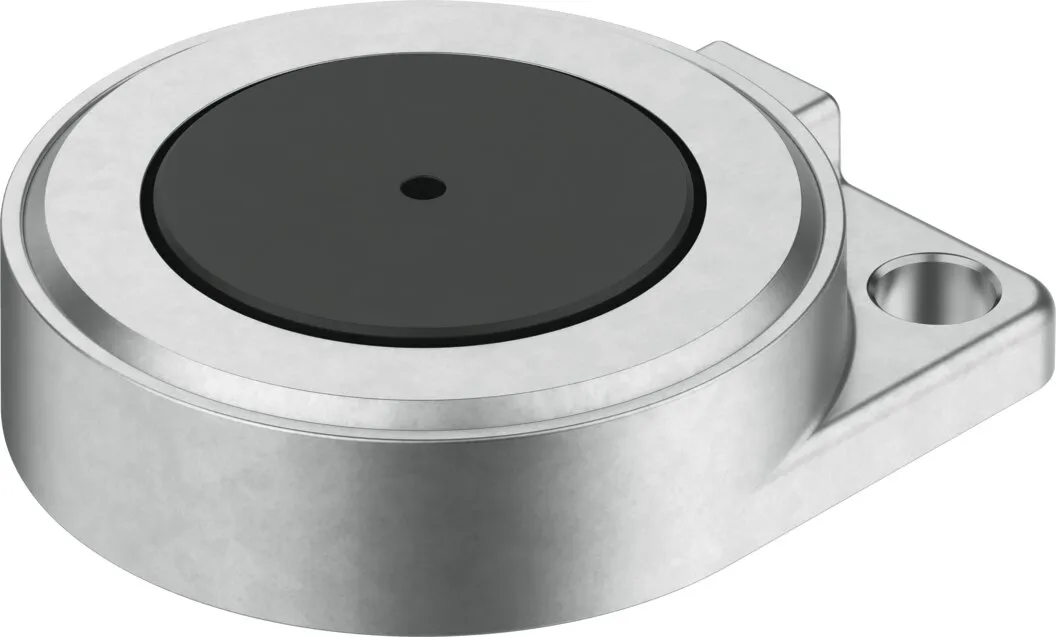

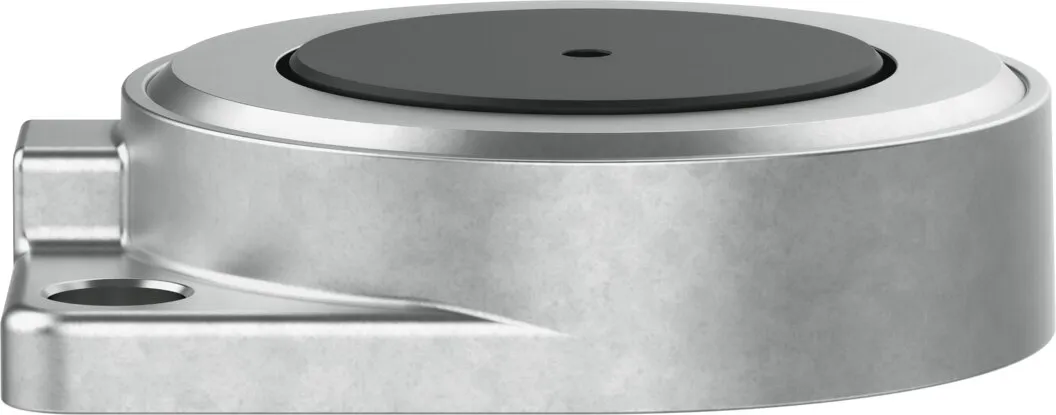

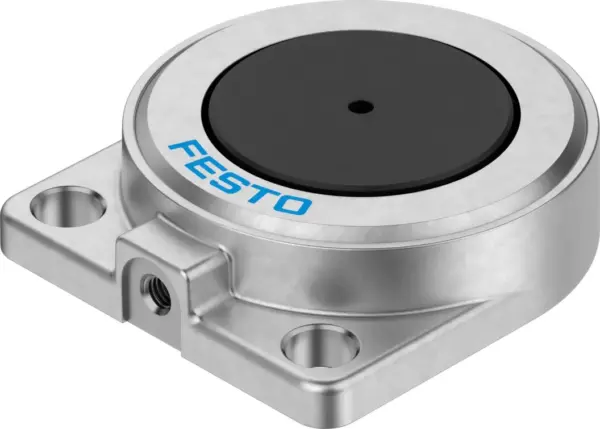

Festo EV-20-4
Compact rodless cylinder with diaphragm , Single-acting, with reset function , Flat design , Hermetically sealed , Pressure plates and foot mounting as accessories
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Compact rodless cylinder with diaphragm , Single-acting, with reset function , Flat design , Hermetically sealed , Pressure plates and foot mounting as accessories
Specification
| Stroke |
4 mm |
|---|---|
| Clamping Surface |
Ø 20 |
| Mounting Position |
optional |
| Mode Of Operation |
Single-acting |
| Symbol |
00991208 |
| Operating Pressure |
87 psi |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:-:-] |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
-10, 40 °C |
| Product Weight |
19 g |
| Type Of Mounting |
With through-hole |
| Pneumatic Connection |
M3 |
| Material Housing |
Die-cast aluminium |
| Material Membrane |
TPE-U(PU) |
