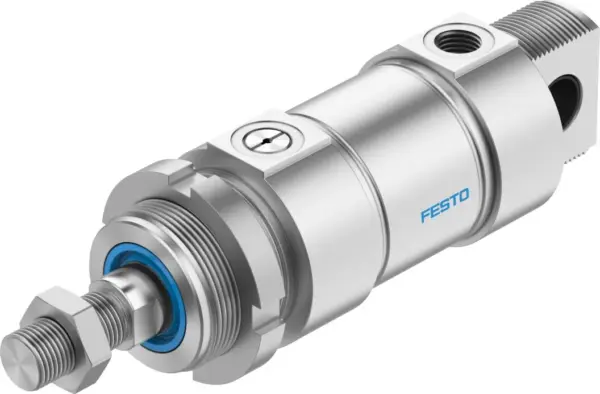

Festo ESNU-50- –
Wide range of variants for customised applications , Good running performance and long service life , Piston rod with female or male thread , For position sensing
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Wide range of variants for customised applications , Good running performance and long service life , Piston rod with female or male thread , For position sensing
Specification
| Stroke |
1, 50 mm |
|---|---|
| Piston Diameter |
50 mm |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting Position |
optional |
| Design |
Piston, Piston rod, Cylinder barrel |
| Position Detection |
Via proximity switch |
| Variants |
Extended male piston rod thread, Piston rod with female thread, Custom thread on the piston rod, Piston rod with male thread shortened at one end, Extended piston rod, Axial supply port, Uniform, slow movement, Low friction, Piston rod at one end |
| Operating Pressure |
1.2, 10 bar |
| Mode Of Operation |
Pushing, Single-acting |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
-20, 120 °C |
| Impact Energy In End Positions |
1 J |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Advance Stroke |
976, 1011 N |
| Moving Mass For Mm Stroke |
413 g |
| Additional Moving Mass Per 10 Mm Stroke |
25 g |
| Basic Weight For Mm Stroke |
1087 g |
| Additional Weight Per 10 Mm Stroke |
40 g |
| Type Of Mounting |
With accessories |
| Pneumatic Connection |
G1/4 |
| Note On Materials |
RoHS-compliant |
| Material Cover |
Wrought aluminium alloy |
| Material Seals |
NBR, TPE-U(PU) |
| Material Piston Rod |
High-alloy steel |
| Material Cylinder Barrel |
High-alloy stainless steel |
