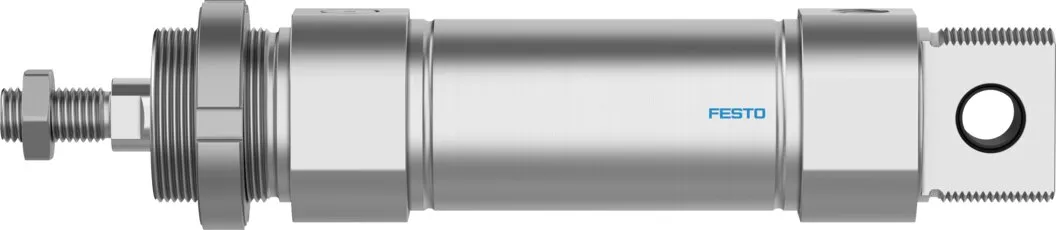

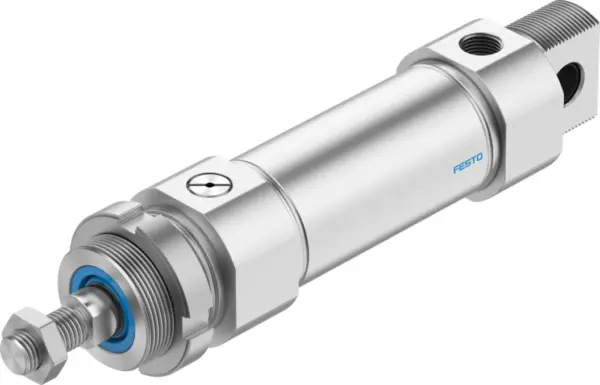

Festo ESNU-40-50-P-A
Wide range of variants for customised applications , Good running performance and long service life , Piston rod with female or male thread , For position sensing
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Wide range of variants for customised applications , Good running performance and long service life , Piston rod with female or male thread , For position sensing
Specification
| Stroke |
50 mm |
|---|---|
| Piston Diameter |
40 mm |
| Piston Rod Thread |
M12x1.25 |
| Cushioning |
Elastic cushioning rings/plates at both ends |
| Mounting Position |
optional |
| Design |
Piston, Piston rod, Cylinder barrel |
| Position Detection |
Via proximity switch |
| Symbol |
00991729 |
| Operating Pressure |
1.2, 10 bar |
| Mode Of Operation |
Pushing, Single-acting |
| Operating Medium |
Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium |
Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc |
2 – Moderate corrosion stress |
| Labs (Pwis) Conformity |
VDMA24364-B1/B2-L |
| Ambient Temperature |
-20, 80 °C |
| Impact Energy In End Positions |
0.7 J |
| Spring Return Force With Retracted Piston Rod |
30 N |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Return Stroke |
30 N |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Advance Stroke |
687.6 N |
| Moving Mass |
310 g |
| Moving Mass For Mm Stroke |
230 g |
| Additional Moving Mass Per 10 Mm Stroke |
16 g |
| Product Weight |
781 g |
| Basic Weight For Mm Stroke |
661 g |
| Additional Weight Per 10 Mm Stroke |
24 g |
| Type Of Mounting |
With accessories |
| Pneumatic Connection |
G1/4 |
| Note On Materials |
RoHS-compliant |
| Material Cover |
Wrought aluminium alloy |
| Material Seals |
NBR, TPE-U(PU) |
| Material Piston Rod |
High-alloy steel |
| Material Cylinder Barrel |
High-alloy stainless steel |
