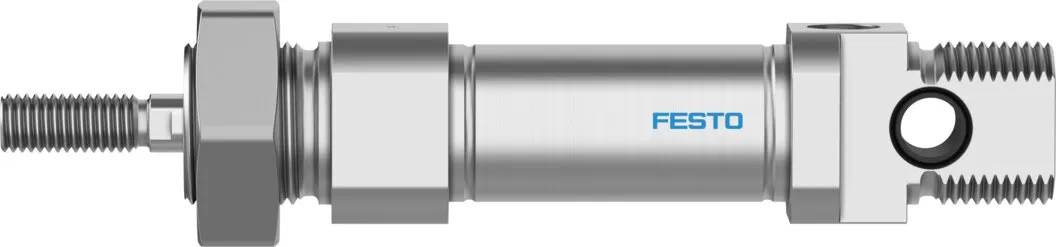

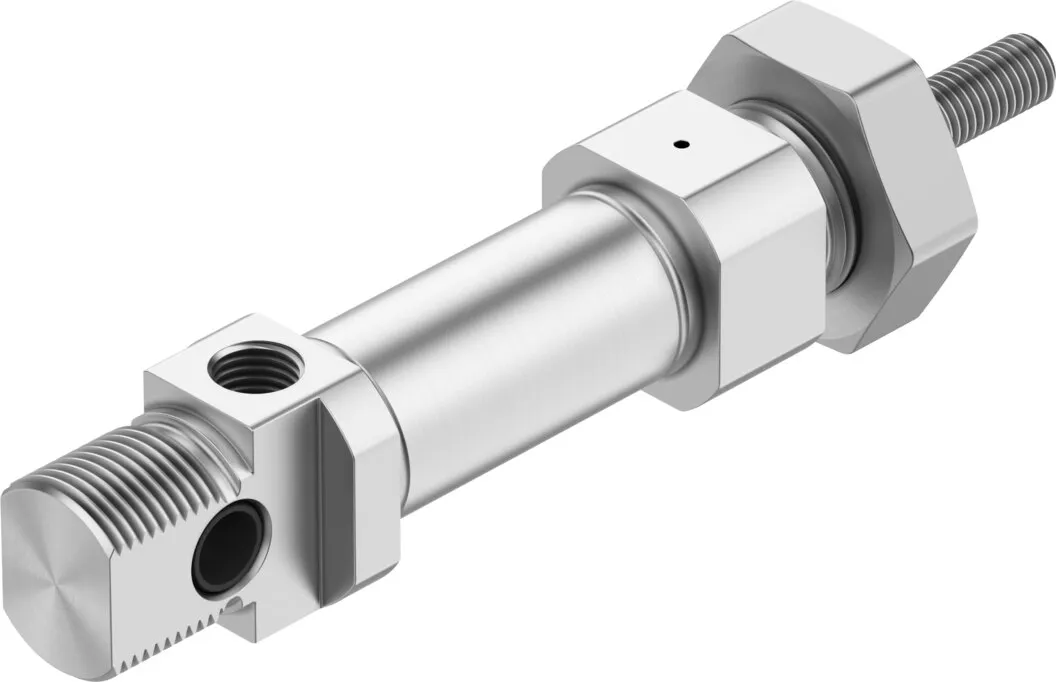

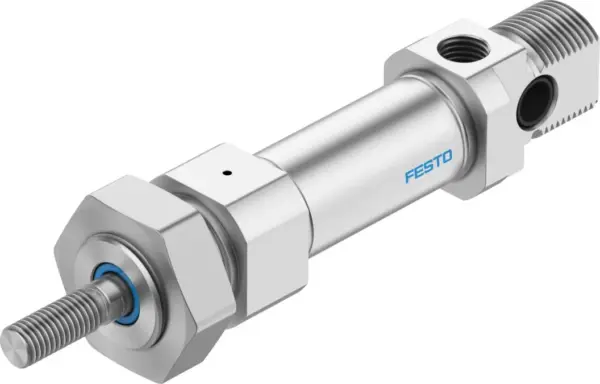

Festo ESNU-20-10-P-A
Wide range of variants for customised applications , Good running performance and long service life , Piston rod with female or male thread , For position sensing
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Wide range of variants for customised applications , Good running performance and long service life , Piston rod with female or male thread , For position sensing
Specification
| Stroke | 10 mm |
|---|---|
| Piston Diameter | 20 mm |
| Piston Rod Thread | M8 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting Position | optional |
| Conforms To Standard | ISO 6432 |
| Piston Rod End | Male thread |
| Design | Piston, Piston rod, Cylinder barrel |
| Position Detection | Via proximity switch |
| Symbol | 00991729 |
| Variants | Piston rod at one end |
| Operating Pressure | 1.2, 10 bar |
| Mode Of Operation | Pushing, Single-acting |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note On Operating And Pilot Medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion Resistance Class Crc | 2 – Moderate corrosion stress |
| Labs (Pwis) Conformity | VDMA24364-B1/B2-L |
| Ambient Temperature | -20, 80 °C |
| Impact Energy In End Positions | 0.2 J |
| Theoretical Force At 0.6 Mpa (6 Bar, 87 Psi), Advance Stroke | 169 N |
| Moving Mass For Mm Stroke | 44 g |
| Additional Moving Mass Per 10 Mm Stroke | 4 g |
| Basic Weight For Mm Stroke | 186.8 g |
| Additional Weight Per 10 Mm Stroke | 7.2 g |
| Type Of Mounting | With accessories |
| Pneumatic Connection | G1/8 |
| Note On Materials | RoHS-compliant |
| Material Cover | Wrought aluminium alloy, Colourless anodised |
| Material Seals | NBR, TPE-U(PU) |
| Material Piston Rod | High-alloy stainless steel |
| Material Cylinder Barrel | High-alloy stainless steel |
